• Amplified outdoor antenna
• VHF & UHF reception
• Noise figure ≦ 4dB
• Omni-directional
• Enjoy 4K UltraHD and crystal full HD 1080p over-the-air TV channels.
• Built-in 4G / 5G LTE filter, LTE600 filter isolation > 20dB (@660Mhz)
• Return loss ≦ -6 dB
• Quick and easy setup, easily to adjust reception angle.
• Supports wall-mounted & pole mounted
• Gloss white housing
• Anti-UV housing, supports IPX5 water resistance.
• Wind resistance, supports windspeed up to 41.5~ 46.1 m/s.
| Description | Low noise amplified digital TV antenna |

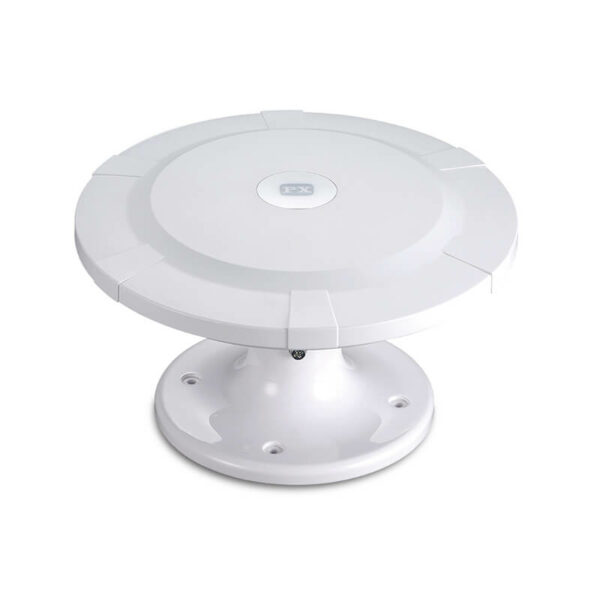

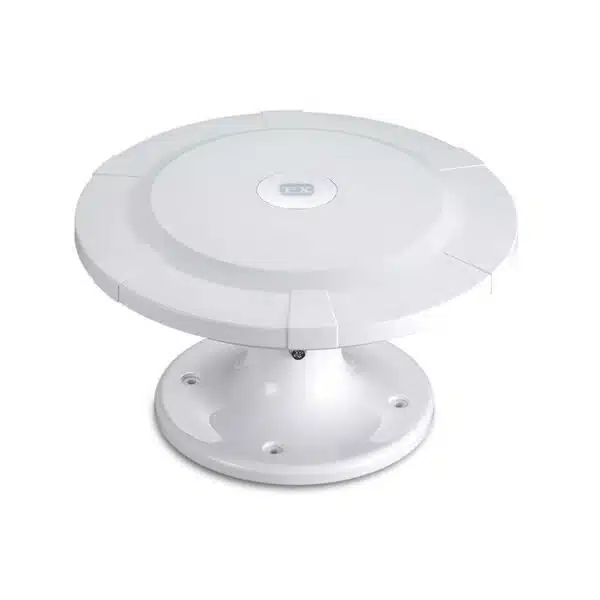

YDA-2000LR digital amplified outdoor TV antenna allows you to receive free-to-air 4K UltraHD and crystal full HD 1080p TV channels. Workable for home, RV and boat use.
Taiwan excellence 20212 award
․Low noise amplifier
․HDTV reception
․Omni-directional reception
․Universal outdoor installation kits
․Anti-UV & water resistant housing
• Amplified outdoor antenna
• VHF & UHF reception
• Noise figure ≦ 4dB
• Omni-directional
• Enjoy 4K UltraHD and crystal full HD 1080p over-the-air TV channels.
• Built-in 4G / 5G LTE filter, LTE600 filter isolation > 20dB (@660Mhz)
• Return loss ≦ -6 dB
• Quick and easy setup, easily to adjust reception angle.

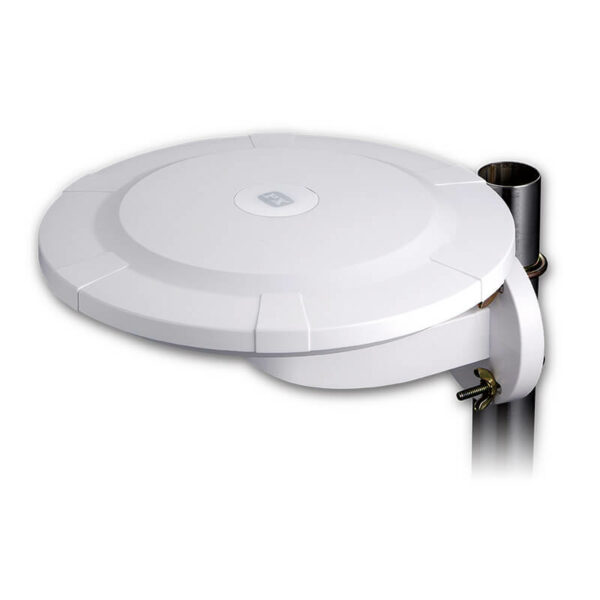

• Supports wall-mounted & pole mounted
• Gloss white housing
• Anti-UV housing, supports IPX5 water resistance.
• Wind resistance, supports windspeed up to 41.5~ 46.1 m/s.

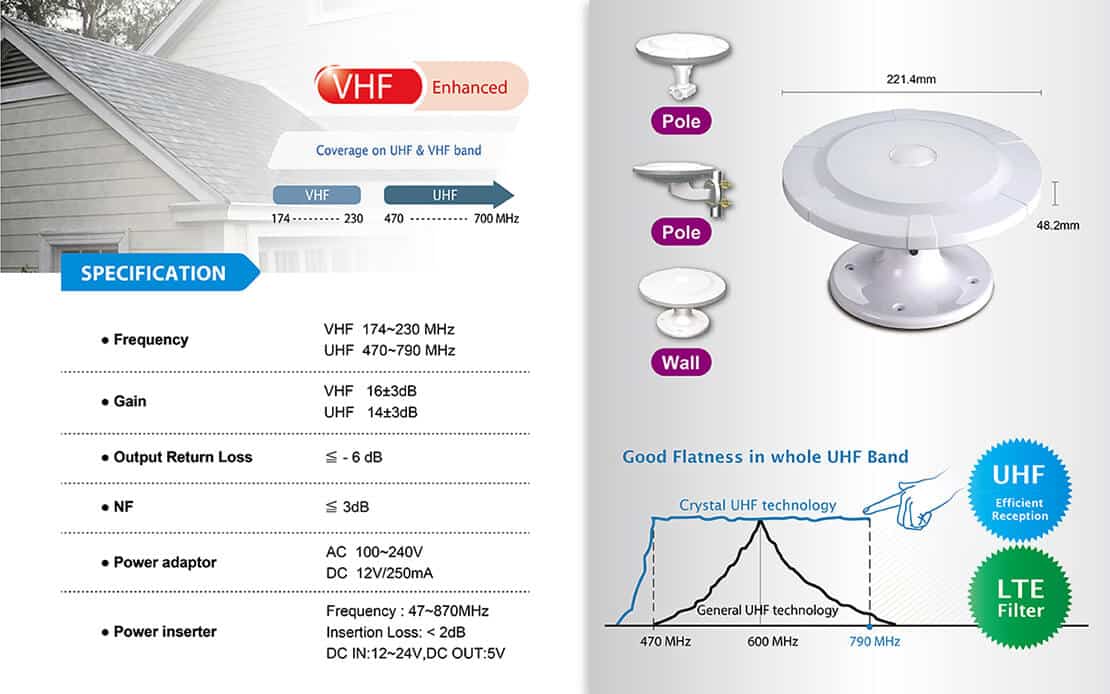

• Frequency Range: VHF 174~230 MHz / UHF 470~790 MHz
• Amplifier gain: VHF 16±3dB / UHF 14±4dB
• Isolation > 15dB ( 870 MHz )
• Output return loss < -6dB
• Noise Figure < 3 dB
• RF output impedance For 75 Ohm TV System
• RF coaxial cable: RG59U 300cm F male to IEC male

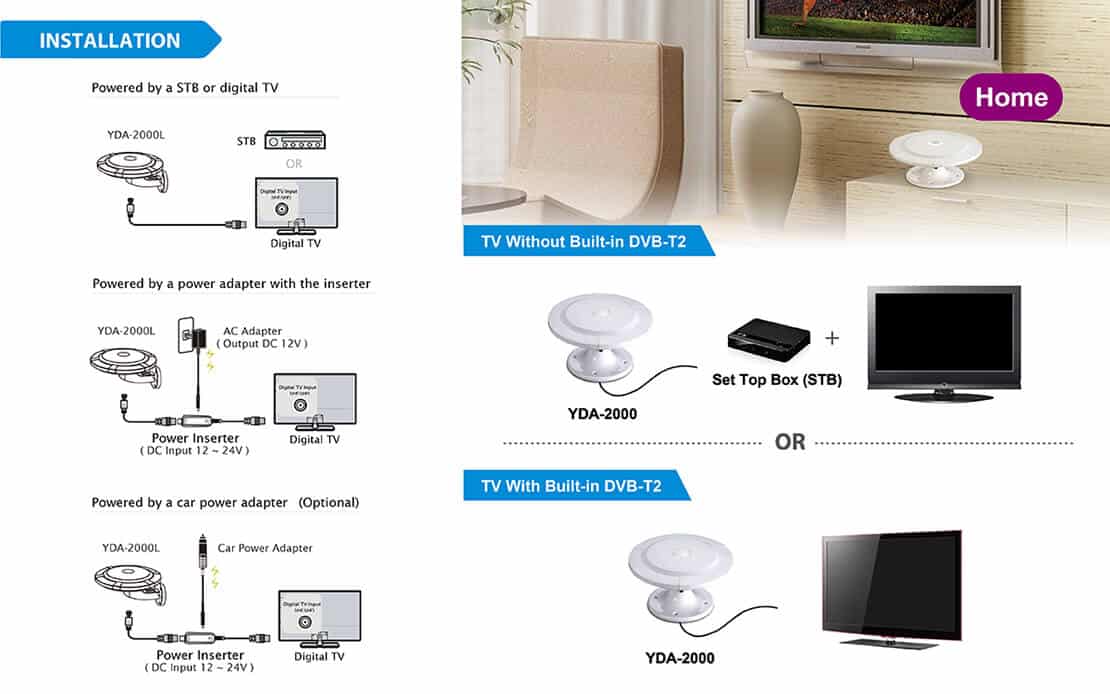

• Power inserter: Frequency range :47~870MHz / Insertion loss: < 2dB / DC input: 12~24V / DC output: 5V
