UDA-3100A | Ultra- thin digital TV antenna | Low noise amplified
• Dual-color amplified paper-thin indoor antenna
• VHF & UHF reception
• Noise figure ≦ 3dB
• Multi-directional
• Enjoy 4K UltraHD and crystal full HD 1080P over-the-air TV channels.
• Built-in 4G / 5G LTE filter, LTE600 filter isolation: > 20dB (@660Mhz)
• Return loss ≦ -6 dB
• Quick and easy setup
• Supports table placement and wall-mounted
Overview
| Description | Low noise amplified digital TV antenna |

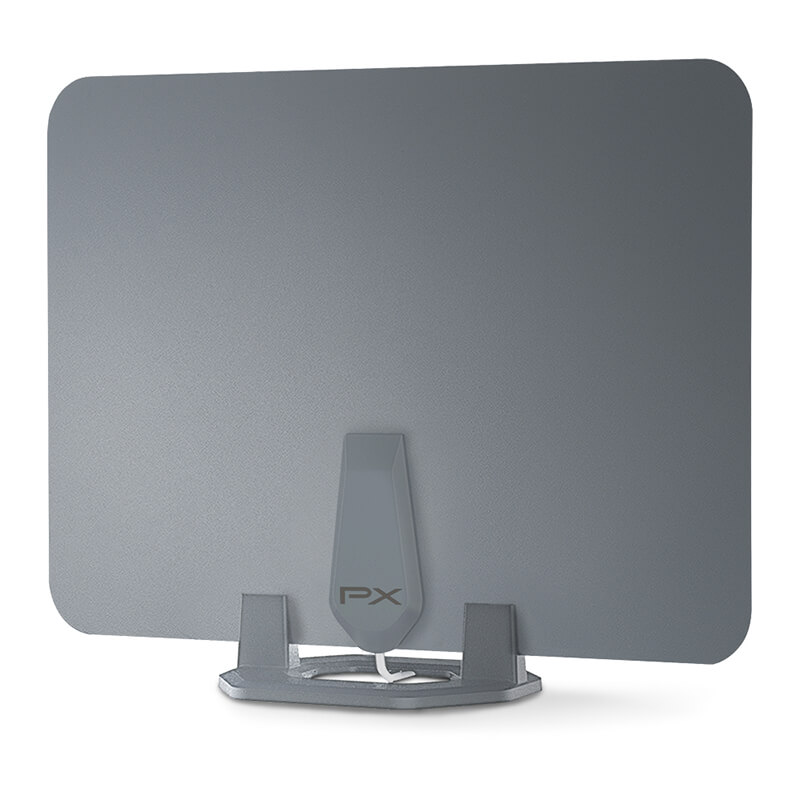

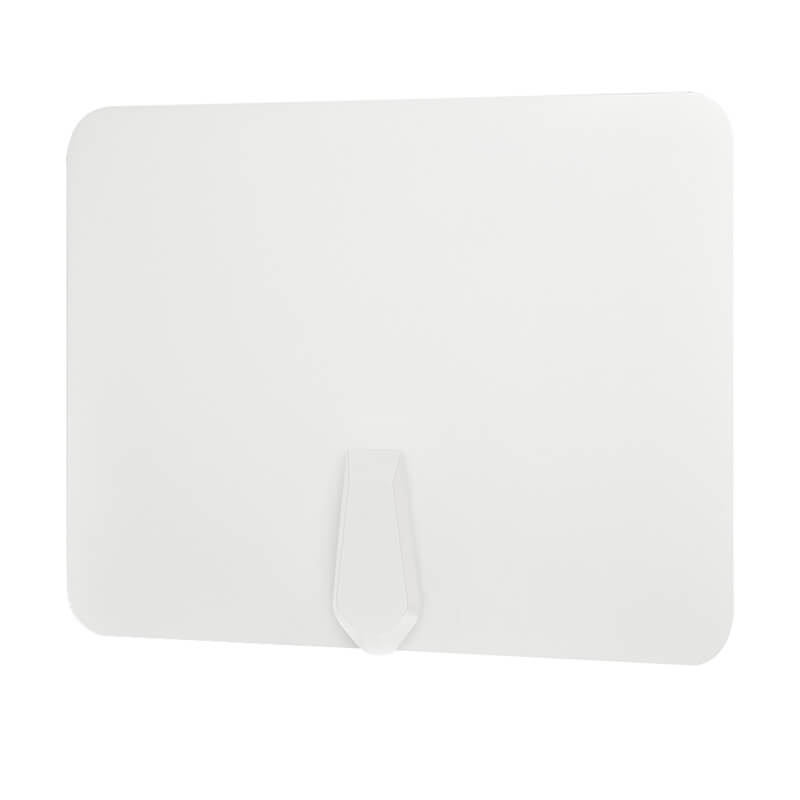

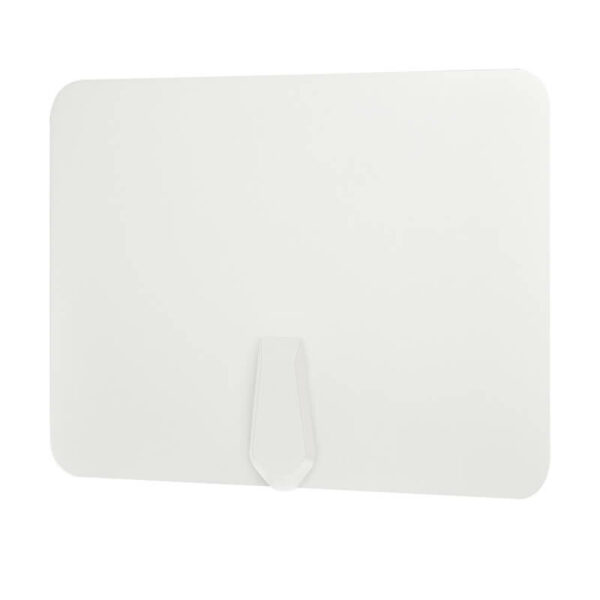

UDA-3100A paper-thin digital amplified indoor tv antenna allows you to receive free-to-air 4K UltraHD and crystal full HD 1080p TV channels. Working range up to 40 miles.
․Compact and stylish design
․Slim & flexible
․USB powered
Features
• Dual-color amplified paper-thin indoor antenna
• VHF & UHF reception
• Noise figure ≦ 3dB
• Multi-directional
• Enjoy 4K UltraHD and crystal full HD 1080P over-the-air TV channels.
• Built-in 4G / 5G LTE filter, LTE600 filter isolation: > 20dB (@660Mhz)
• Return loss ≦ -6 dB
• Quick and easy setup
• Supports table placement and wall-mounted

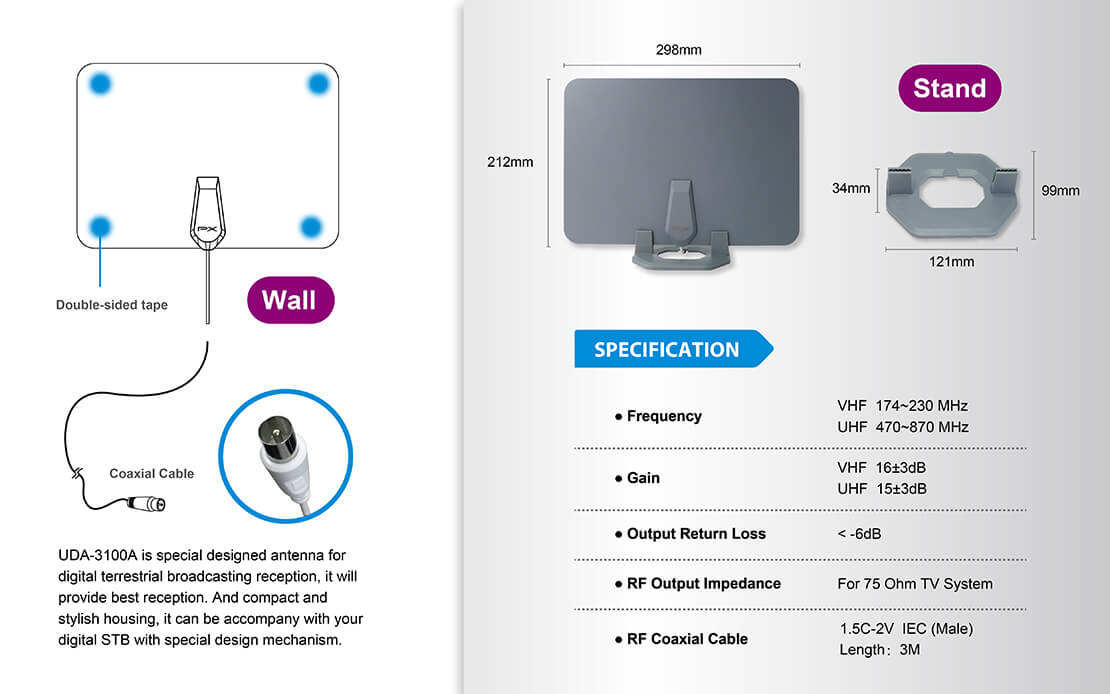

Specification
• Frequency range: VHF 174~230MHz / UHF 470~870MHz
• Amplifier gain: VHF 16±3dB, UHF 15±3dB
• Output return loss < -6dB
• Noise figure < 3dB
• RF output impedance: For 75 Ohm TV system
• RF coaxial cable 1.5C-2V / 10ft IEC male

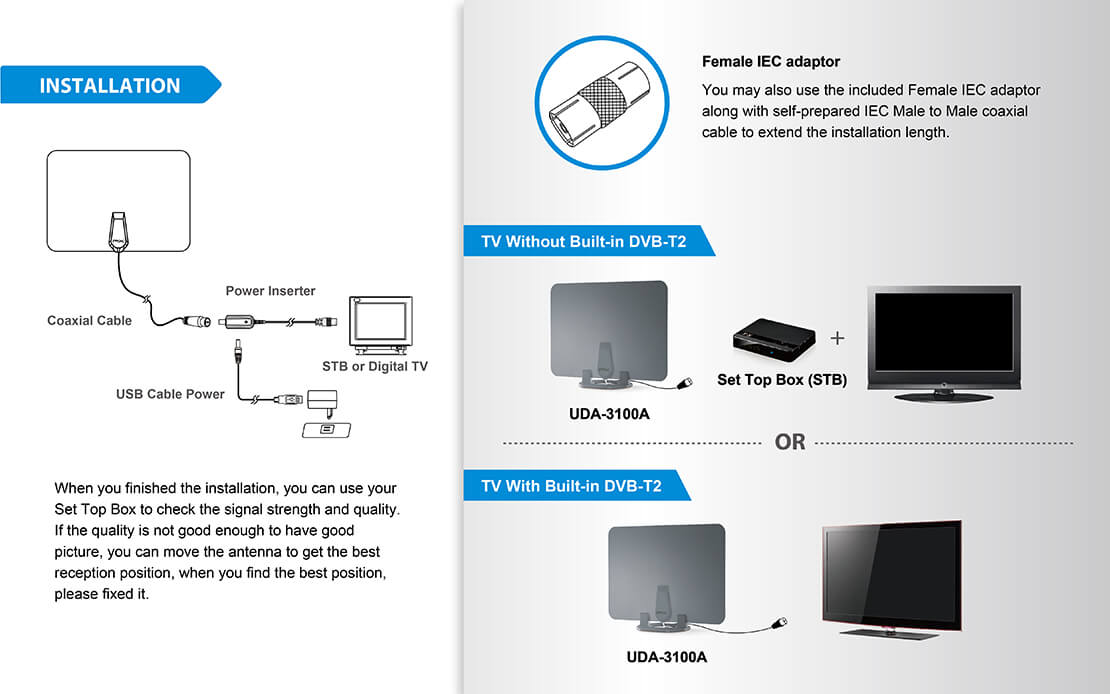

• Power inserter: Frequency range :47~870MHz / Insertion loss < 2.5dB / DC input: 5V / DC output: 5V
