HDA-5000 | Digital TV antenna | Super low noise amplified
• Amplified outdoor antenna
• VHF & UHF reception
• Noise Figure ≦ 4dB
• Multi-directional
• Enjoy 4K UltraHD and crystal full HD 1080p over-the-air TV channels.
• Built-in 4G / 5G LTE filter, LTE600 filter isolation > 20dB (@660Mhz)
• Return loss ≦ -6 dB
• Quick and easy setup, easily to adjust reception angle.
• Supports wall-mounted & pole mounted
• Gloss white housing
• Anti-UV housing, supports IPX5 water resistance.
• Wind resistance, supports windspeed up to 41.5~ 46.1 m/s.
Overview
| Description | Super low noise amplified digital TV antenna |

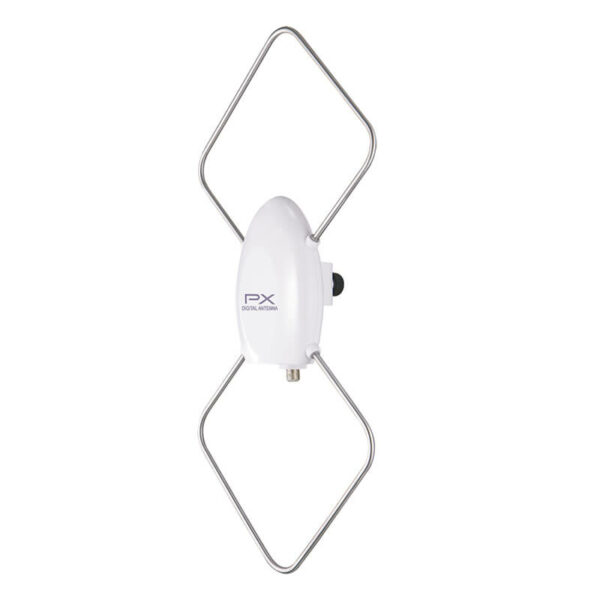

HDA-5000 dual-quad digital amplified outdoor TV antenna allows you to receive free-to-air 4K UltraHD and crystal full HD 1080p TV channels. Working range up to 50 miles.
Features
• Amplified outdoor antenna
• VHF & UHF reception
• Noise Figure ≦ 4dB
• Multi-directional
• Enjoy 4K UltraHD and crystal full HD 1080p over-the-air TV channels.
• Built-in 4G / 5G LTE filter, LTE600 filter isolation > 20dB (@660Mhz)
• Return loss ≦ -6 dB
• Quick and easy setup, easily to adjust reception angle.

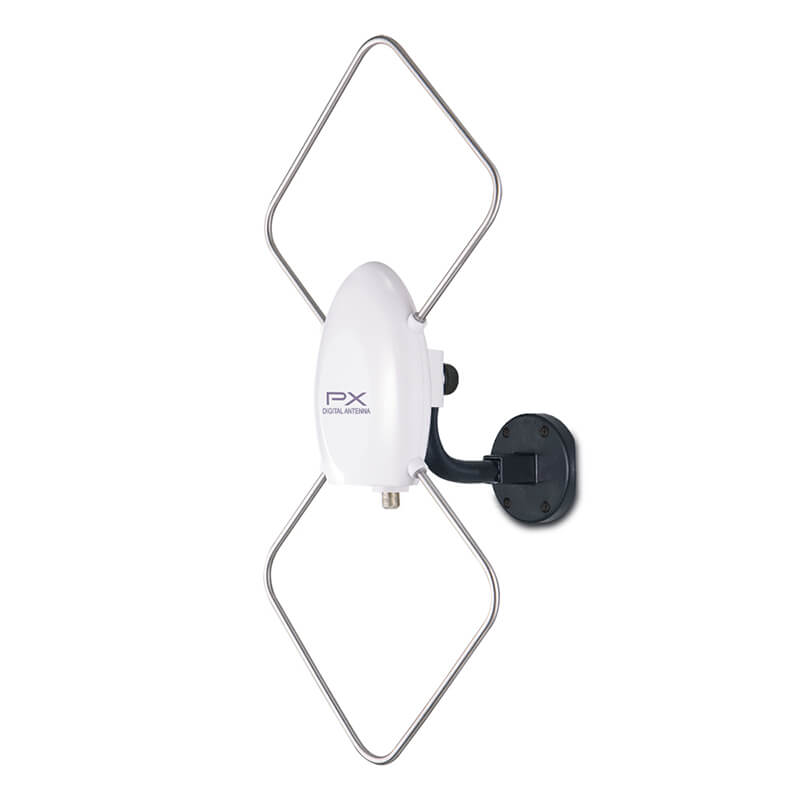

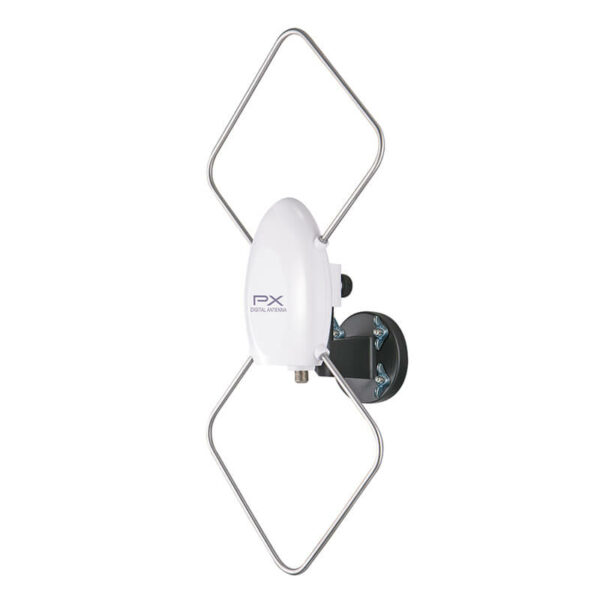

• Supports wall-mounted & pole mounted
• Gloss white housing
• Anti-UV housing, supports IPX5 water resistance.
• Wind resistance, supports windspeed up to 41.5~ 46.1 m/s.

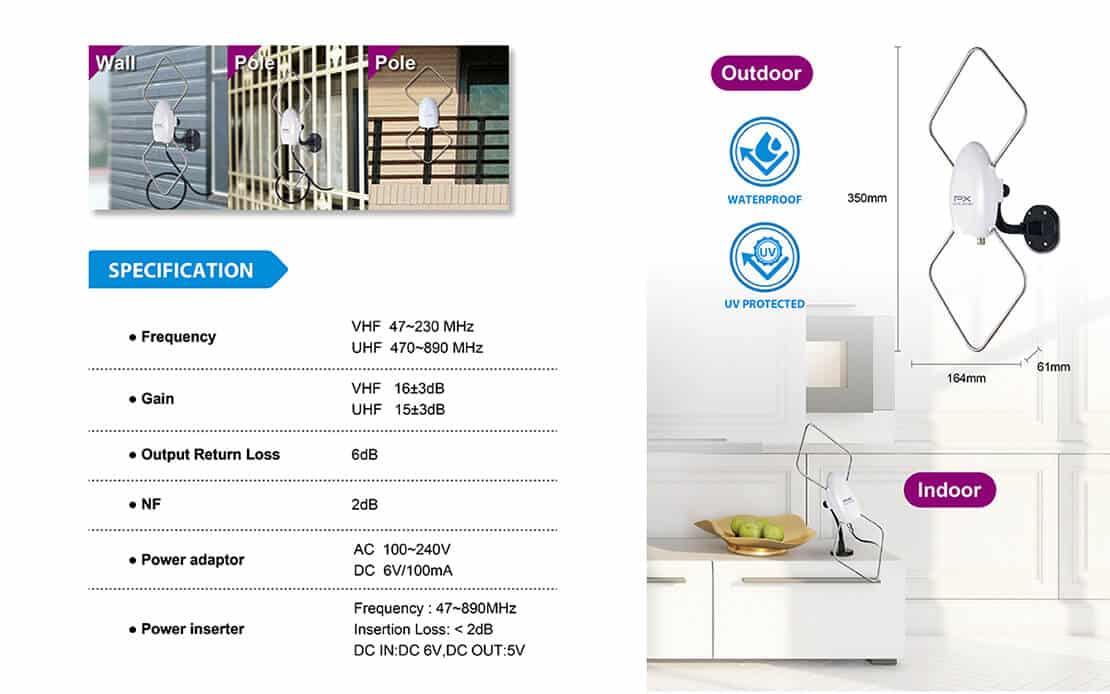

Specification
• Frequency range: VHF 47~230 MHz; UHF 470~890MHz
• Amplifier gain: VHF 20+/- 3dB, UHF 20+/- 3dB
• Output return loss ≦ -6 dB
• Noise figure ≦ 4dB
• Adaptor: AC120V DC9-12V/200mA

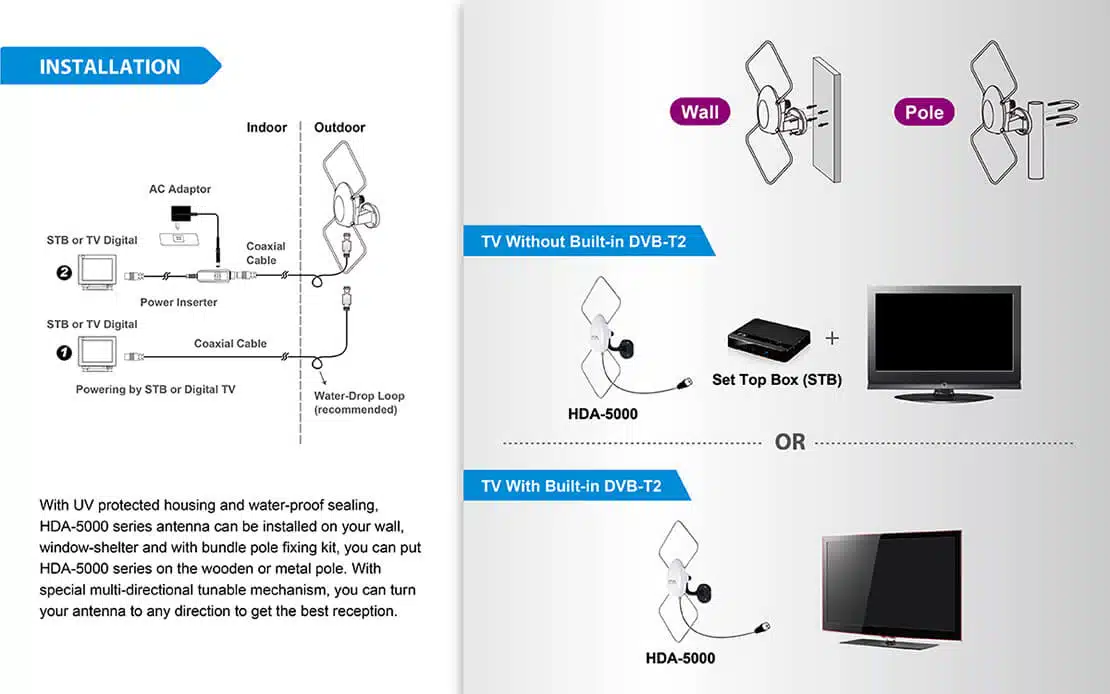

• Power inserter: Frequency range: 47~890MHz / Insertion Loss ≦ 2dB / DC input: 9~12V / DC output: 5V
• RF output Impedance: For 75 Ohm TV system
• RF coaxial cable: RG-6U 3M F male to F male
