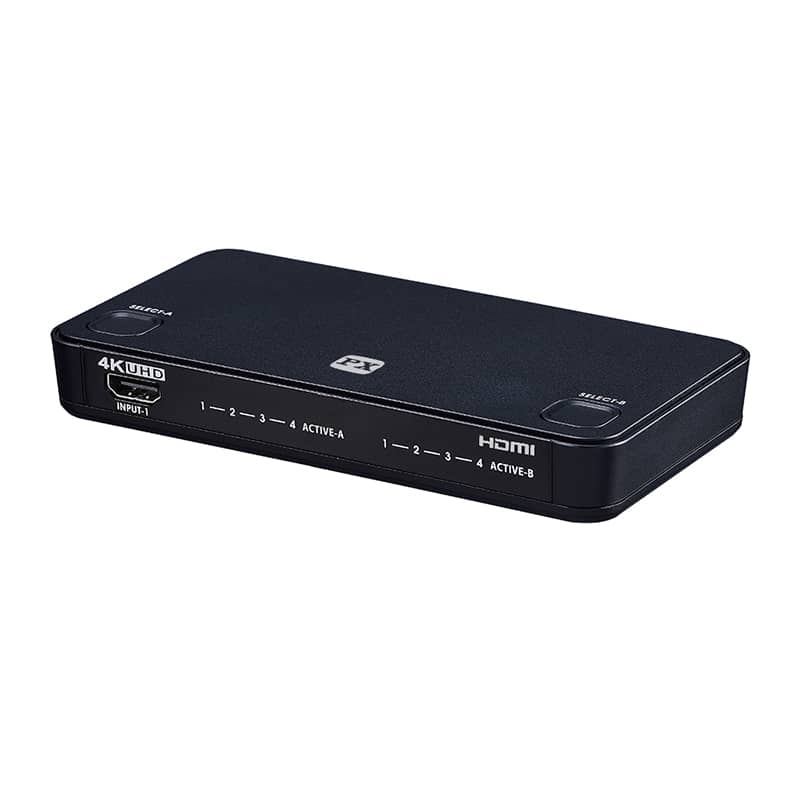

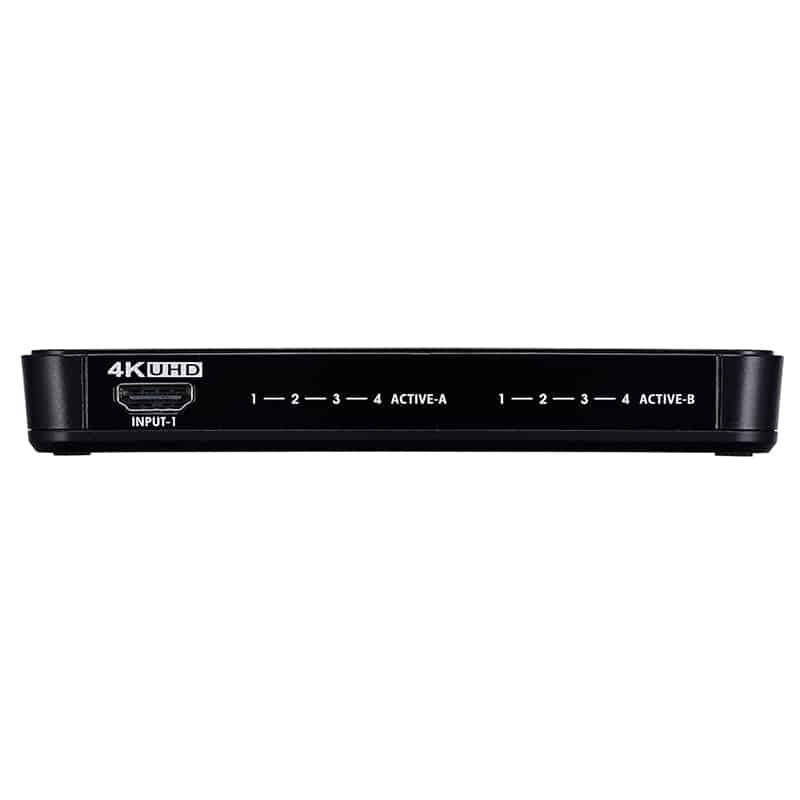

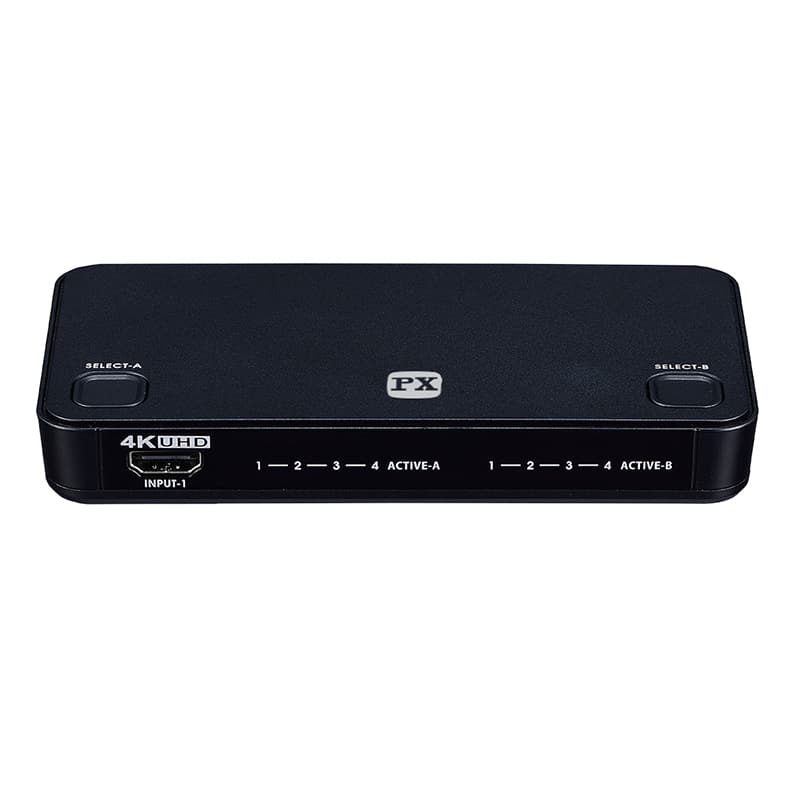

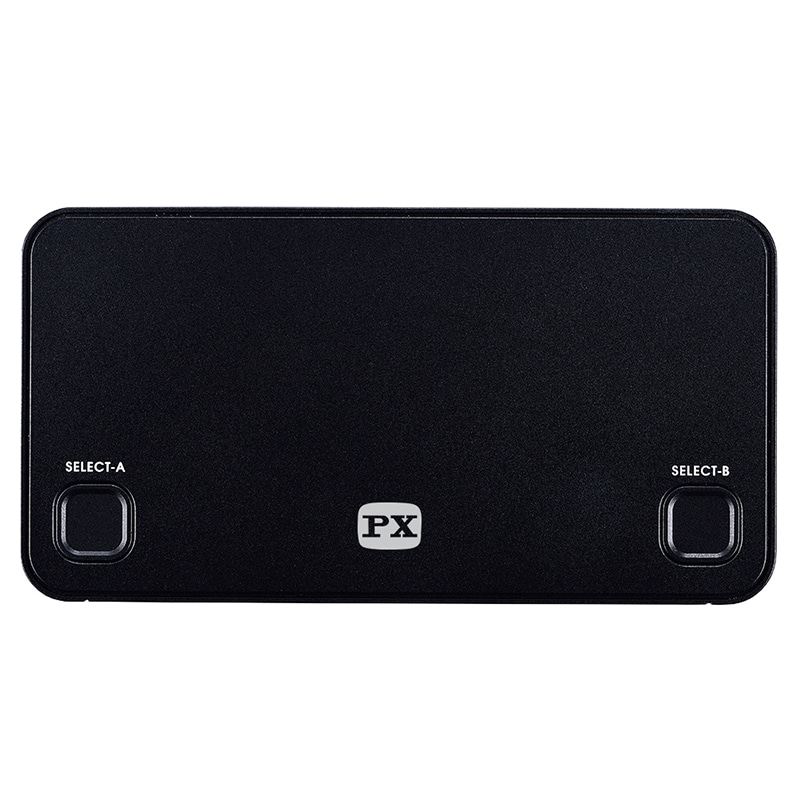

HD2-420ARC | 4K matrix | 4 in 2 out | ARC
• Supports up to 4K60Hz resolution with backward compatible with lower resolution and HDR.
• Supports ARC pass through
• Pixel clock rate up to 600MHz
• DTS HD®, Dolby® TrueHD digital audio compliant

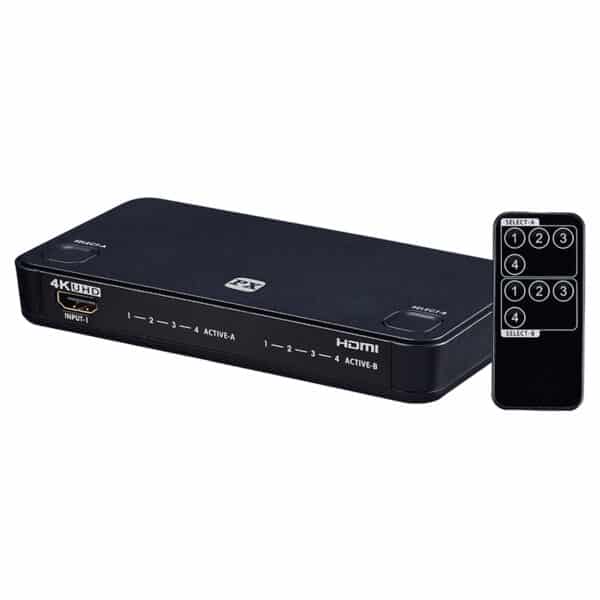

• IR remote control

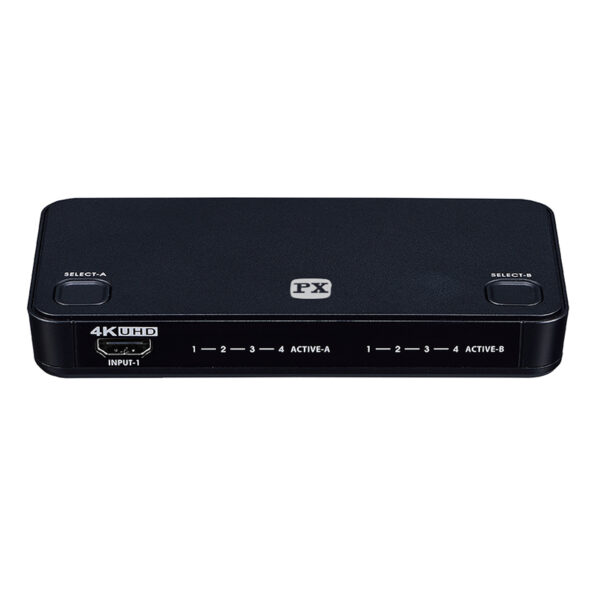

• Manual switch
• 4 inputs and 2 outputs HDMI matrix switch
• Each output can select different sources from one of the 4 inputs.
• Both outputs can select from the same input source.
• HDMI 2.0 standard / HDCP 2.2 compliant
Overview
| Description | HDMI 4K60Hz HDMI matrix 4 inputs 2 outputs 18G UltraHD with ARC & HDR supported – IR remote control |
HDMI 4K60Hz HDMI matrix 4 inputs 2 outputs
18G UltraHD with ARC & HDR supported – IR remote control
This 4×2 HDMI matrix allows you to route up four 18 Gbps HDMI input signals to any of two 18 Gbps HDMI outputs displays. You can seamlessly switch between them by using the remote.
Solutions suitable for theater, sports bar offices, schools, conference rooms, shopping malls, hotels, museums or even gaming setup with 2 consoles and 2 screen applications, or share HD sources to 2 different rooms.

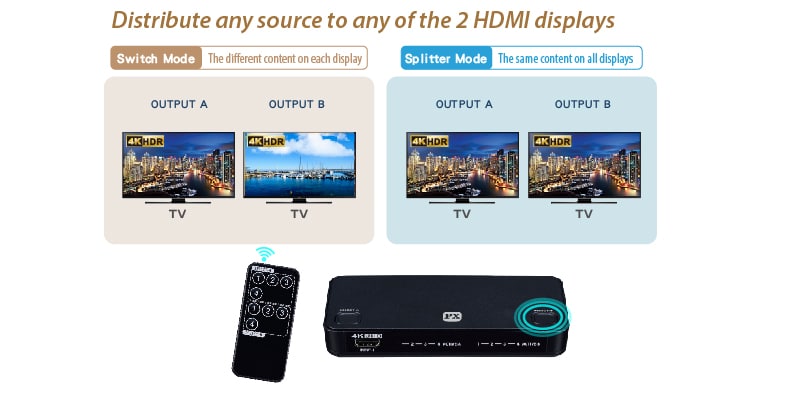

With the splitter and matrix function, users can share the same source device to 2 HDTVs (or projectors) ; also each HDTV (or projector) can be set to use one of the input source devices independently.
It also supports audio return channel (ARC) audio EDID features, which forces the audio output to the output display.
*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Features
• Supports up to 4K60Hz resolution with backward compatible with lower resolution and HDR.
• Supports ARC pass through
• Pixel clock rate up to 600MHz
• DTS HD®, Dolby® TrueHD digital audio compliant
• IR remote control
• Manual switch
• 4 inputs and 2 outputs HDMI matrix switch
• Each output can select different sources from one of the 4 inputs.
• Both outputs can select from the same input source.
• HDMI 2.0 standard / HDCP 2.2 compliant
Specification

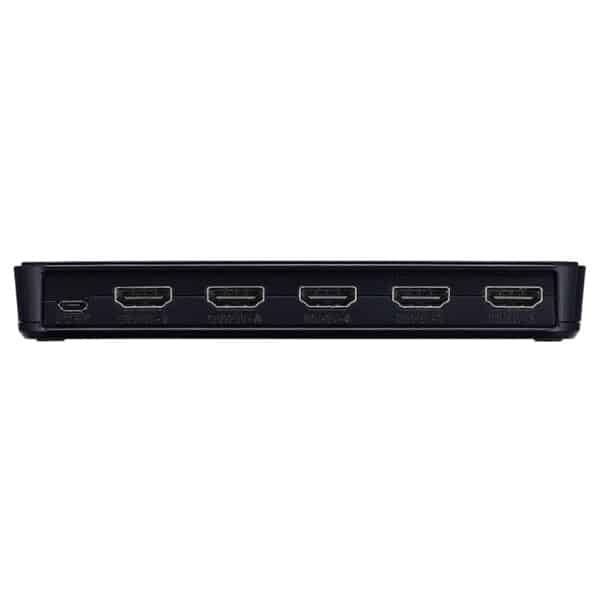

• Input: HDMI x 4
• Output: HDMI x 2 (matrix)
• HDMI 2.0 / HDCP 2.2
• Pixel clock rate up to 600MHz
• Video data rate: 18.0Gbps
• Video resolutions supported: 4K60Hz
Color: Black
Material: Plastic
Dimensions: 150×74.5×20.5 (mm)

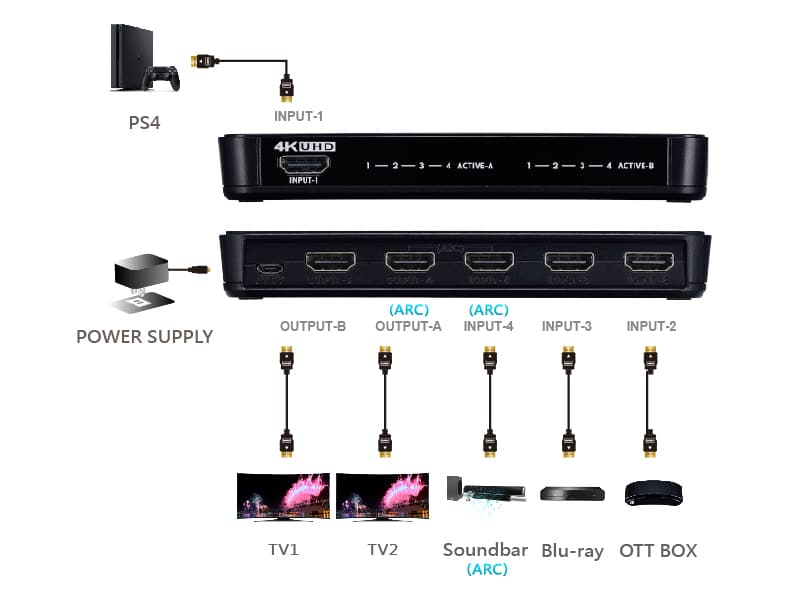

Diagram
