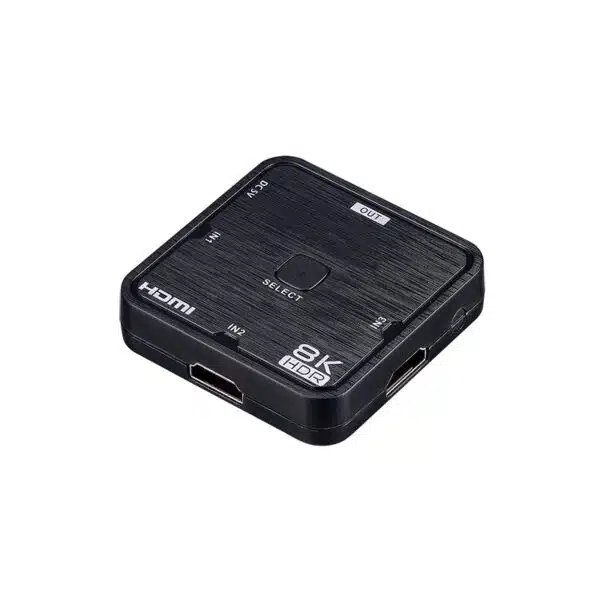

HD2-314X | HDMI 2.1 (8K) switch – 3 inputs 1 output
•Support HDMI 2.1 (8K) high resolution
•Saving Power (20mA), No external power supply required
• Support Video Data Rate 48Gbps
•Fastest video output time 3~4 seconds when switching to another input
•Support 8K@60Hz / 4K@240Hz, 165Hz, 144Hz, 120Hz, 60Hz high frame rate
•Support Dynamic HDR
•Support two power supply:Power by HDMI(source) or External USB-C power
•Support Dolby Atmos by HDMI
•Support CEC(pass through)
•HDCP 2.3 compliant
•Plug and play, no audio and video delay

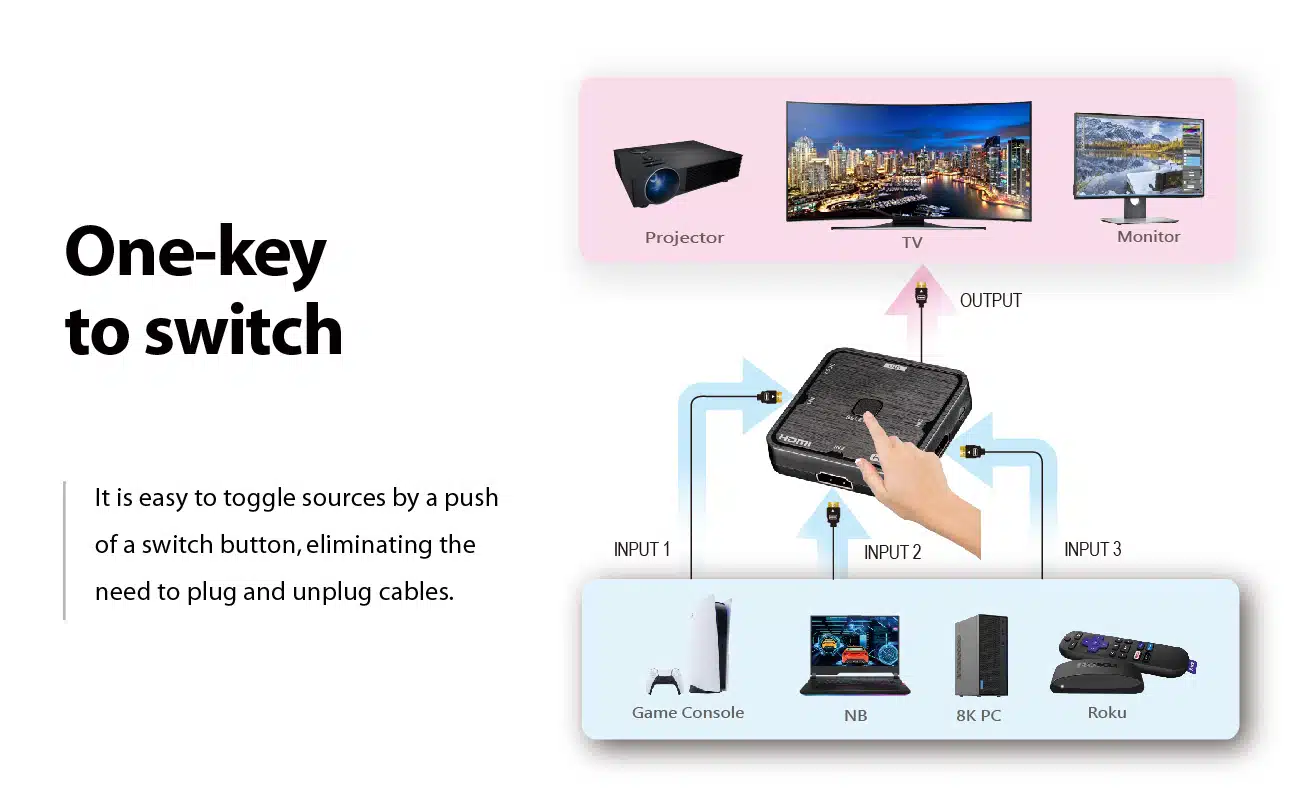

•Manual control
Overview
| Description | HDMI 2.1 (8K) switch – 3 inputs 1 output |

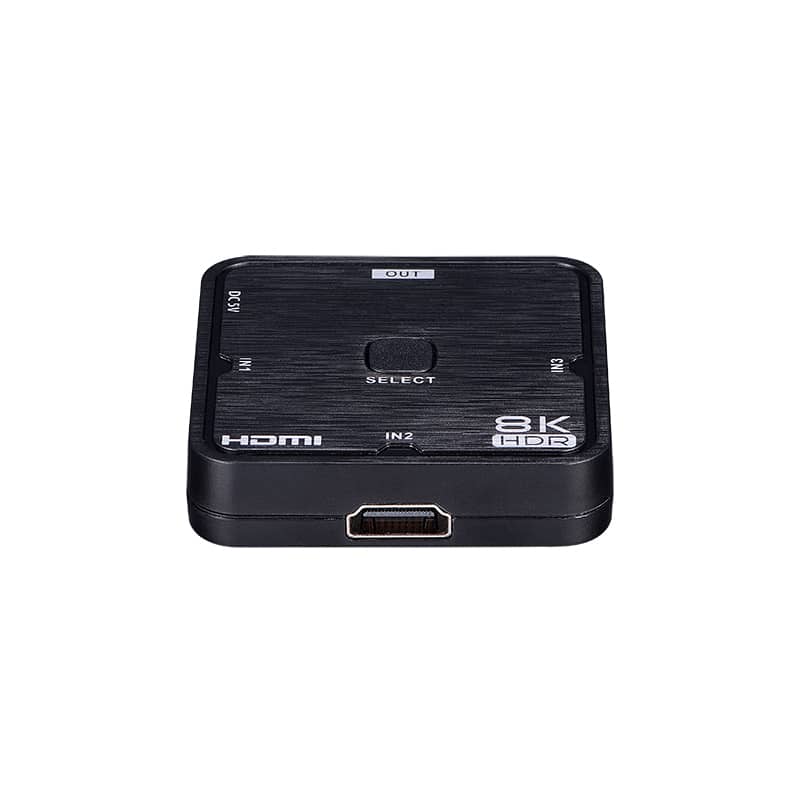

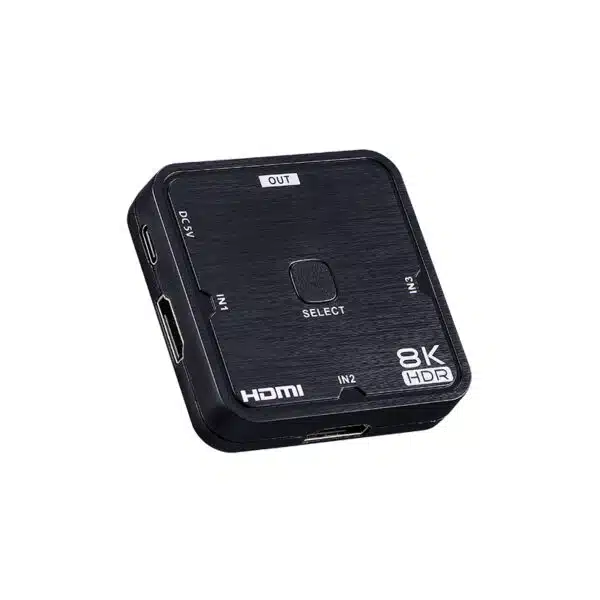

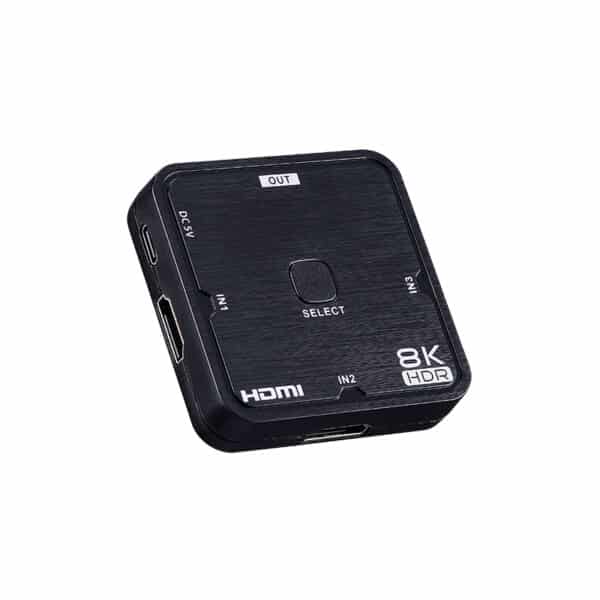

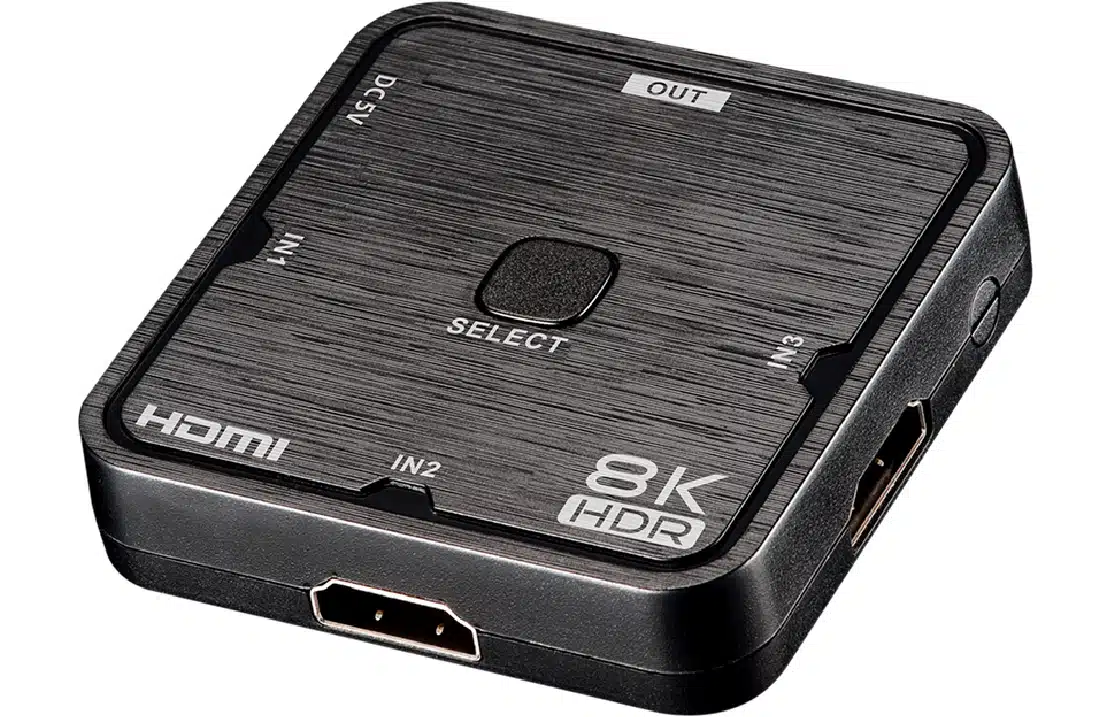

HD2-314X HDMI 2.1 (8K) switch – 3 inputs 1 output
The HD2-314X is a high-performance HDMI 2.1 8K switch, supporting resolutions up to 8K@60Hz, 4K@240Hz, 4K@165Hz, 4K@144Hz, 4K@120Hz, and 1080p@240Hz,
making it perfect for E-sports and gaming monitors. Its compact design facilitates easy integration into any gaming setup. The switcher quickly swaps inputs in just 3-4 seconds, operates with low power consumption, and does not require an external power supply.

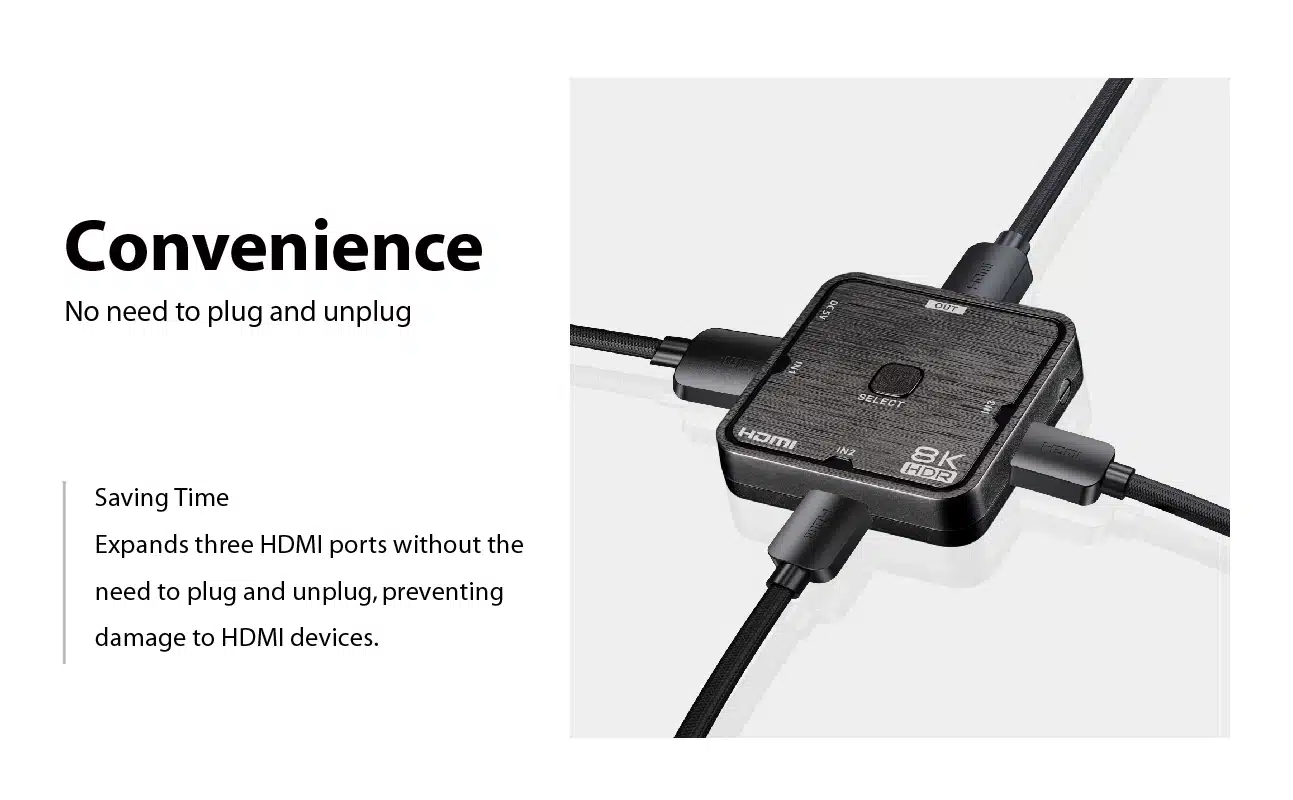

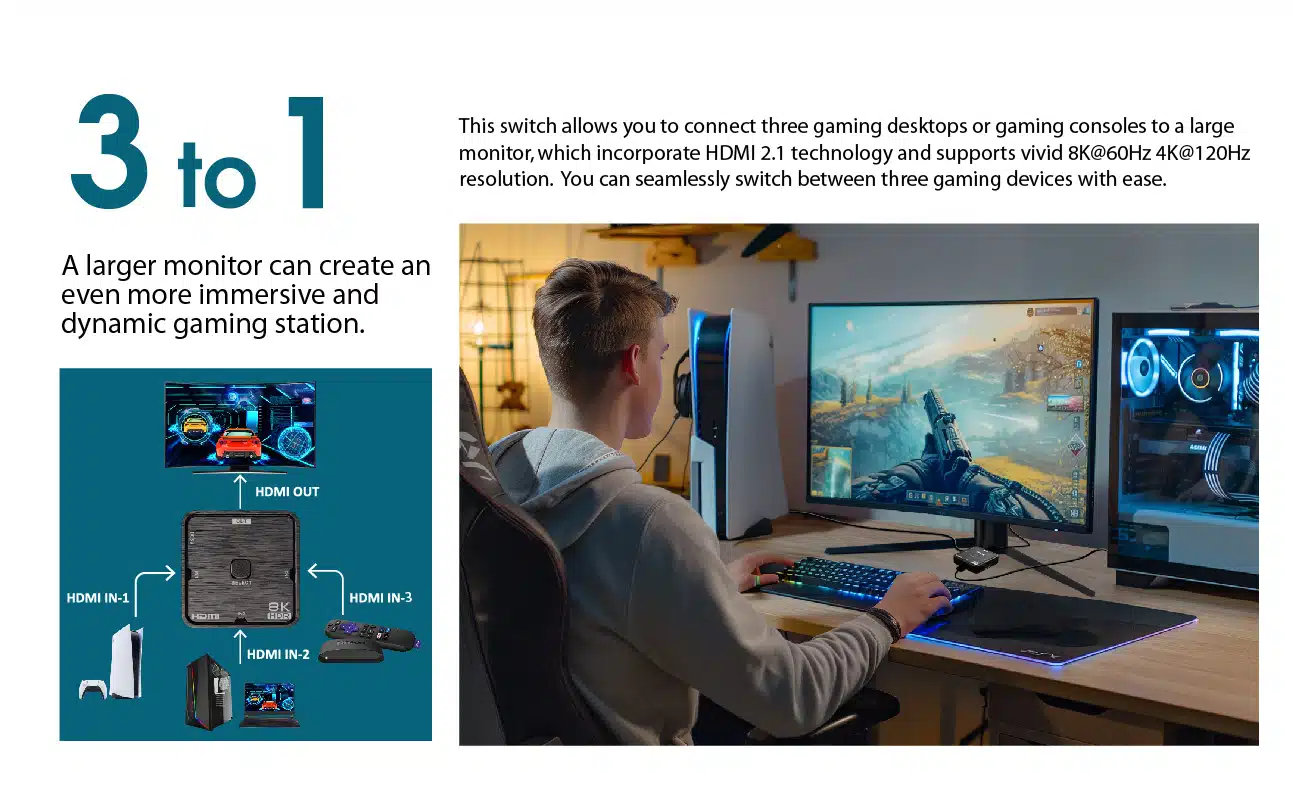

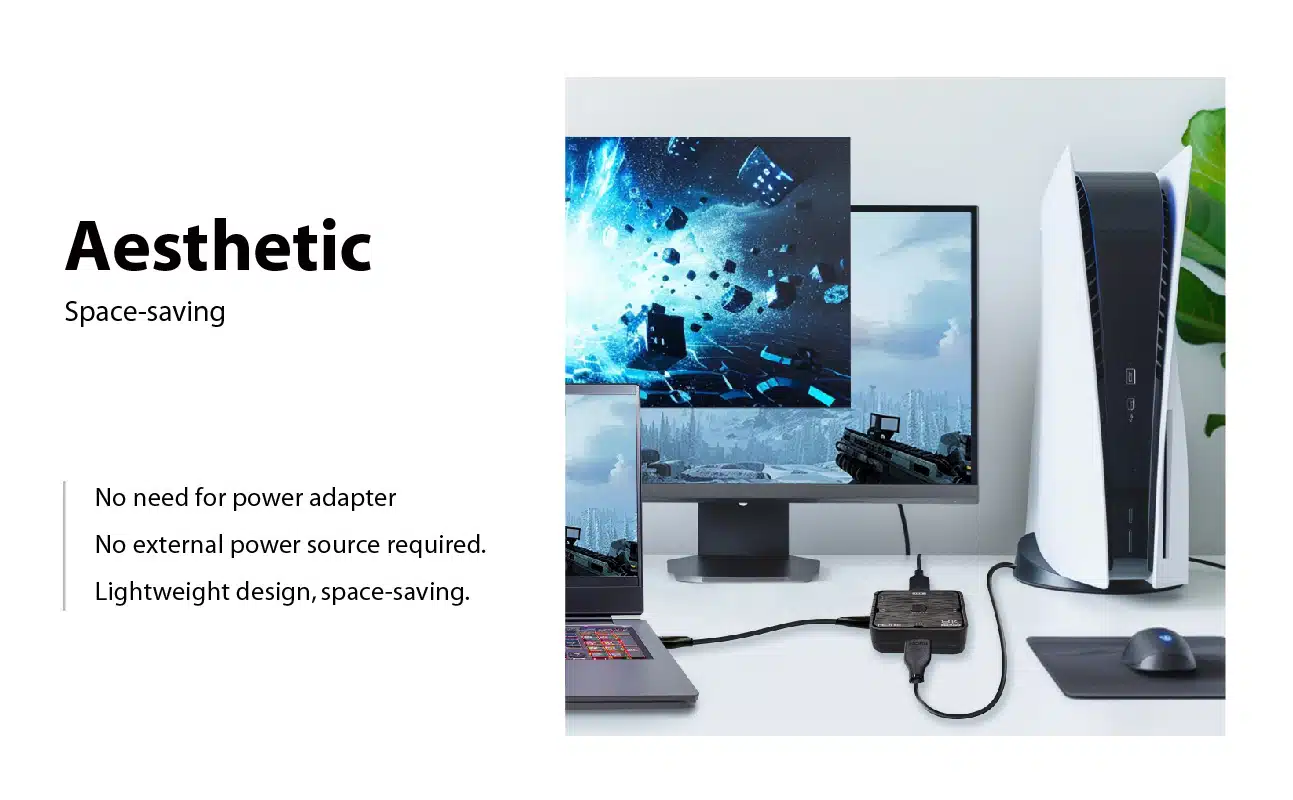

HD2-314X switch can expand HDMI input of your HDMI display device up to 3 HDMI inputs. The switch offers single cable connection solution to TV; instead of connecting 3 HDMI cables to your UHD TV.
It works for various HDMI devices, with standard HDMI interface. Input: PC, laptops, PS4, PS5, Roku Express, Amazon Fire TV Stick, Blu-ray DVD, etc; output: Ultra HD TVs, Full HD TVs, projectors, monitors and more.
With this HDMI 2.1 (8K) switch, you can have an unprecedentedly enjoyable gaming experience.
*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Features
•Support HDMI 2.1 (8K) high resolution
•Saving Power (20mA), No external power supply required
•Support Video Data Rate 48Gbps
•Fastest video output time 3~4 seconds when switching to another input
•Support 8K@60Hz / 4K@240Hz, 165Hz, 144Hz, 120Hz, 60Hz high frame rate
•Support Dynamic HDR
•Support two power supply:Power by HDMI(source) or External USB-C power
•Support Dolby Atmos by HDMI
•Support CEC(pass through)
•HDCP 2.3 compliant
•Plug and play, no audio and video delay
•Manual control
Specification
• Input: HDMI female x 3
• Output: HDMI female x 1
• HDMI 2.1 / HDCP 2.3
• Video data rate: 48.0Gbps
• Video resolutions supported:
8K@60Hz/4K@240Hz(DSC) / 4K@165Hz / 4K@144Hz / 4K@120Hz / 4K@60Hz
1080p@240Hz / 1080p@165Hz / 1080p@144Hz / 1080p@120Hz / 1080p@60Hz
Color: Black
Material: Plastic
Dimensions: 61.5 x 61.5 x 15.1 (mm)

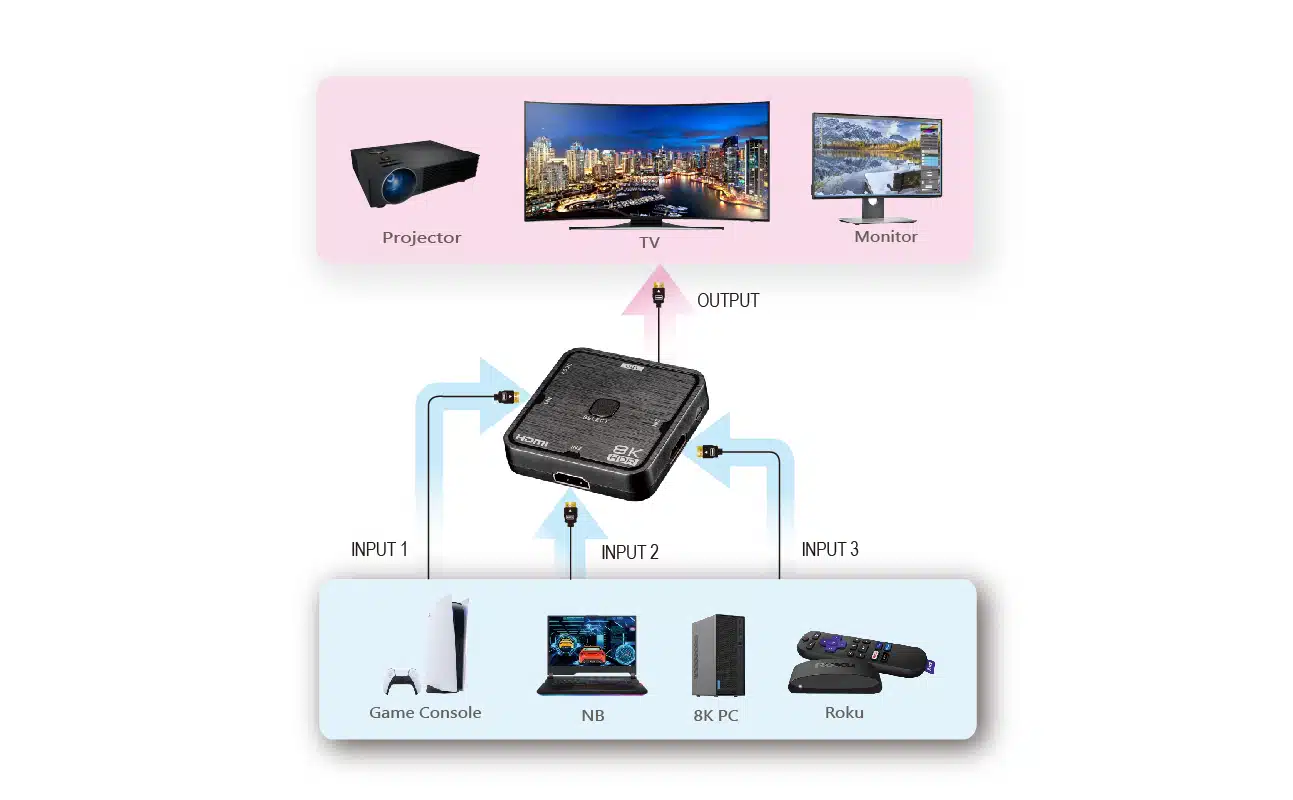

Diagram
