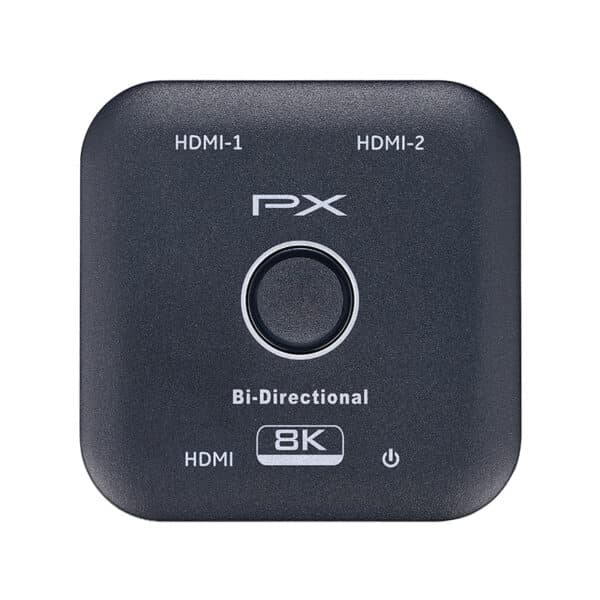

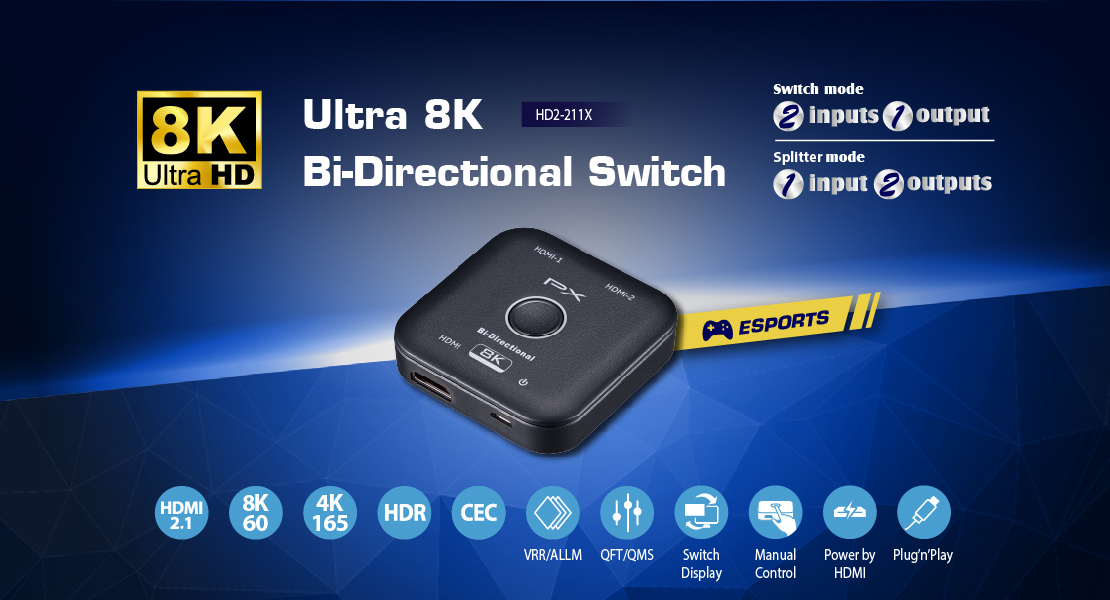

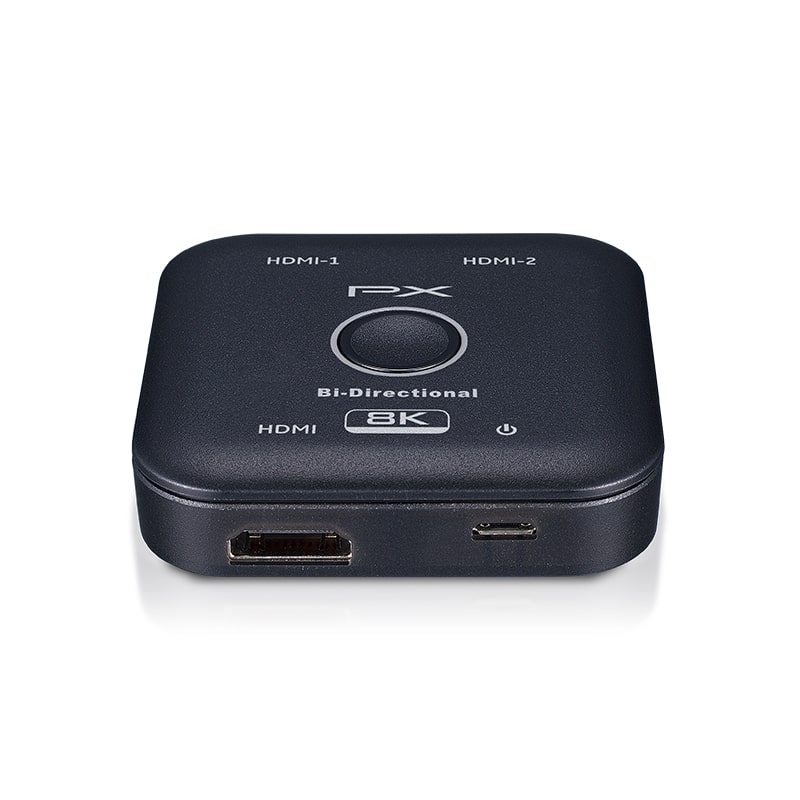

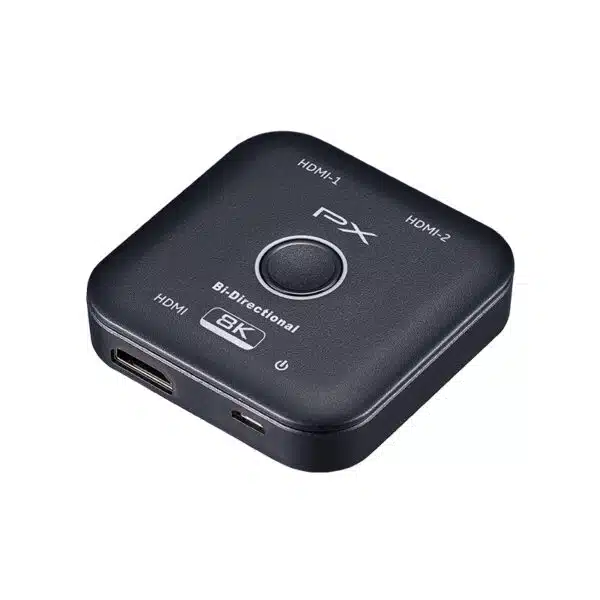

HD2-211X | Ultra 8K Bi-Directional Switch
Feature:
• Latest HDMI 2.1 (8K) and HDCP 2.3 compliant
• Supports Bi-Directional funtion , The HDMI switch can connect two HDMI sources to one HDMI display or one HDMI source to toggle between two displays (Note : Two displays CANNOT display simultaneously )
• Supports 8K@60Hz,4K@144Hz/120Hz/60Hz,1080P@240Hz resolution and HDMI 2.1 back forward compatible.
• Support VRR (Variable Refresh Rate), ALLM (Auto Low-latency Mode), and QFT (Quick Frame Transport) function
• Supports Dolby Vision™ and Dynamic HDR for superior contrast and brilliant colors.
• Powered by HDMI,No external power supply needed.
• Supports Dolby Atmos® by HDMI
• Support Consumer Electronics Control (CEC)
• Provide with high-definition transfer rates up to 48Gbps at full bandwidth.
• Plug and play, No configuration required.

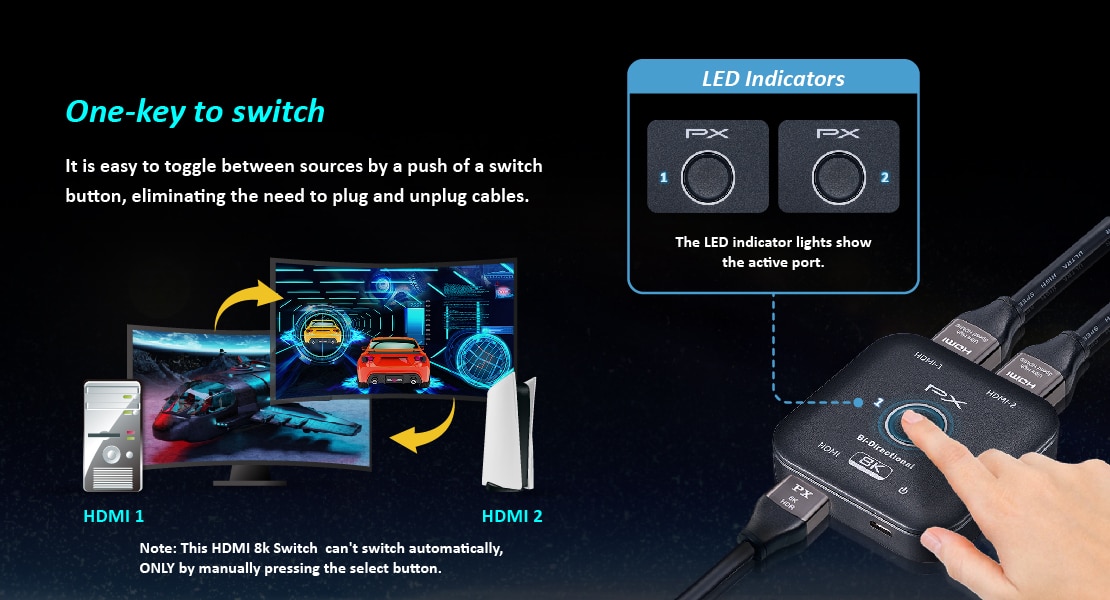

• Manual control , the LED indicator lights show the active port.
• Compatible with various HDMI device – TVs, projectors, monitors, notebooks, PCs, AV receivers, streaming boxes, game consoles, PlayStation® (PS4/PS5), Xbox® (One/Series S/Series X), Blu-ray players and more
Overview
| Description | Ultra 8K Bi-Directional Switch 8K@60Hz 4K@120Hz 1in 2out/ 2in 1out |
The HD2-211X is the latest 8K Directional HDMI Switch that allows seamless connection of two HDMI sources to one HDMI display (HDMI Switch 2 in 1 out) or one signal source to two displays (HDMI Splitter 1 in 2 out). However, it cannot display simultaneously.

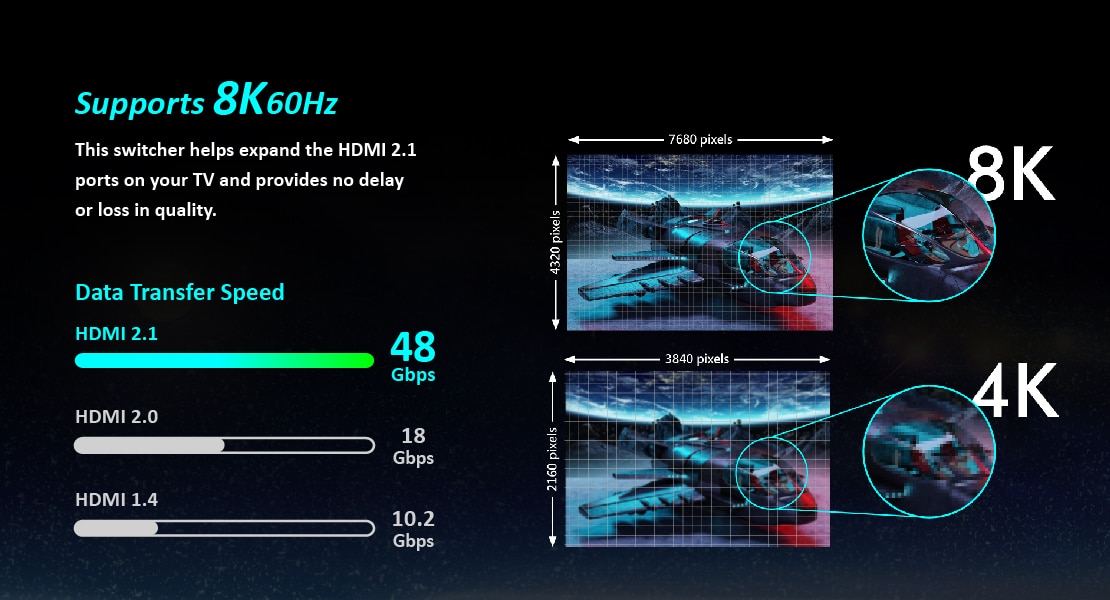

This switcher helps expand the HDMI 2.1 ports on your TV and provides no delay or loss in quality. It is easy to toggle between sources by a push of a switch button, eliminating the need to plug and unplug cables.
With a lightweight appearance, the HD2-211X is easier to use in e-sports environments. It supports PS5 4K120Hz and e-sports 4K144Hz, 165Hz, and 8K60Hz, making it perfect for gaming.
Designed with lower current consumption of only 21mA, it doesn’t require power adapter to function efficiently. Moreover, our model supports the fastest video output time of only 3.5 seconds compared to others that take more than 7 seconds.
*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Features
Feature:
• Latest HDMI 2.1 (8K) and HDCP 2.3 compliant
• Supports Bi-Directional funtion , The HDMI switch can connect two HDMI sources to one HDMI display or one HDMI source to toggle between two displays (Note : Two displays CANNOT display simultaneously )
• Supports 8K@60Hz,4K@144Hz/120Hz/60Hz,1080P@240Hz resolution and HDMI 2.1 back forward compatible.
• Support VRR (Variable Refresh Rate), ALLM (Auto Low-latency Mode), and QFT (Quick Frame Transport) function
• Supports Dolby Vision™ and Dynamic HDR for superior contrast and brilliant colors.
• Powered by HDMI,No external power supply needed.
• Supports Dolby Atmos® by HDMI
• Support Consumer Electronics Control (CEC)
• Provide with high-definition transfer rates up to 48Gbps at full bandwidth.
• Plug and play, No configuration required.
• Manual control , the LED indicator lights show the active port.
• Compatible with various HDMI device – TVs, projectors, monitors, notebooks, PCs, AV receivers, streaming boxes, game consoles, PlayStation® (PS4/PS5), Xbox® (One/Series S/Series X), Blu-ray players and more
Specification
• 3 HDMI ports
• Bi-Directional funtion:

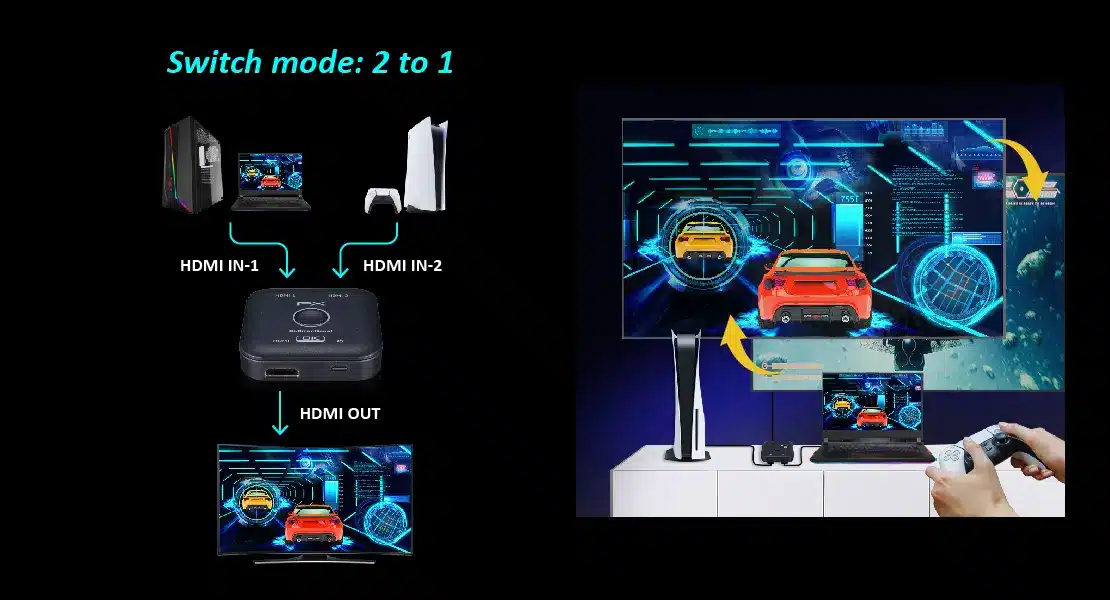

-Switch mode: 2 to 1

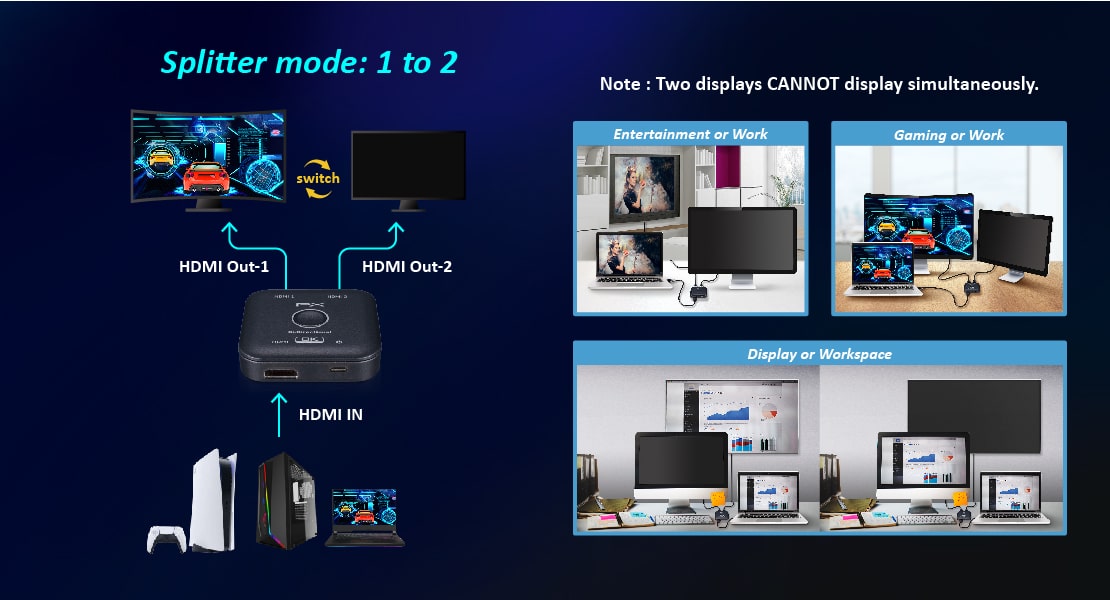

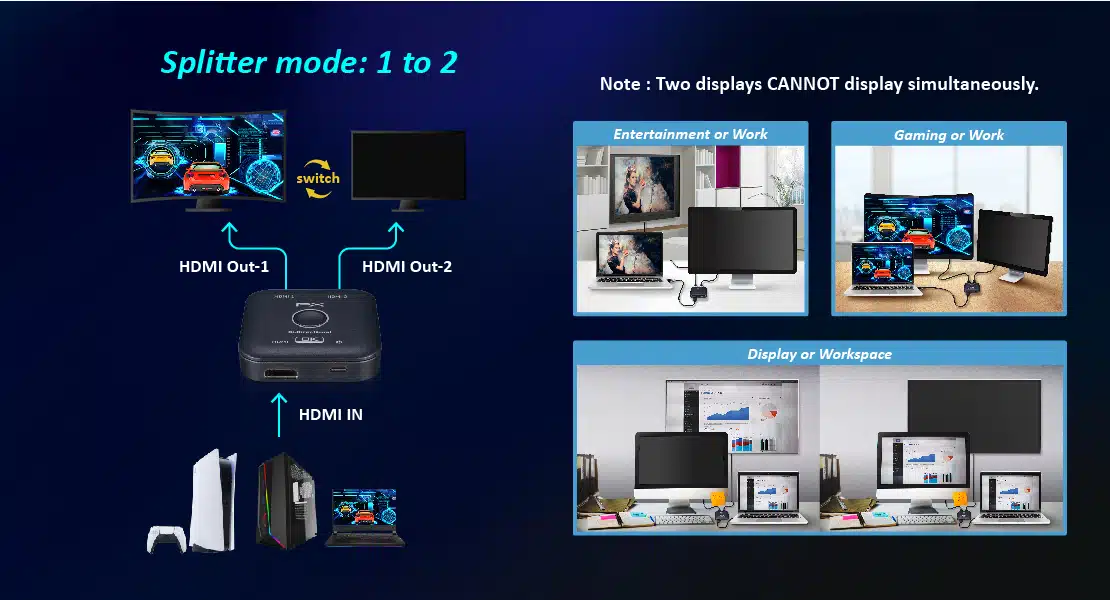

-Splitter mode: 1 to 2 ( One display at a time)
• Video Data Rate:48 Gbps
• Resolution(max.) : 8K@60Hz (max.)
• Control : Toggle button manual select
• Video Format :
-8K@60
-4K@165 / 4K@144 / 4K@120 / 4K@60
-1080@240 / 1080@165 / 1080@144 / -1080@120 / 1080@60
-HDR
• Audio Format :
-PCM 2 0/ PCM 5.1 / PCM 7.1
-Dolby TrueHD
-Dobly 5.1 /Dolby 7.1/Dolby Atmos
• CEC : Support
• Power : By HDMI
Color: Black
Material: Plastic
Dimensions: 63x63x15.5 (mm)
Diagram
