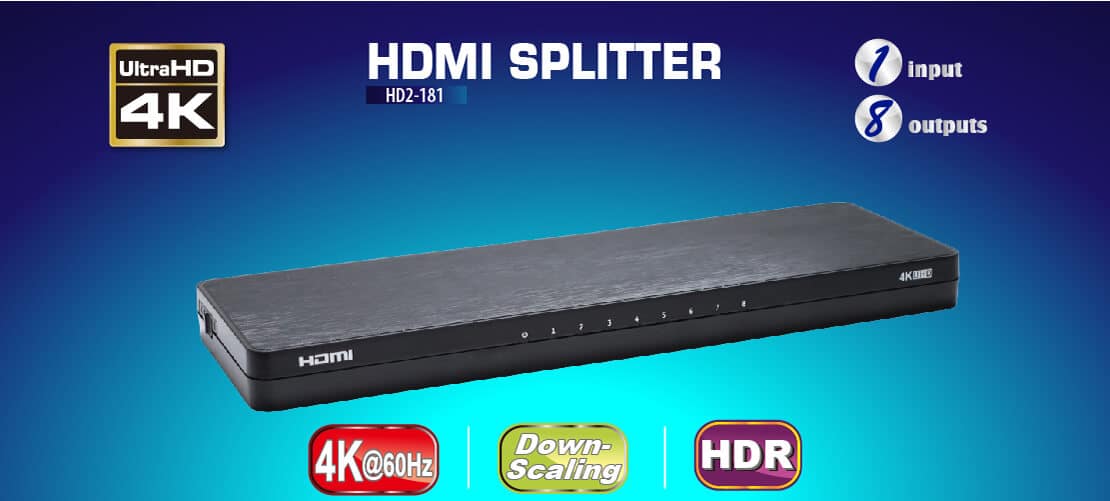

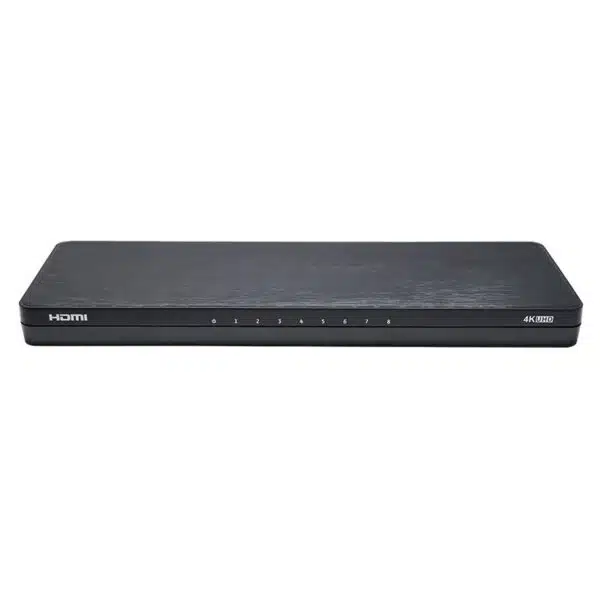

HD2-181 | 4K HDMI splitter | 1 in- 8 out
• Expand 8 HDMI outputs of your high-definition source.
• Supports HDMI 2.0 / HDCP 2.2 compliant.
• Resolution up to 4096×2160@60Hz
• Frequency range 25~600MHz
• Bandwidth 18G bps
• Supports RGB and YCbCr 444 / 422 / 420 format.
• Supports color depth at up to 36 bits.
• Auto downscaling for 4K content to 1080p display capability.
• Dual EDID detection mode selection (HCF / Priority switch)
• No loss transmission with amplifier and equalizer function (up to 15 ft. premium HDMI cable)
• Compliant with DTS-HD®, Dolby® TrueHD lossless compressed digital audio.
• Lower power consumption
• ESD protection
Overview
| Description | 1×8 HDMI splitter: 1 input 8 outputs, UltraHD 4K, auto downscaling |
1×8 HDMI splitter: 1 input 8 outputs, UltraHD 4K, auto downscaling

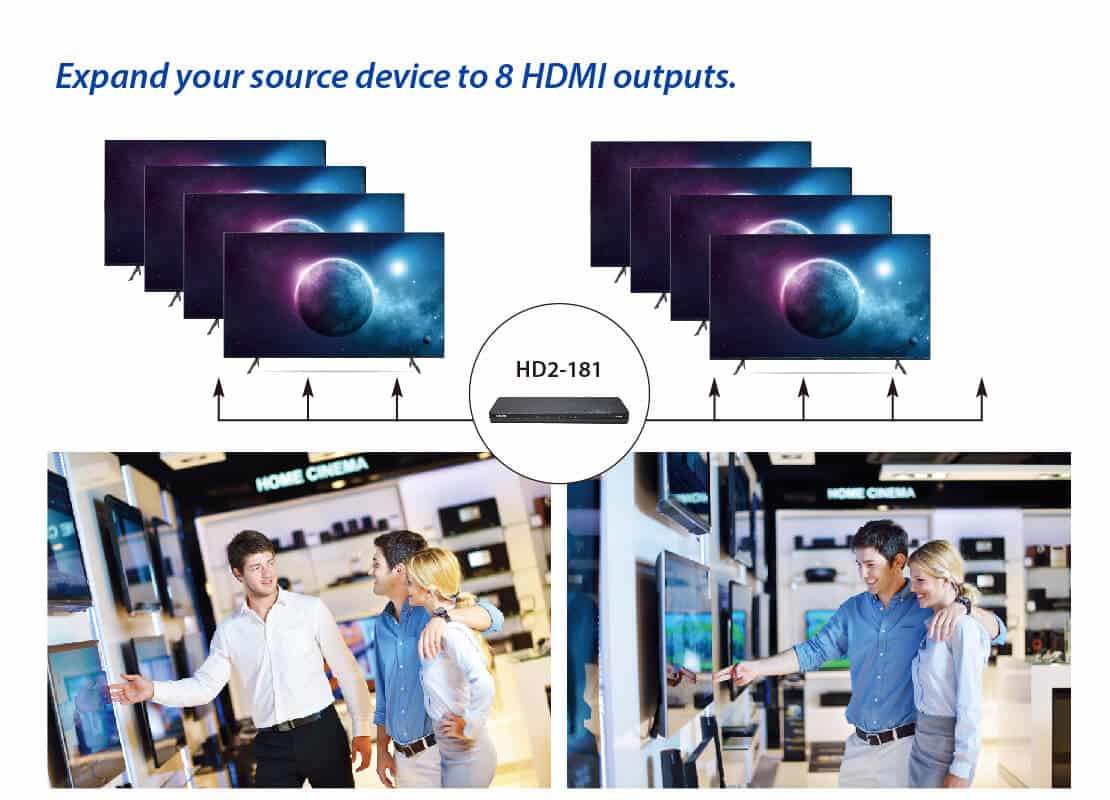

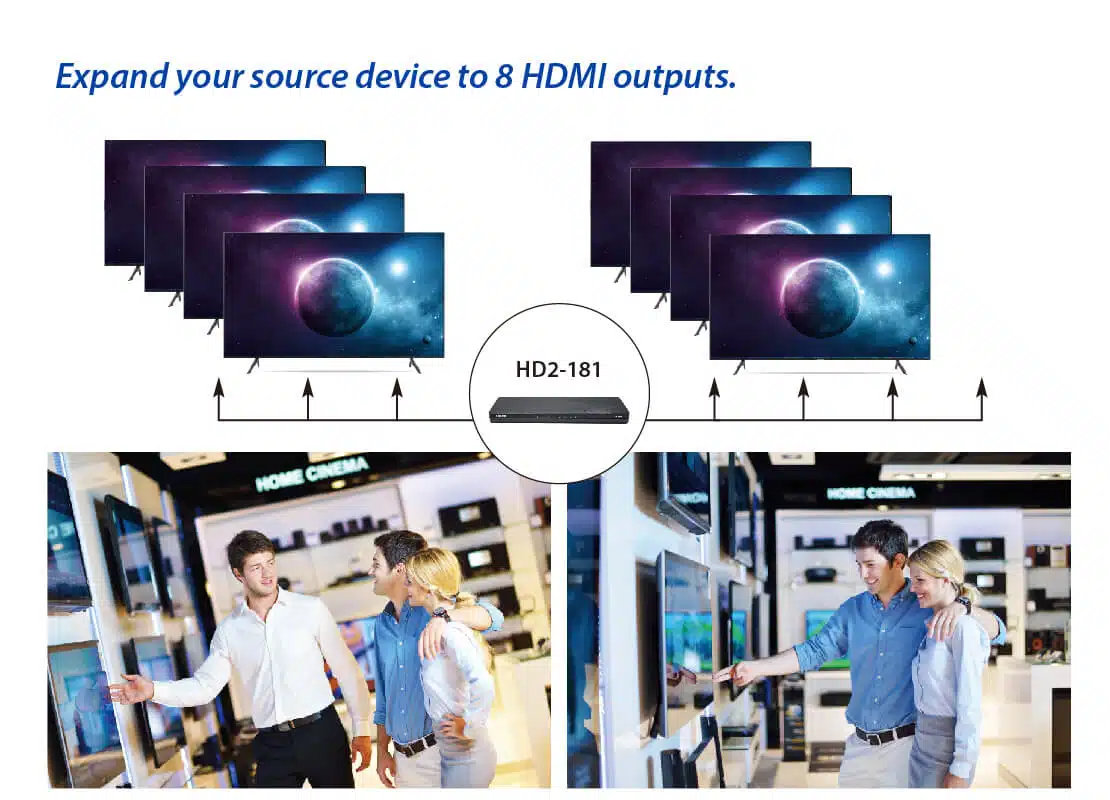

Trans’ HD2-181 splitter takes audio and video signals from a single HDMI source, like a blue-ray player, media console or laptop, and sends it to eight separated HDMI displays. It supports true 4K resolutions (4096 x 2160@60Hz).

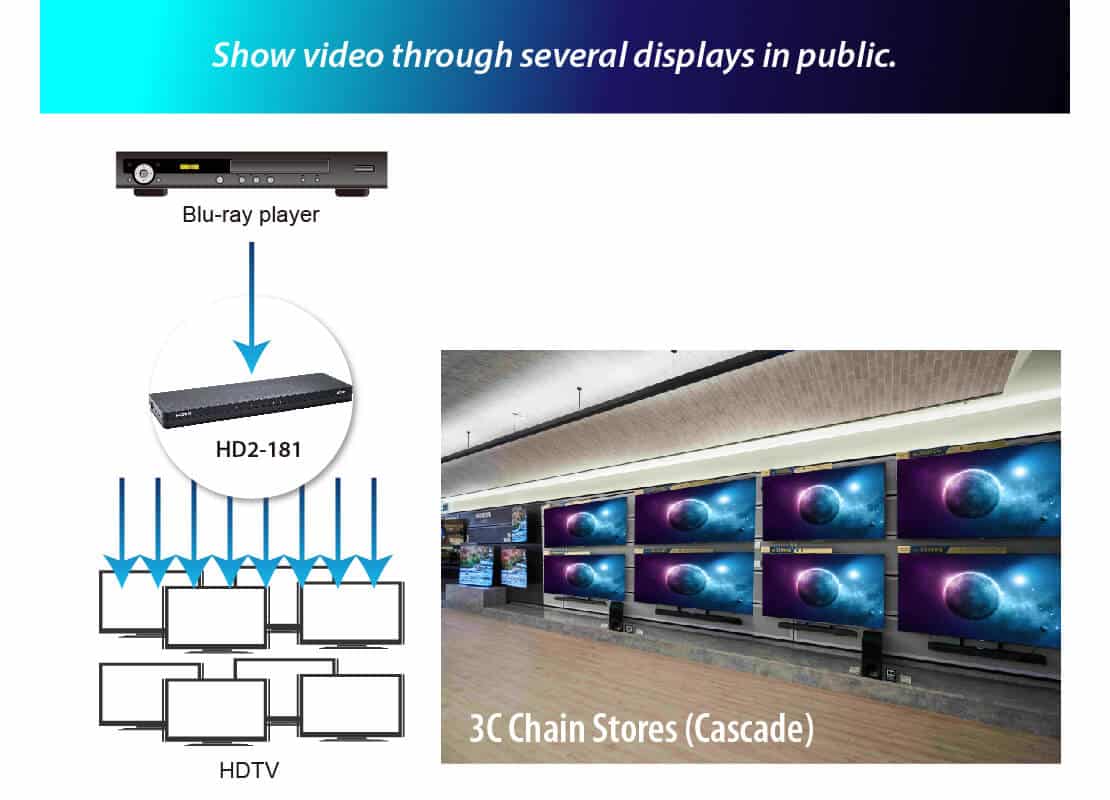

It offers solutions for advertising on multiple displays with digital signage or display the same information on multiple displays in the waiting rooms of healthcare or educational institutions, TV walls for stores.

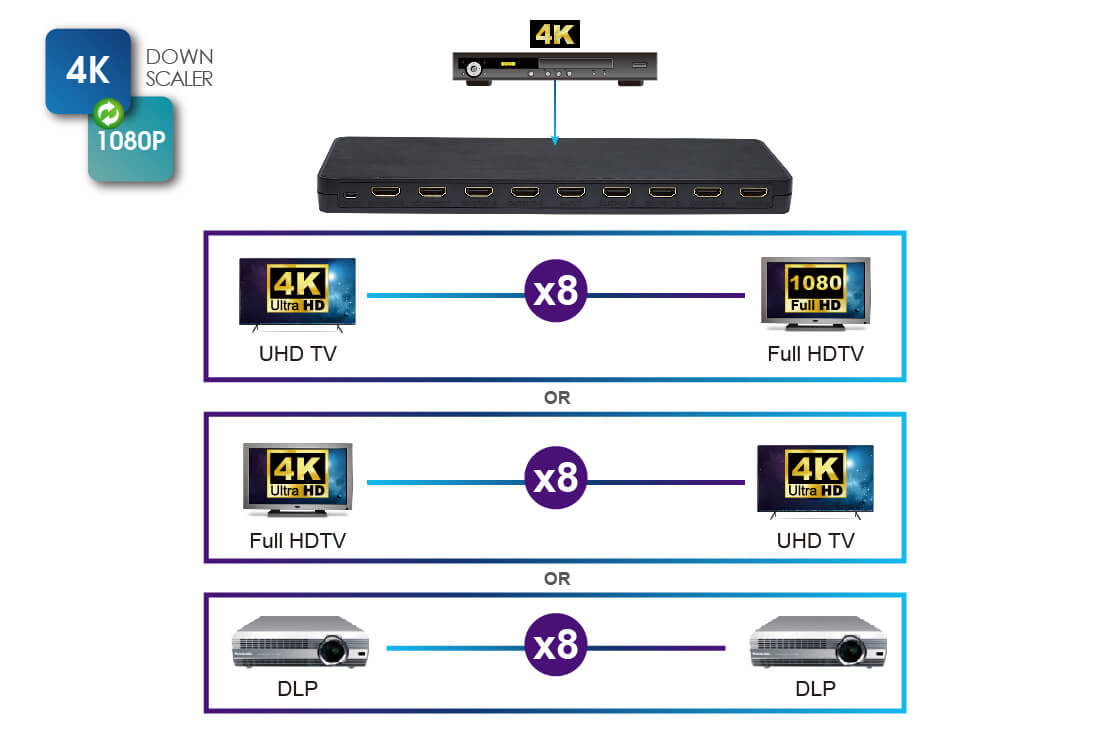

It supports cascade and display on multiple TVs at the same time. Each UHD TV display will have the same quality image as the source or difference resolution. The new added feature of supporting output auto downscaling video format helps you to enjoy the Ultra HD content more easily.
*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Features
• Expand 8 HDMI outputs of your high-definition source.
• Supports HDMI 2.0 / HDCP 2.2 compliant.
• Resolution up to 4096×2160@60Hz
• Frequency range 25~600MHz
• Bandwidth 18G bps
• Supports RGB and YCbCr 444 / 422 / 420 format.
• Supports color depth at up to 36 bits.
• Auto downscaling for 4K content to 1080p display capability.
• Dual EDID detection mode selection (HCF / Priority switch)
• No loss transmission with amplifier and equalizer function (up to 15 ft. premium HDMI cable)
• Compliant with DTS-HD®, Dolby® TrueHD lossless compressed digital audio.
• Lower power consumption
• ESD protection
Specification
• Input: HDMI x 1
• Output: HDMI x 8
• HDMI 2.0 / HDCP 2.2
• Pixel clock rate up to 600MHz
• Video data rate: 18.0Gbps
• Video resolutions supported: 4K60Hz
Color: Black
Material: Plastic
Dimensions: 260x84x20.6 (mm)

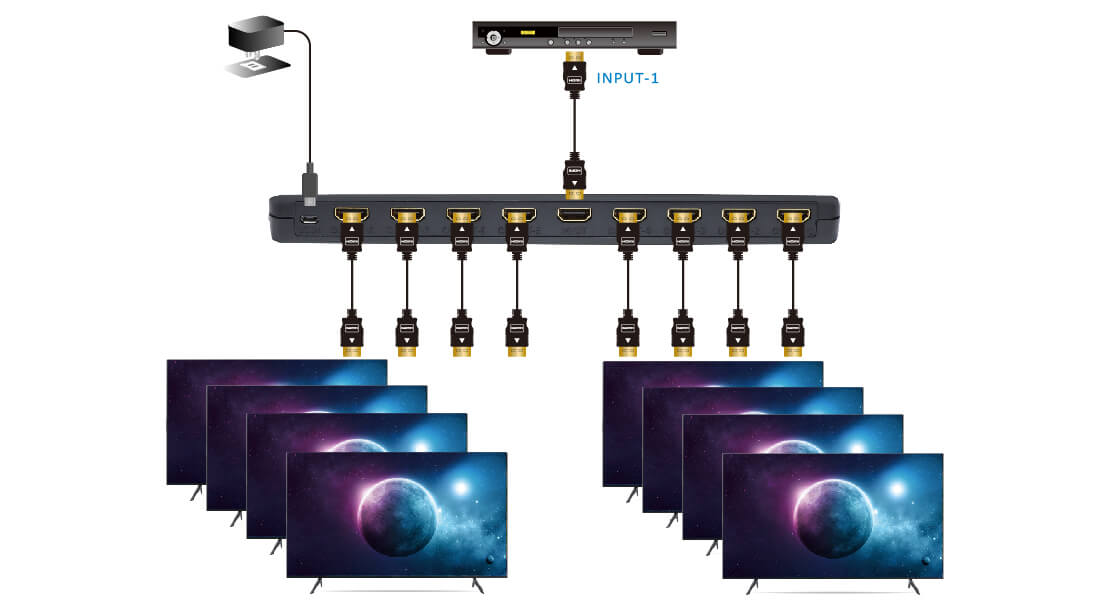

Diagram
