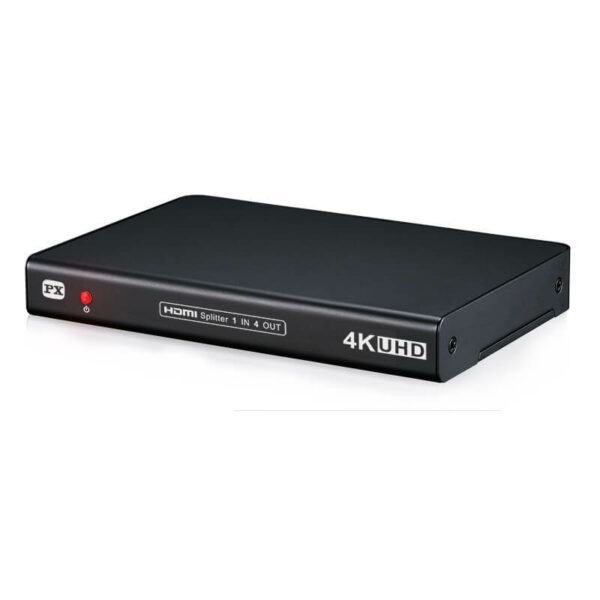

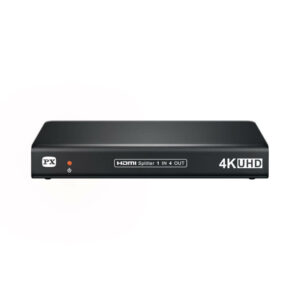

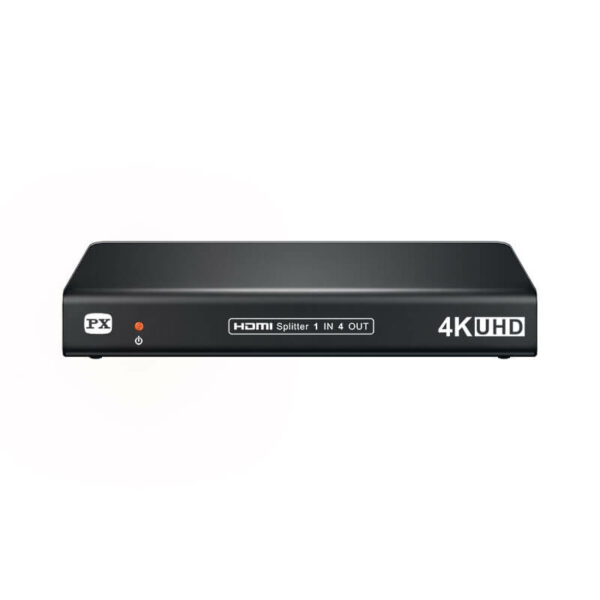

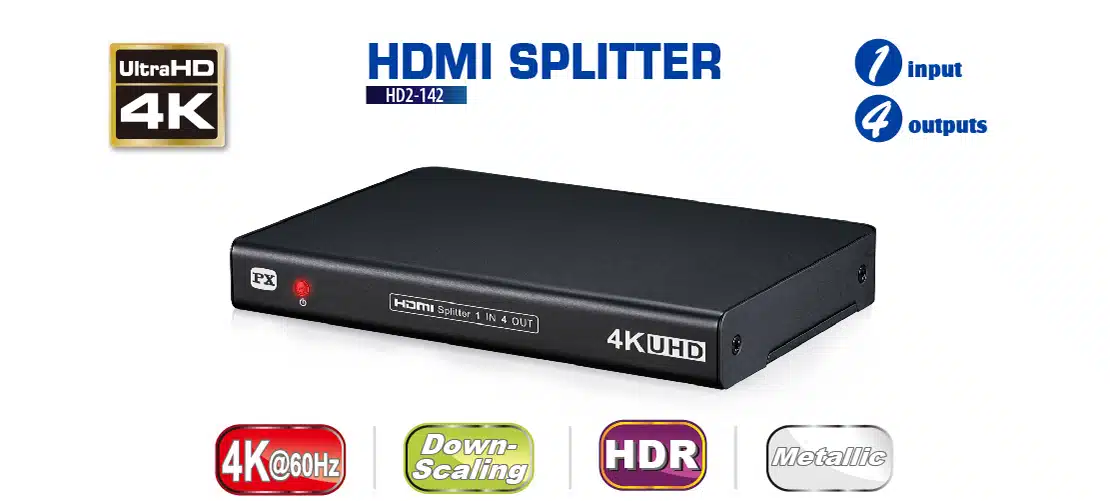

HD2-142 | 4K HDMI splitter | 1 in- 4 out
• Expand 4 HDMI outputs of your high-definition source.
• Supports HDMI 2.0 / HDCP 2.2 compliant.
• Resolution up to 4096×2160@60Hz
• Frequency range 25~600MHz
• Bandwidth 18G bps
• Supports RGB and YCbCr 444 / 422 / 420 format.
• Supports color depth at up to 36 bits.
• Auto downscaling for 4K content to 1080p display capability.
• Dual EDID detection mode selection (HCF / Priority switch)
• No loss transmission with amplifier and equalizer function (up to 15 ft. premium HDMI cable)
• Compliant with Dolby® TrueHD lossless compressed digital audio .
• Lower power consumption
• ESD protection
• Metal housing
Overview
| Description | 1×4 HDMI splitter: 1 input 4 outputs, UltraHD 4K, auto downscaling |
1×4 HDMI splitter: 1 input 4 outputs, UltraHD 4K, auto downscaling

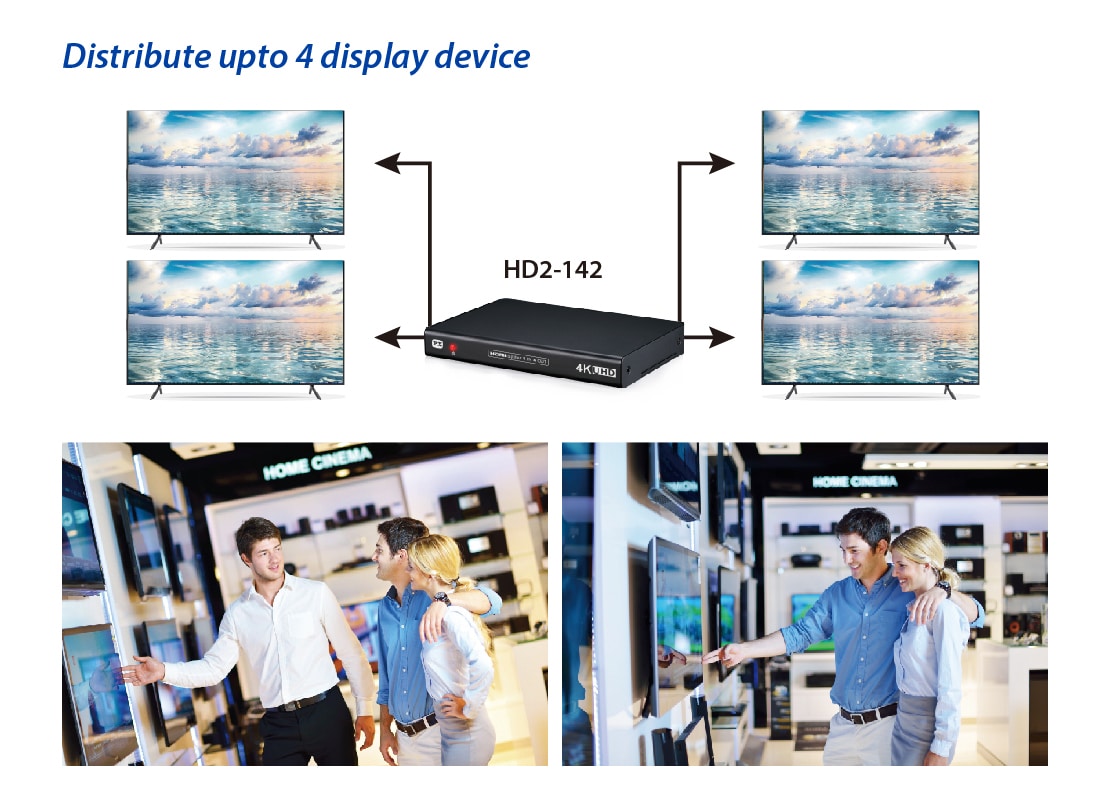

Trans’ HD2-142 distributes HDMI video and audio from a single source devices (UHD blue-ray player, 4K media player, PS4 Pro) to up to 4 HDMI displays (TV, projectors) simultaneously. Built-in amplifier and equalize maintain the stability and outstanding signal quality.
Auto video scaling feature detects and configures the video resolution automatically according to the capabilities of each connected monitor.

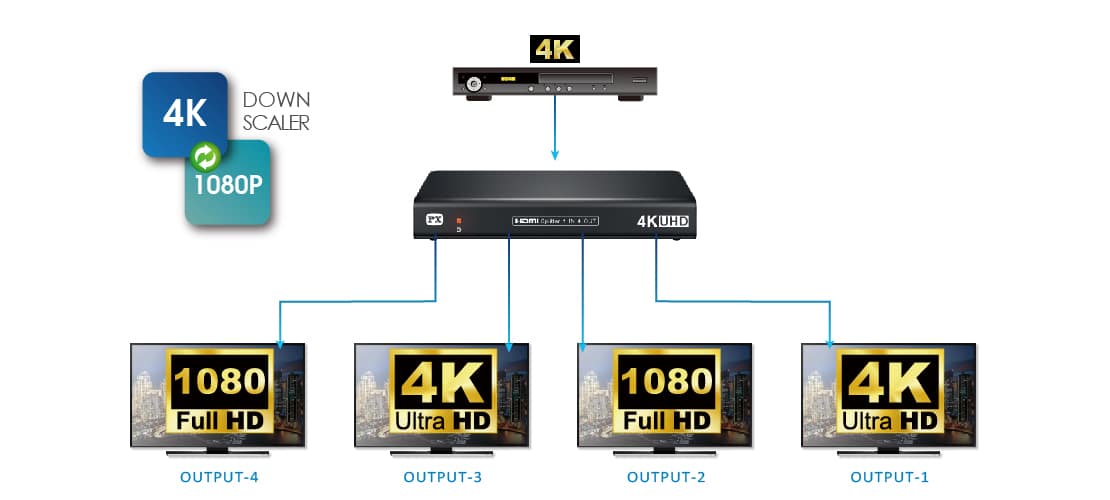

Simultaneous mixed 4K60Hz and 1080p60Hz display outputs supported. It allows the users to use different resolution monitors with one splitter.
*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Features
• Expand 4 HDMI outputs of your high-definition source.
• Supports HDMI 2.0 / HDCP 2.2 compliant.
• Resolution up to 4096×2160@60Hz
• Frequency range 25~600MHz
• Bandwidth 18G bps
• Supports RGB and YCbCr 444 / 422 / 420 format.
• Supports color depth at up to 36 bits.
• Auto downscaling for 4K content to 1080p display capability.
• Dual EDID detection mode selection (HCF / Priority switch)
• No loss transmission with amplifier and equalizer function (up to 15 ft. premium HDMI cable)
• Compliant with Dolby® TrueHD lossless compressed digital audio .
• Lower power consumption
• ESD protection
• Metal housing
Specification

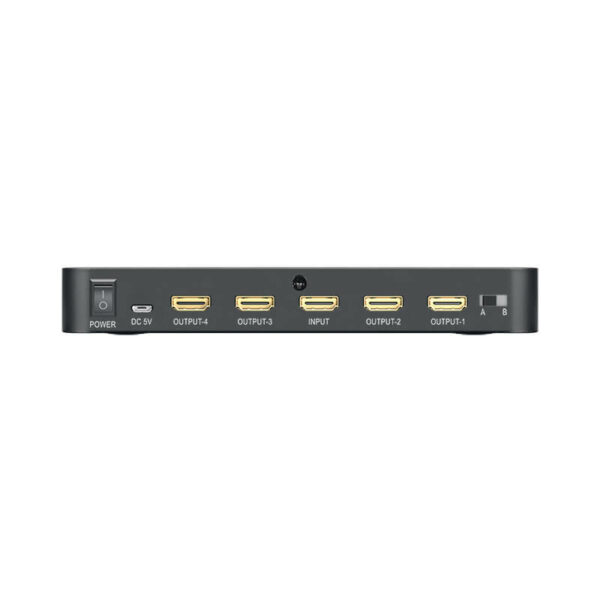

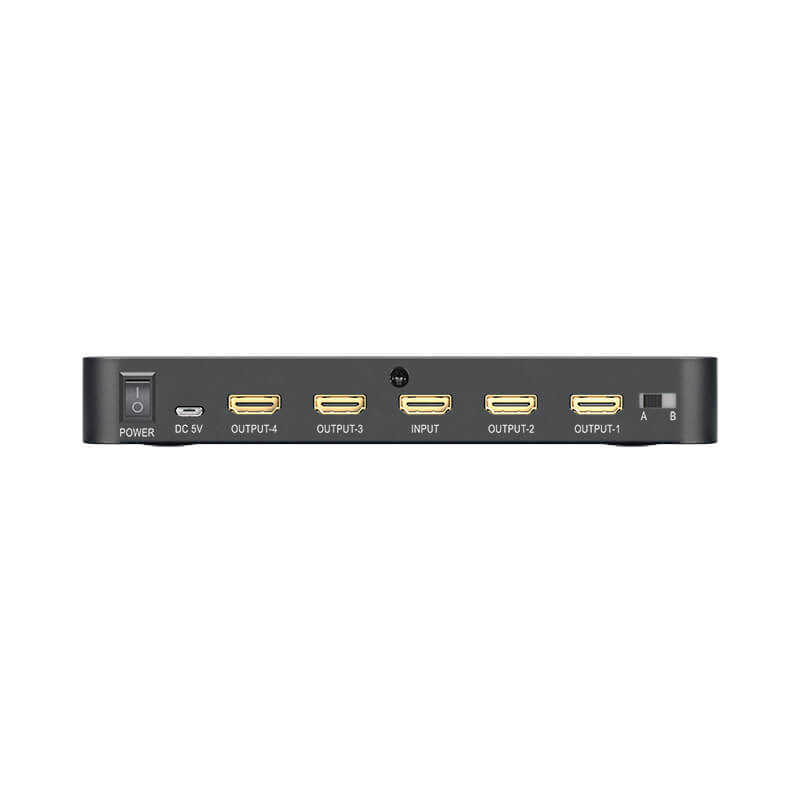

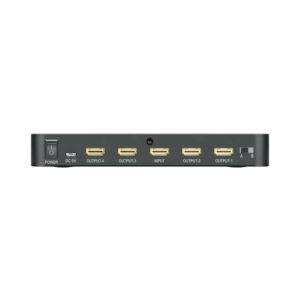

• Input: HDMI x 1
• Output: HDMI x 4
• HDMI 2.0 / HDCP 2.2
• Pixel clock rate up to 600MHz
• Video data rate : 18.0Gbps
• Video resolutions supported: 4K60Hz
Color: Black
Material: Metal
Dimensions: 185x123x25 (mm)

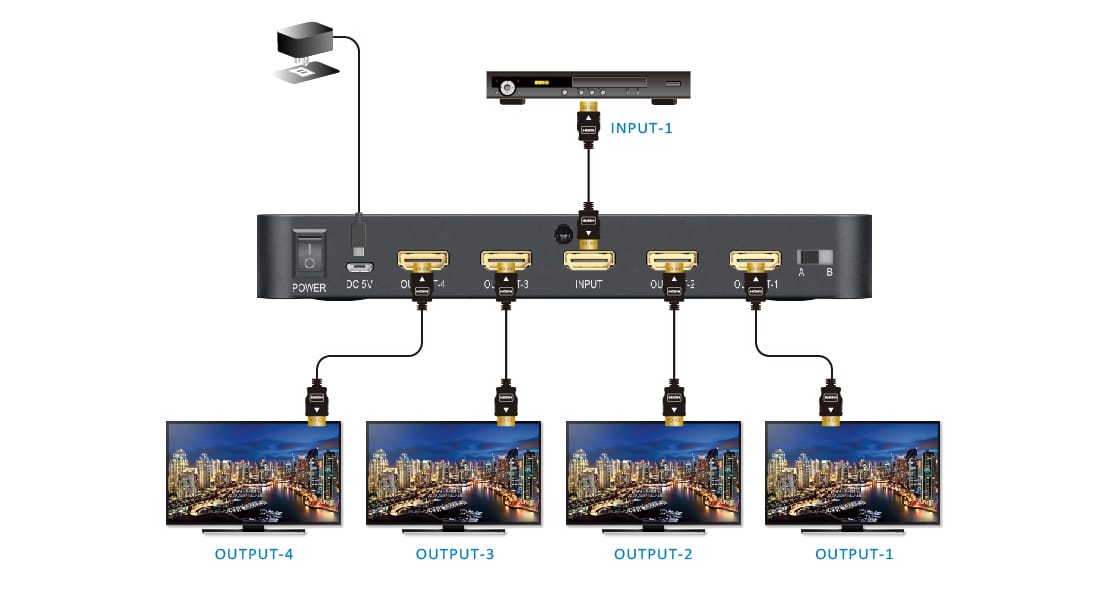

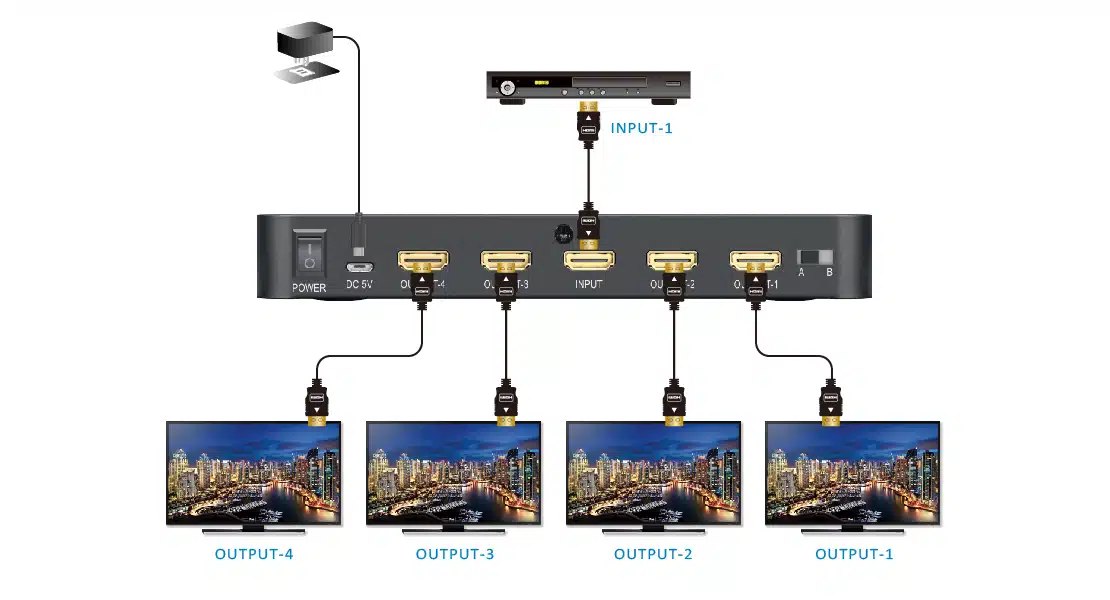

Diagram
