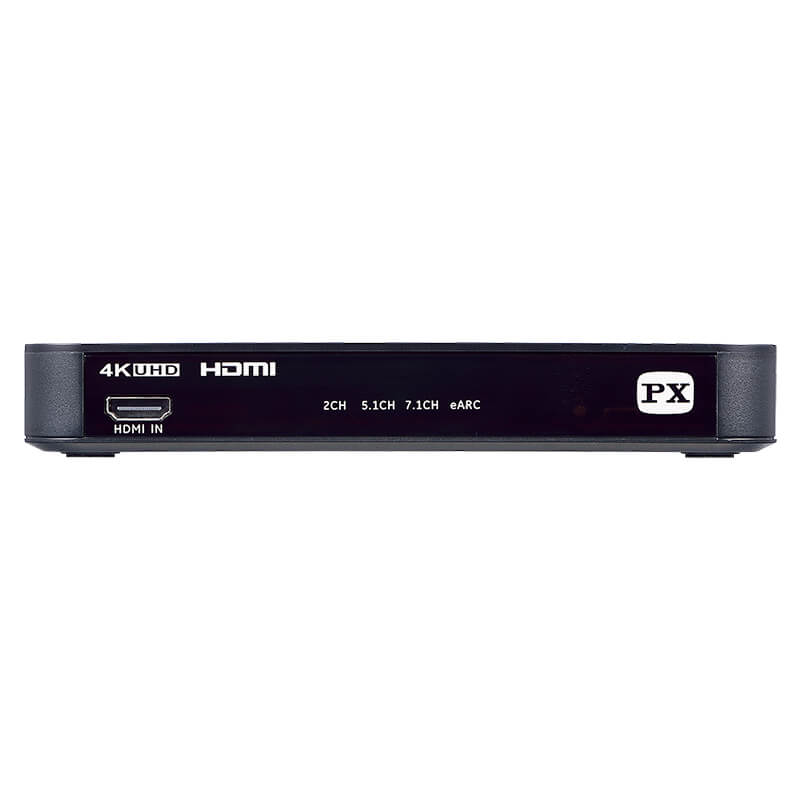

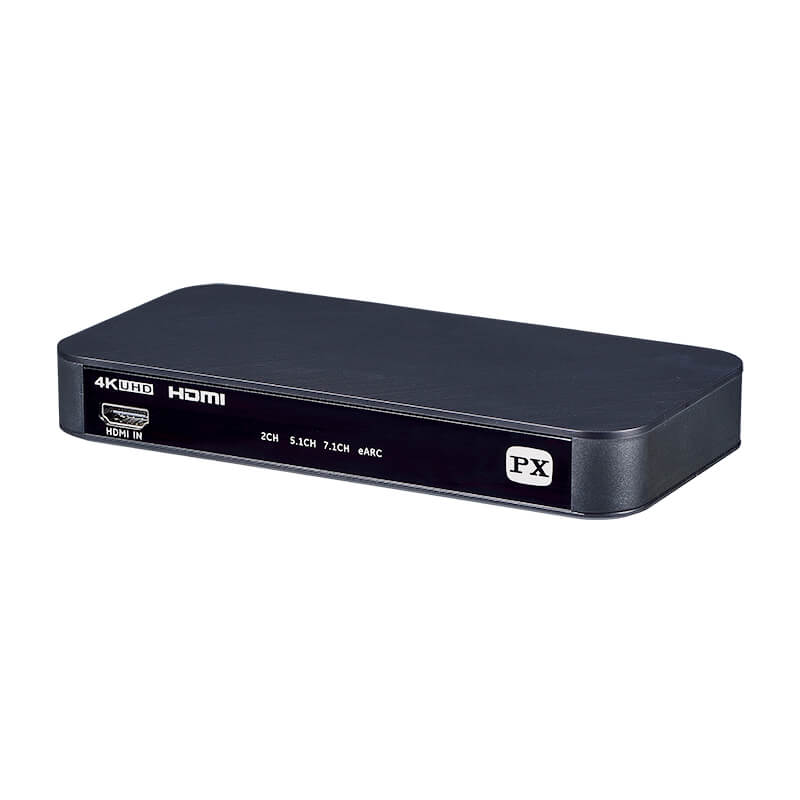

HA2-130eS | eARC Audio extractor | Dual HDMI out
• Video and audio separation
• Auto eARC detection when using the TV’s app or external devices.
• Supports dual HDMI audio interface (HDMI eARC and HDMI audio).
• Supports 4K60HZ HDR.
• Compatible Dolby® Atmos (via HDMI)
• Supports pixel clock rate up to 600 MHz.
• Supports S/PDIF, Stereo 3.5mm audio output.
• Supports Dolby® TrueHD (via HDMI).
• HDMI 2.0 / 2.1 (eARC), HDCP 2.3
• Three modes selection for audio format setting (2ch / 5.1ch / 7.1ch)
• Supports CEC (Use the TV RC to adjust the soundbar sound and CEC connecting device power on/off)
Overview
Description |
HDMI eARC & audio dual output extractor for streaming 7.1 surround sound and Dolby® Atmos |
Introduction to HDMI Audio Extractor HA2-130eS
HDMI audio extractor supports streaming services such as Netflix, Amazon Prime video, Disney+ and Apple TV+ have boomed in popularity. There are more and more 4K, HDR, Dolby® vision, and Dolby® Atmos contents available.
The HDMI Audio Extractor HA2-130eS ensures interoperability between any HDMI source device, any legacy and modern HDMI, ARC, eARC, optical, 3.5mm audio system as well as any HDMI display.
Our HA2-130eS delivers optimized audio format to any sound system (up to Dolby® Atmos, DTS: X, DD+) and optimized picture quality to any display (up to 4K60Hz), giving you a perfect cinematic experience.
Advantages of HDMI Audio Extractor HA2-130eS

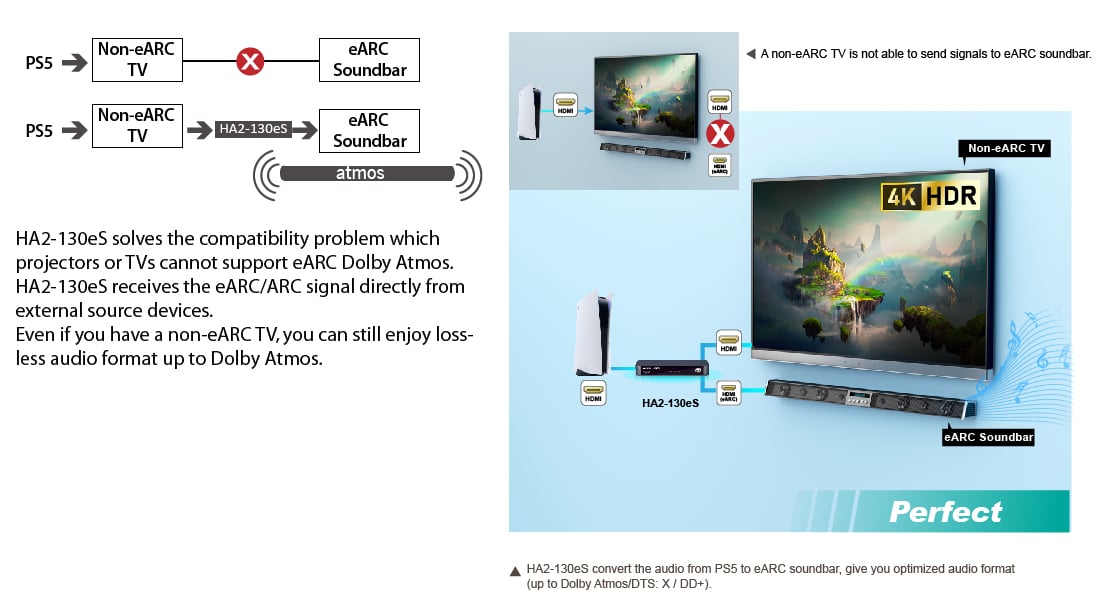

HDMI Audio Extractor HA2-130eS not only brings new life to old TVs, traditional amplifiers and projectors, but easily solves the compatibility problem where projectors or TVs cannot support eARC Dolby® Atmos. Moreover, it fulfills the greatest value of eARC soundbar, game consoles, 4K streaming player, and smart TV devices, which enables you to optimize the video and audio quality with a lower budget.
You can now immerse yourself in the audio-visual feast of Dolby® Vision & Dolby® Atmos DTS: X, DD+.

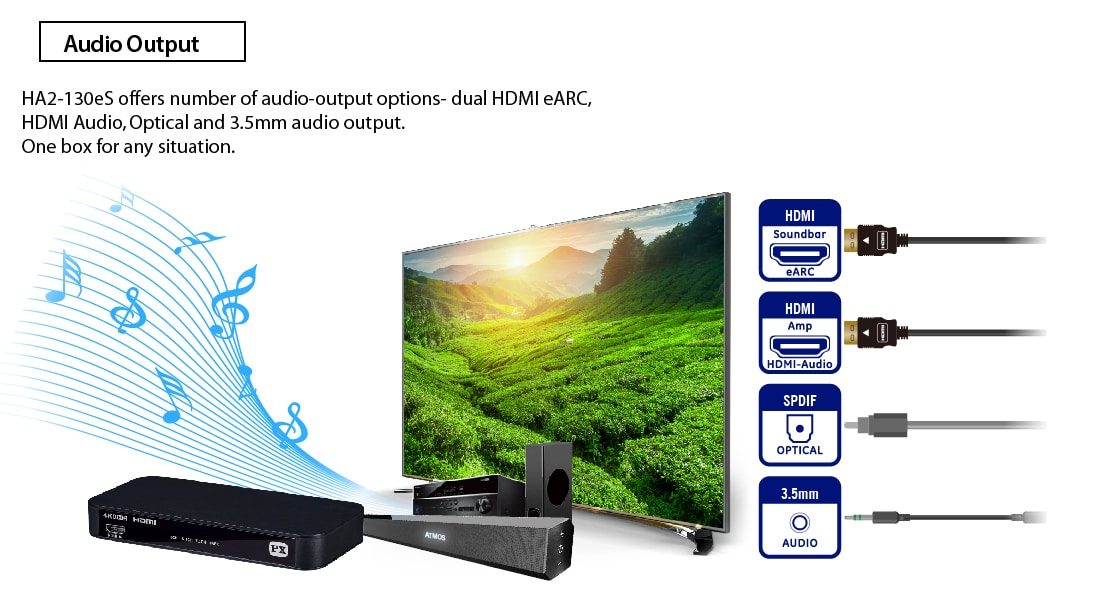

Audio Output

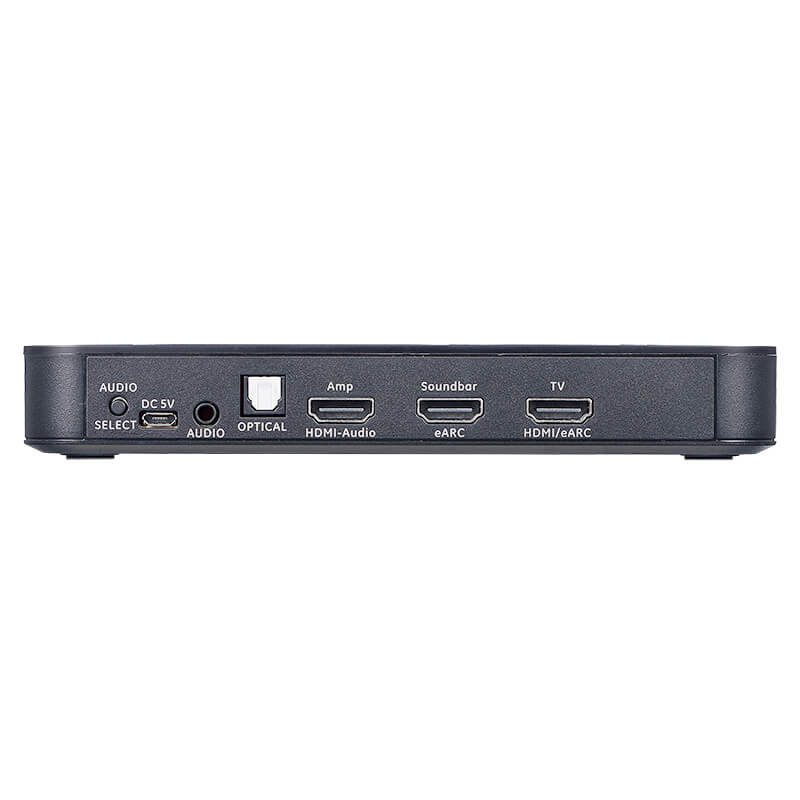

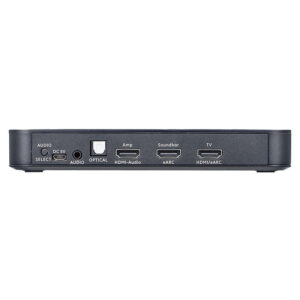

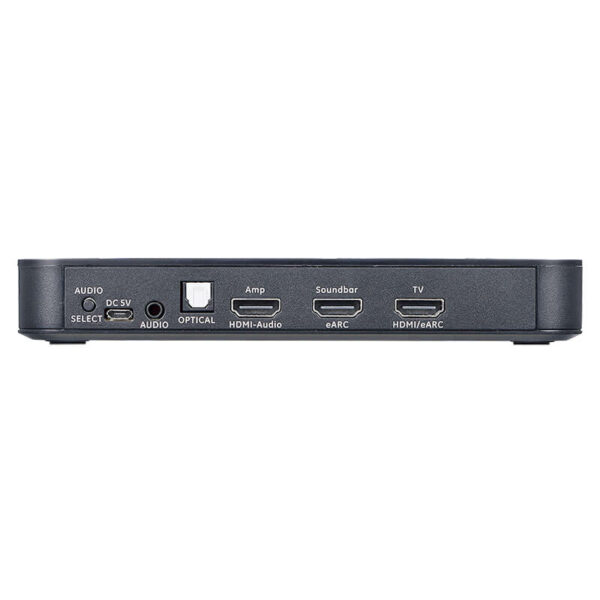

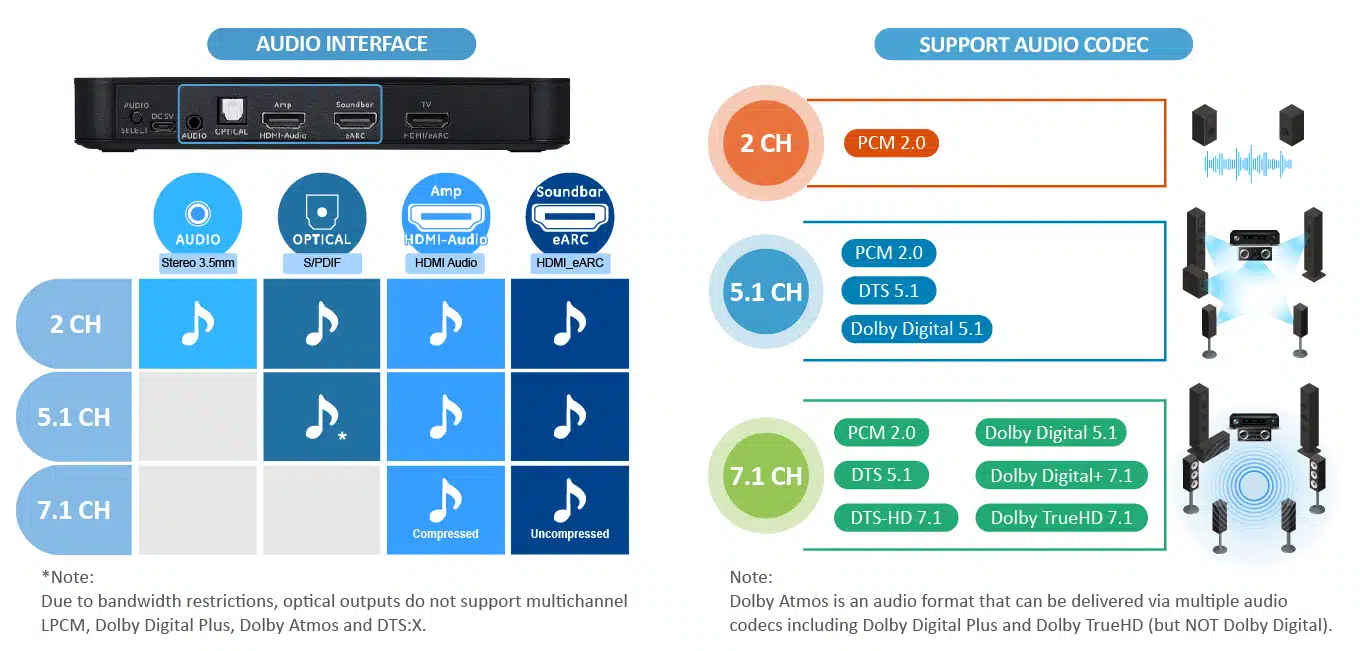

HDMI audio extractor HA2-130eS offers number of audio-output options – dual HDMI eARC, HDMI Audio, Optical and 3.5mm audio output.

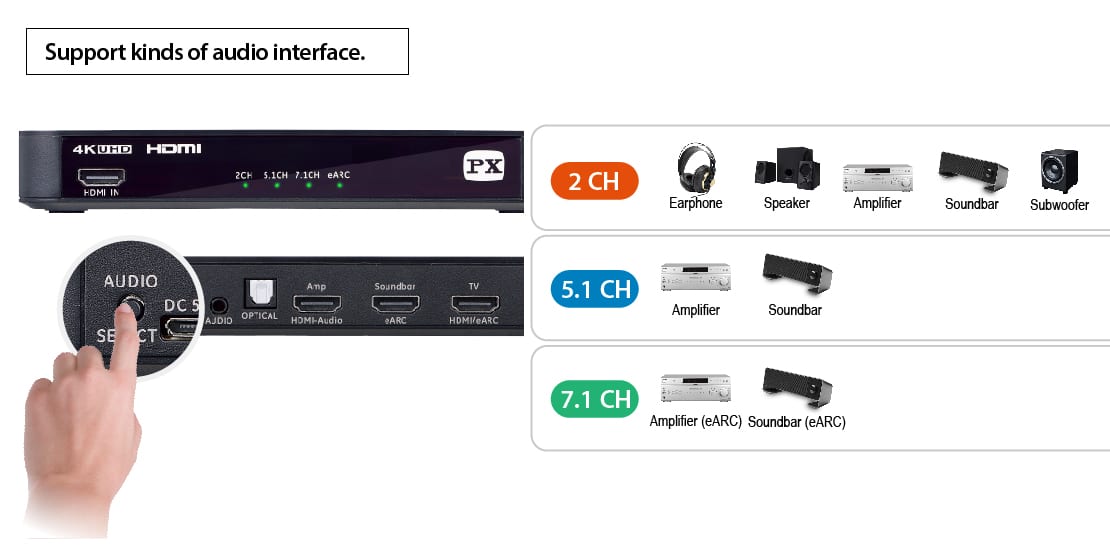

Support kinds of audio interface

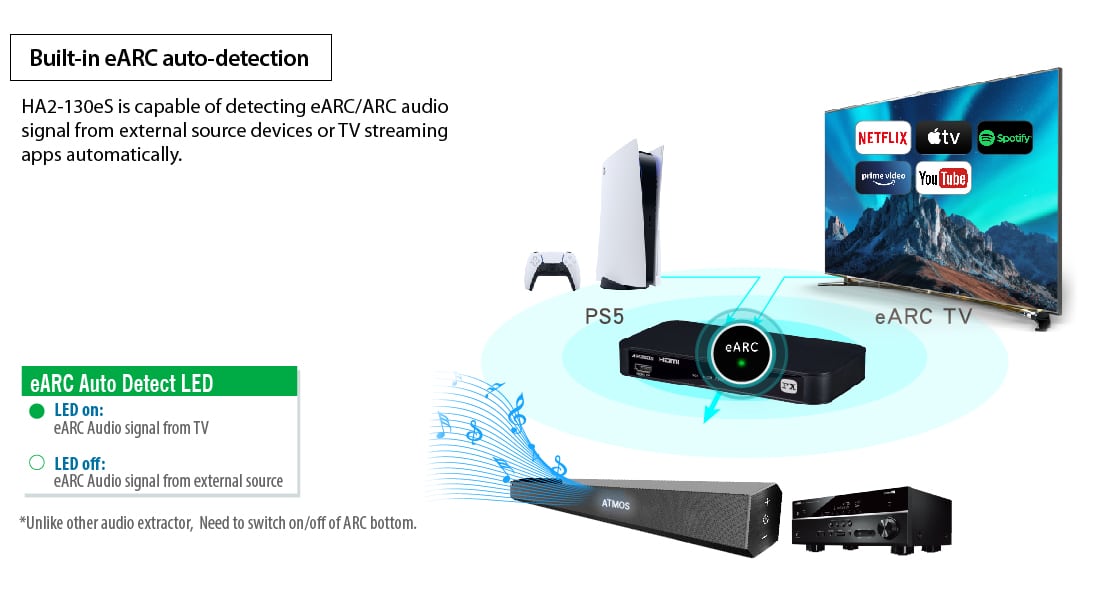

Built-in eARC audio-detection
HA2-130eS is capable of detecting eARC/ ARC audio signal from external source devices or TV streaming apps automatically.

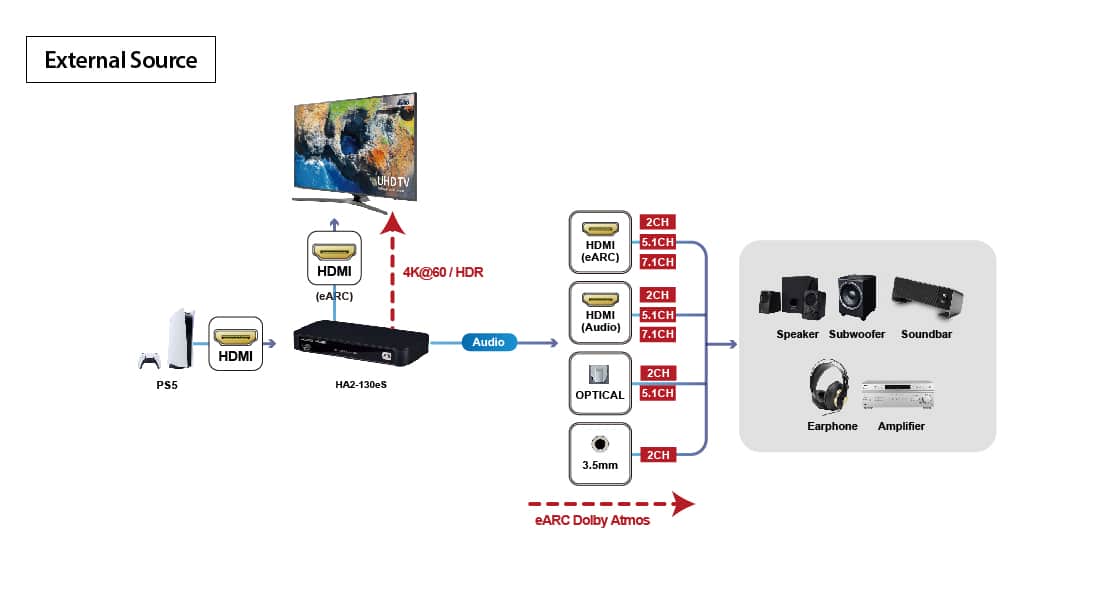

External source

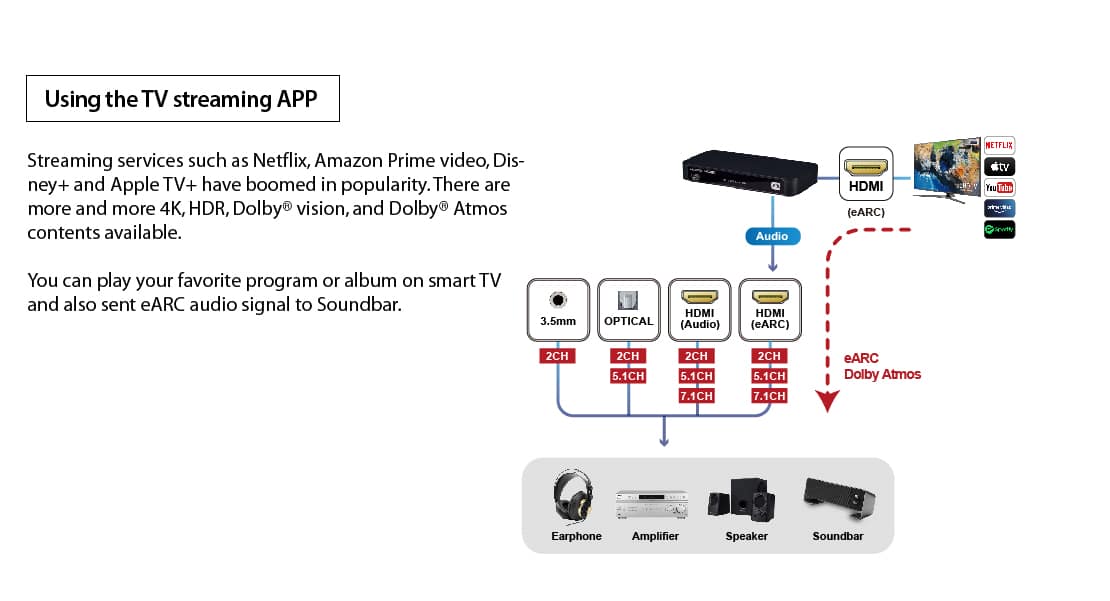

Using the TV streaming App
You can play your favorite program or album on smart TV and also sent eARC audio signal to soundbar.
*The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Features
• Video and audio separation
• Auto eARC detection when using the TV’s app or external devices.
• Supports dual HDMI audio interface (HDMI eARC and HDMI audio).
• Supports 4K60HZ HDR.
• Compatible Dolby® Atmos (via HDMI)
• Supports pixel clock rate up to 600 MHz.
• Supports S/PDIF, Stereo 3.5mm audio output.
• Supports DTS HD®, Dolby® TrueHD (via HDMI).
• HDMI 2.0 / 2.1 (eARC), HDCP 2.3
• Three modes selection for audio format setting (2ch / 5.1ch / 7.1ch)
• Supports CEC (Use the TV RC to adjust the soundbar sound and CEC connecting device power on/off)
Specification
• Input: HDMI x 1

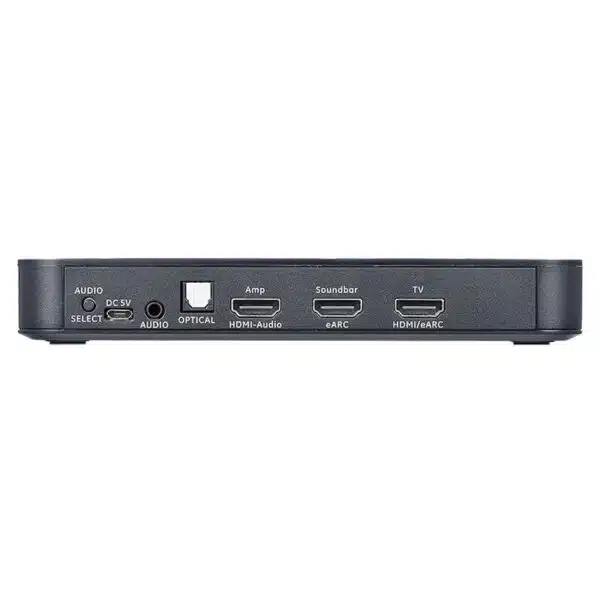

• Output: HDMI x 1, HDMI eARC x 1, HDMI audio x 1 / Other audio output: Toslink x 1, 3.5 mm phone-jack x 1
• HDMI 2.1 eARC / HDCP 2.3
• Supports audio signal: Standard audio, DSD audio, HD (HBR) audio (include Dolby® Atmos).
• Supports CEC function.
Color : Black
Material : Plastic
Dimensions : 175x87x26.3 (mm)

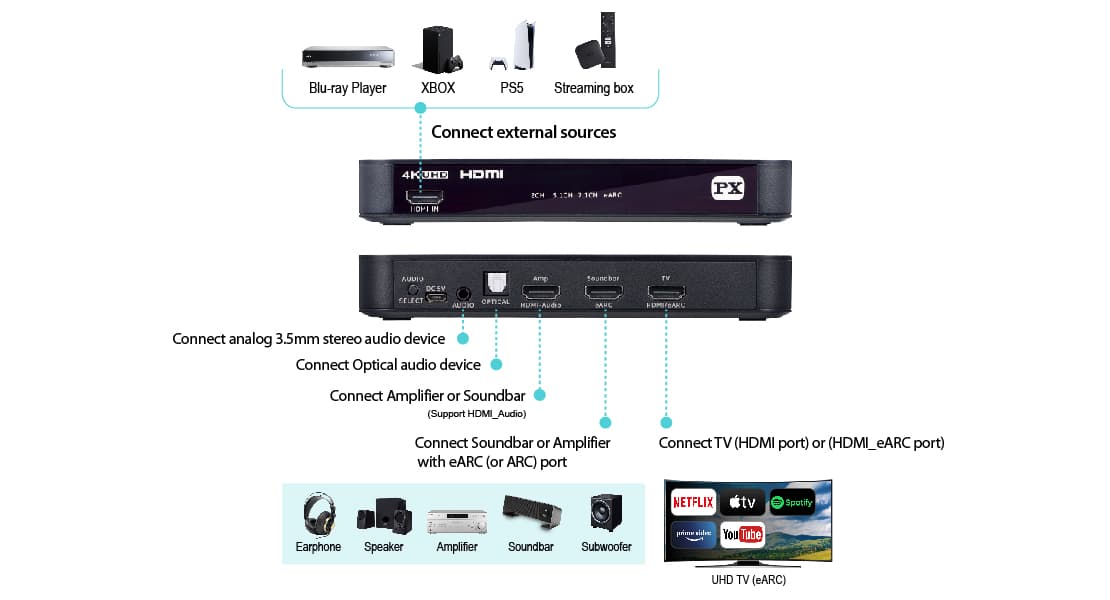

Diagram
