DA-8500 | Digital TV antenna | Low noise amplified
• Amplified indoor antenna
• VHF & UHF reception
• Noise figure ≦ 4dB
• Multi-directional
• Enjoy 4K UltraHD and crystal full HD 1080P over-the-air TV channels.
• Built-in 4G / 5G LTE filter, LTE600 filter isolation > 20dB (@660MHz)
• Return loss ≦ -6 dB
• Quick and easy setup
• Flat panel design, supports lay flat, stand-up table placement and wall mount installation.
• Gloss black housing with crystal frame
Overview
| Description | Low noise amplified digital TV antenna |
DA-8500 is an amplified antenna with a built-in low noise amplifer, it allows you to receive free-to-air 4K UltraHD and crystal clear full HD 1080p TV channels.
Working range up to 40 miles. With its stylish and ultra shiny housing design, it suits all kinds of room decoration.
Features
• Amplified indoor antenna
• VHF & UHF reception
• Noise figure ≦ 4dB
• Multi-directional
• Enjoy 4K UltraHD and crystal full HD 1080P over-the-air TV channels.
• Built-in 4G / 5G LTE filter, LTE600 filter isolation > 20dB (@660MHz)
• Return loss ≦ -6 dB
• Quick and easy setup
• Flat panel design, supports lay flat, stand-up table placement and wall mount installation.
• Gloss black housing with crystal frame

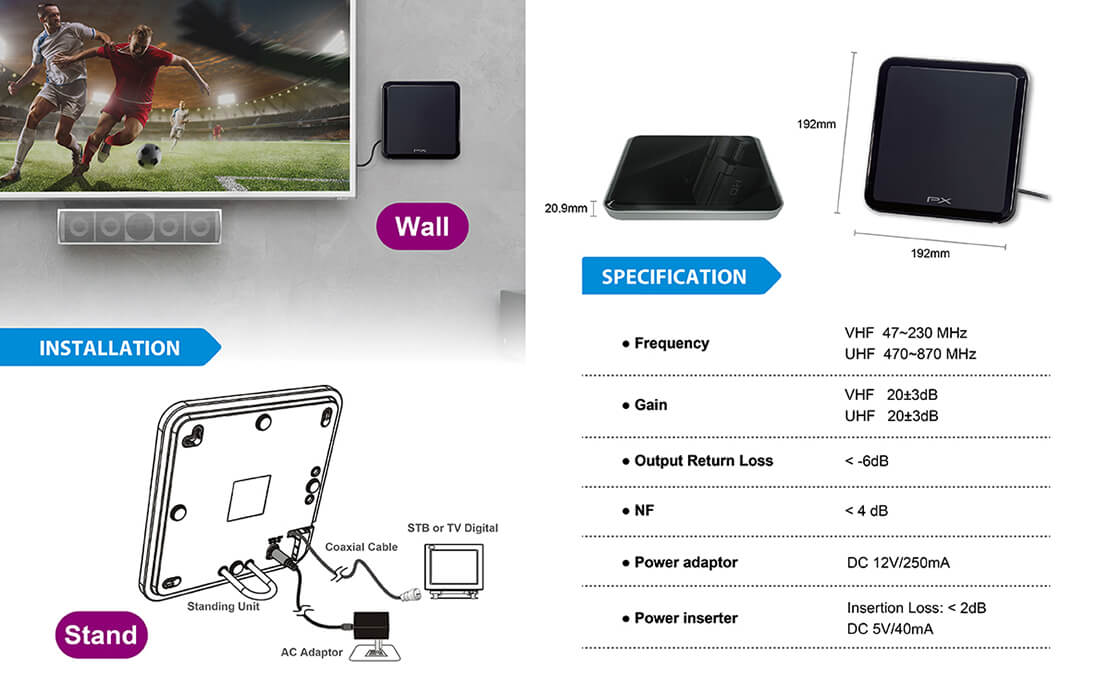

Specification
• Frequency range: VHF 47~230 MHz; UHF 470~870MHz
• Amplifier gain: VHF 20+/- 3dB, UHF 20+/- 3dB
• Output return loss ≦ – 6 dB
• Noise figure ≦ 4dB
• Adaptor: AC230V DC12V / 250mA
• RF output impedance: For 75 Ohm TV system
• RF coaxial cable: 3C-2V 1.8M IEC Male
• Dimension: L 190mm x W 192mm x H 20.9mm
