DA-5200 | Digital TV outdoor antenna | Low noise amplified
• Amplified outdoor antenna
• VHF & UHF reception
• Noise Figure ≦ 4dB
• Multi-directional
• Enjoy 4K UltraHD and crystal full HD 1080p over-the-air TV channels.
• Built-in 4G / 5G LTE filter, LTE600 filter isolation > 20dB (@660Mhz)
• Return Loss ≦-6 dB
• Quick and easy setup
• Supports wall-mounted & pole mounted
• Available for RV / boat mounted
• Gloss white housing
• Anti-UV housing, supports IPX5 water resistance.
• Wind resistance, supports windspeed up to 41.5~ 46.1 m/s.
Overview
| Description | Low noise amplified digital TV outdoor antenna |
DA-5200 is a digital amplified outdoor TV antenna with state-of-art low noise amplifier technology and circuitry. It allows you to receive free-to-air 4K UltraHD and crystal full HD 1080p TV channels. Working range up to 50 miles.
With the compact and stylish housing, it blends in with your digital STB and is compatible with most HDTVs.

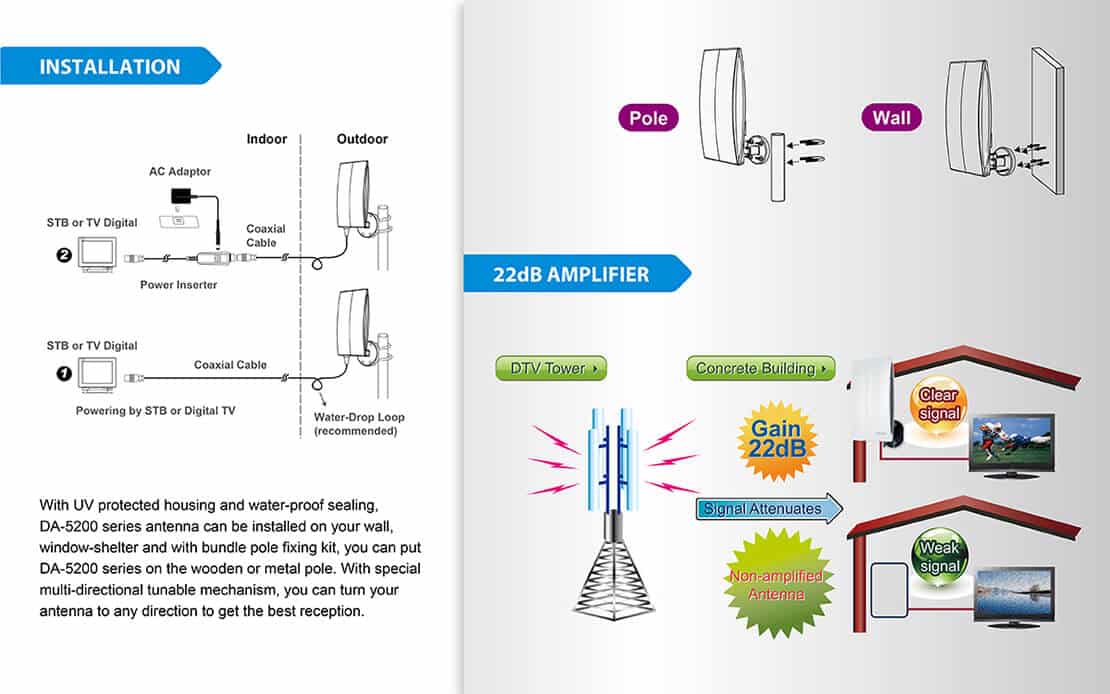

With UV protected housing and water-proof sealing, DA-5200 series antenna can be installed on your wall, window-shelter and with bundle pole fixing kit, you can put DA-5200 series on the wooden or metal pole. With special multi-directional tunable mechanism, you can turn your antenna to any direction to get the best reception.
Features
• Amplified outdoor antenna
• VHF & UHF reception
• Noise Figure ≦ 4dB
• Multi-directional
• Enjoy 4K UltraHD and crystal full HD 1080p over-the-air TV channels.
• Built-in 4G / 5G LTE filter, LTE600 filter isolation > 20dB (@660Mhz)
• Return Loss ≦-6 dB
• Quick and easy setup
• Supports wall-mounted & pole mounted
• Available for RV / boat mounted
• Gloss white housing
• Anti-UV housing, supports IPX5 water resistance.
• Wind resistance, supports windspeed up to 41.5~ 46.1 m/s.

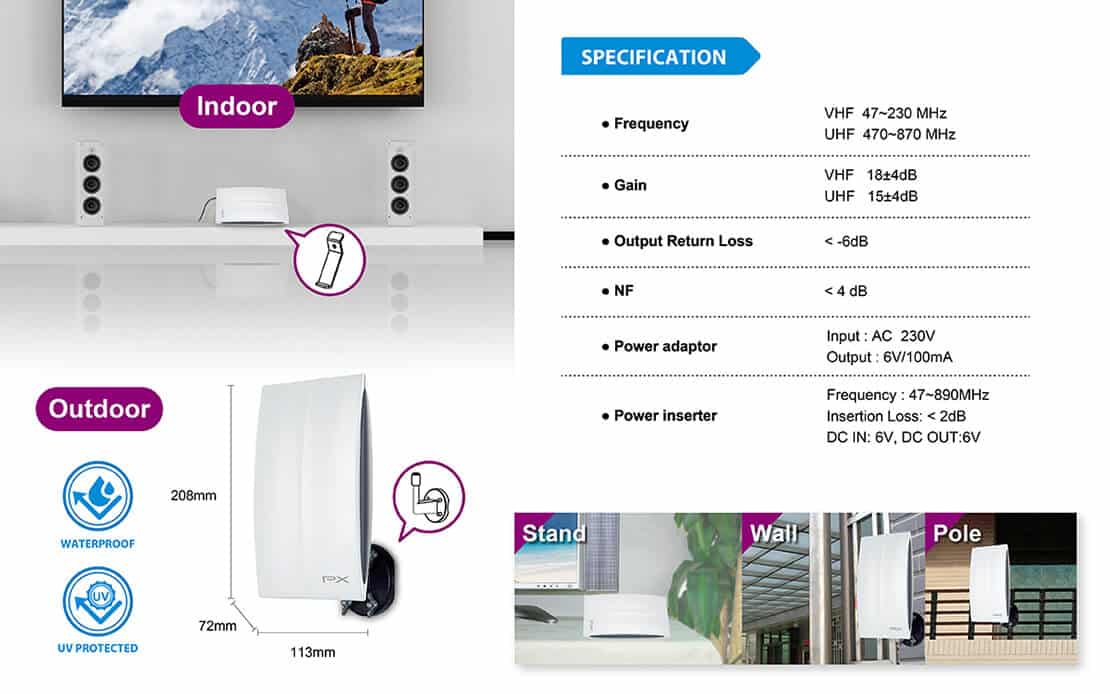

Specification
• Different installations method, wall-mounted or pole-mounted.
• UHF 470~890MHz
• VHF 47~230MHz
• Gain 20±3dB
• Low noise amplifier technology
• High directionality
• Water-proof and anti-UV housing
