BRX-5300AC | Bluetooth audio transmitter and receiver
• Dual modes: Transmitter and receiver
• Supports up two headphones / speakers simultaneously
• Built-in rechargeable 280mAH battery
– TX mode: 16 hours operation, suitable for long flight or high speed train.
– RX mode: 12 hours operation, suitable for long distance driving.

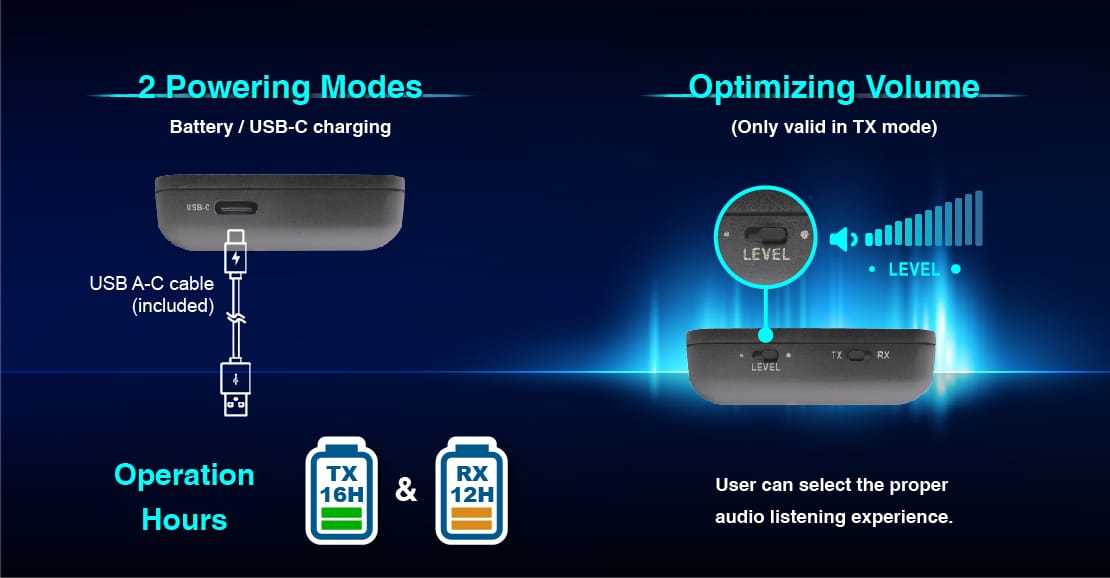

• 2 powering modes: Battery, Type C. For operation, it can be used while charging at the same time.
• H/L switch for TX mode: Users can select the proper audio listening experience.
• Power Class 1: Longer connection distance up to 20-30m. (66-100 ft.)
• Holds up to 2 paired devices in memory for both TX & RX mode. The original pairing memory will not be cleared after a mode switching.
Overview
| Description | Bluetooth® audio transmitter and receiver. USB-C charging supported. |
BRX-5300AC is a wireless Bluetooth® audio transmitter and receiver 2 in 1 Bluetooth® device with built-in lithium battery. It can be used as a portable receiver for travelling, camping, driving etc. When it is used as a transmitter, you can connect to TV, iPod, Mp3 player to share the music.
Ideal to use with noise-cancelling headphone, Airpods to help reduce the uncomfortable background noise on an aircraft.
BRX-5300AC can be charged via USB-C port. The operation time for transmitter mode is approximately 16 hours, and the receiver mode is approximately 12 hours. With specially designed level switch, users can adjust the input level to optimize the audio in transmitter mode, allowing a more comfortable listening experience on the headphone.
※ While we always strive to ensure all website content and product information is current, Trans Electric reserves the right to change specifications and housing design without notice. Please contact with Trans sales for more detail.
※ AIRPODS is a trademark of APPLE INC
Features
• Dual modes: Transmitter and receiver
• Supports up two headphones / speakers simultaneously
• Built-in rechargeable 280mAH battery
– TX mode: 16 hours operation, suitable for long flight or high speed train.
– RX mode: 12 hours operation, suitable for long distance driving.
• 2 powering modes: Battery, Type C. For operation, it can be used while charging at the same time.
• H/L switch for TX mode: Users can select the proper audio listening experience.
• Power Class 1: Longer connection distance up to 20-30m. (66-100 ft.)
• Holds up to 2 paired devices in memory for both TX & RX mode. The original pairing memory will not be cleared after a mode switching.

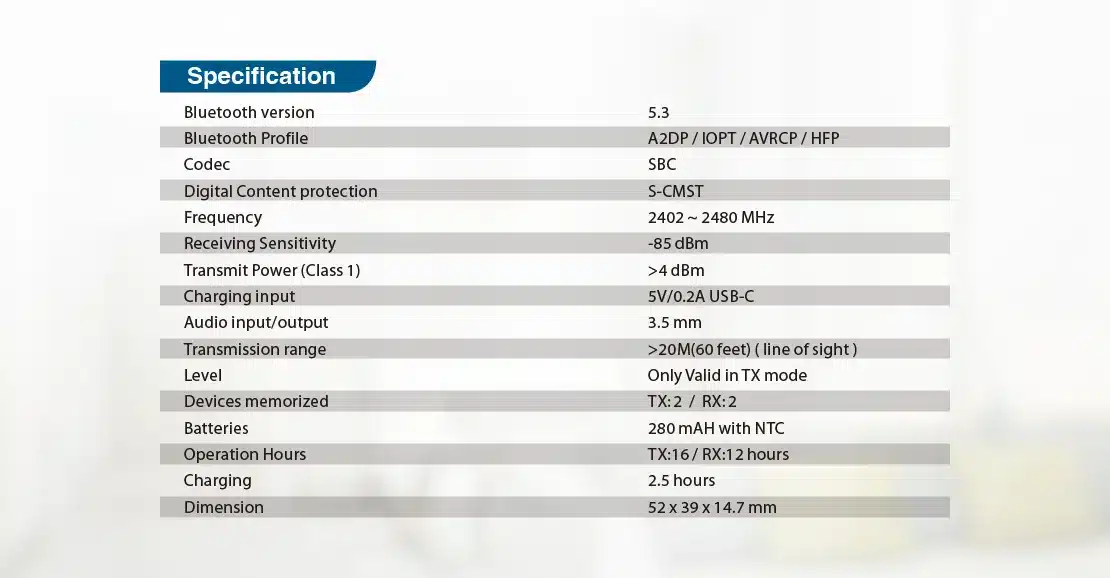

Specification
• Bluetooth® version: 5.3
• Bluetooth® power: Class 1
• Input connector: 3.5mm stereo, type C female
• SNR > 80dB
• THD < 1%
• Channel separation > 70dB
• Analogue input level: 1.8 / 0.9V switchable
• Analogue output level: 0.9Vrms
• Batteries power, type C powering

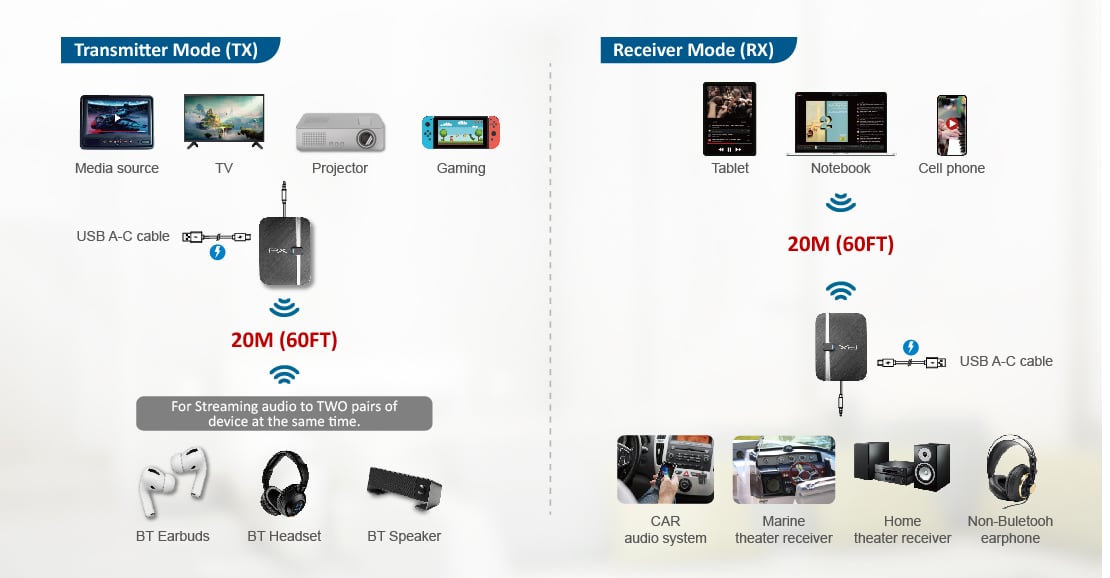

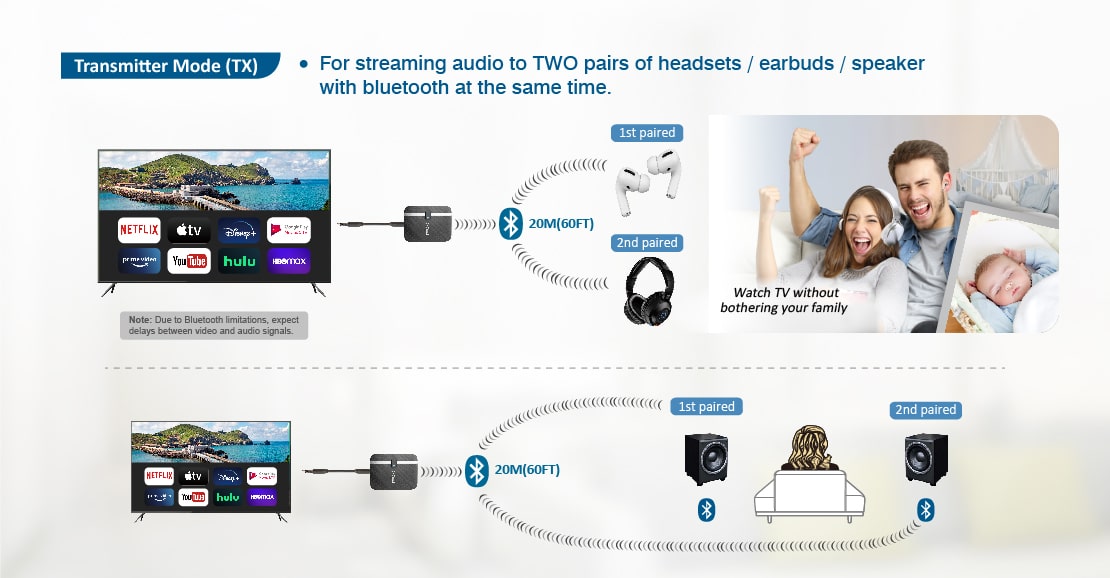

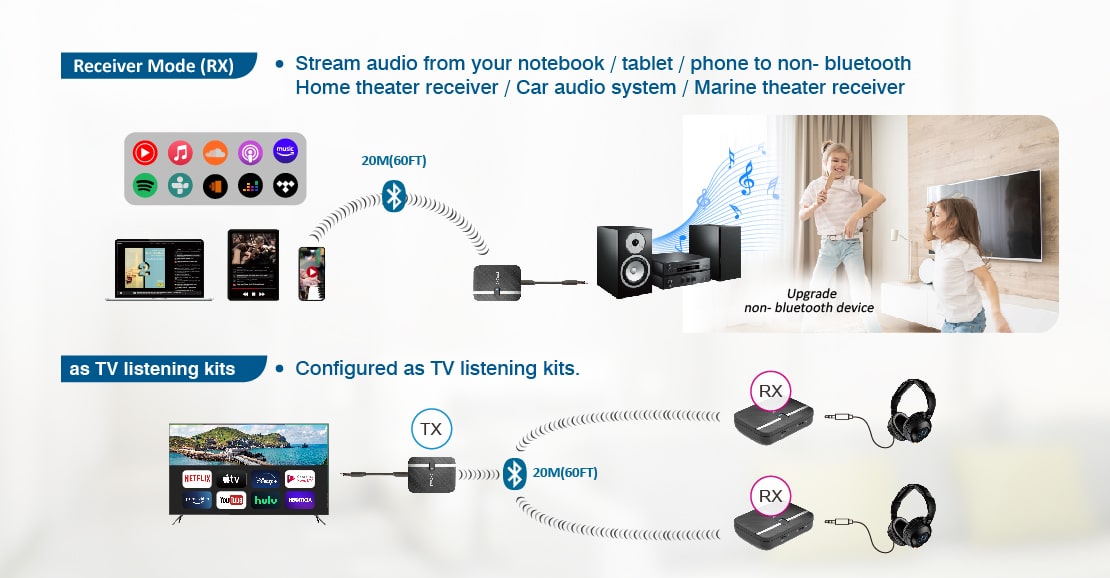

Diagram
