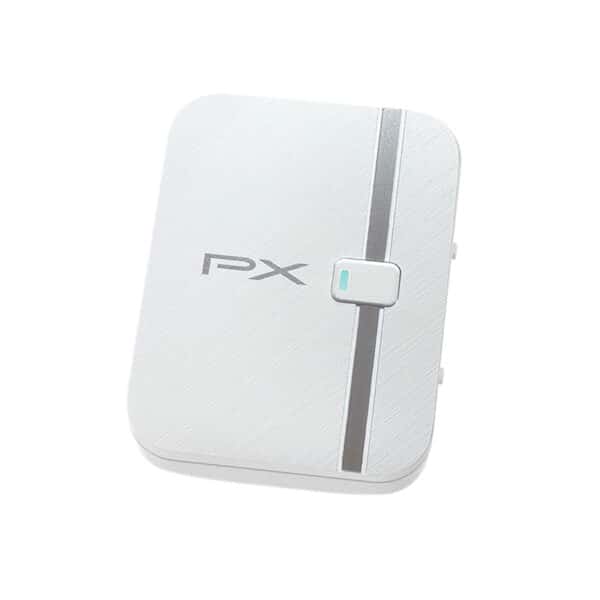

BRX-5300A | Bluetooth audio transmitter and receiver.
Our Bluetooth transmitter and receiver includes below specification:
• Dual modes: Transmitter and receiver
• Supports up two headphones / speakers simultaneously
• Built-in rechargeable 280mAH battery
– TX mode: 16 hours operation, suitable for long flight or high speed train.
– RX mode: 12 hours operation, suitable for long distance driving.
• 3 powering modes: Battery, Type C, Lightning. For operation, it can be used while charging at the same time.
• H/L switch for TX mode: Users can select the proper audio listening experience.
• Power Class 1: Longer connection distance up to 20-30m. (66-100 ft.)
• Holds up to 2 paired devices in memory for both TX & RX mode. The original pairing memory will not be cleared after a mode switching.
Overview
| Description | Bluetooth® audio transmitter and receiver. Lightning and USB-C charging supported. |
BRX-5300A is a wireless Bluetooth® audio transmitter and receiver 2 in 1 Bluetooth® device with built-in lithium battery. It can be used as a portable receiver for travelling, camping, driving etc. When it is used as a transmitter, you can connect to TV, iPod, Mp3 player to share the music.
Ideal to use with noise-cancelling headphone, Airpods to help reduce the uncomfortable background noise on an aircraft.
The Bluetooth transmitter and receiver, BRX-5300A can be charged via lightning port or USB-C port. The operation time for transmitter mode is approximately 16 hours, and the receiver mode is approximately 12 hours. With specially designed level switch, users can adjust the input level to optimize the audio in transmitter mode, allowing a more comfortable listening experience on the headphone.
※ While we always strive to ensure all website content and product information is current, Trans Electric reserves the right to change specifications and housing design without notice. Please contact with Trans sales for more detail.
※ AIRPODS is a trademark of APPLE INC
-
Airplane Use
Your next favorite travel companion.
-
Outdoor Use
Upgrade non-bluetooth device.
-
Indoor Use
Watch TV without bothering your family.
-

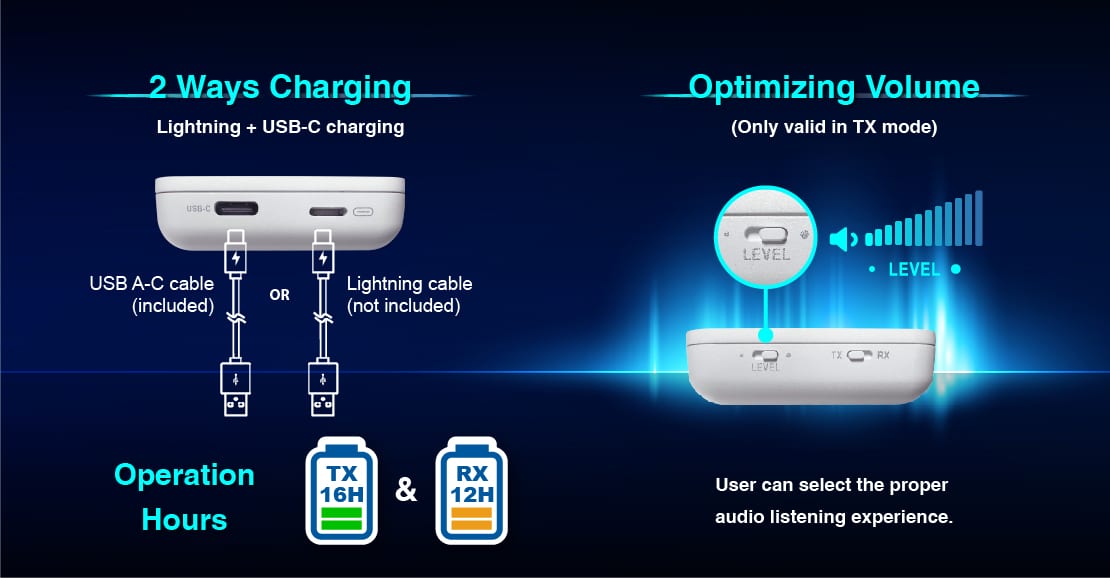

2 Ways Charging & Optimizing Volume
- The Bluetooth transmitter and receiver, BRX-5300A have two ports. It can be charged by USB-C or lightning cable.
- Optimizing voluem- only vaild in TX mode – Users can select the proper audio listening experience.
-
Frequencies between 20Hz to 20KHz
Low interference and high sound quality.
-

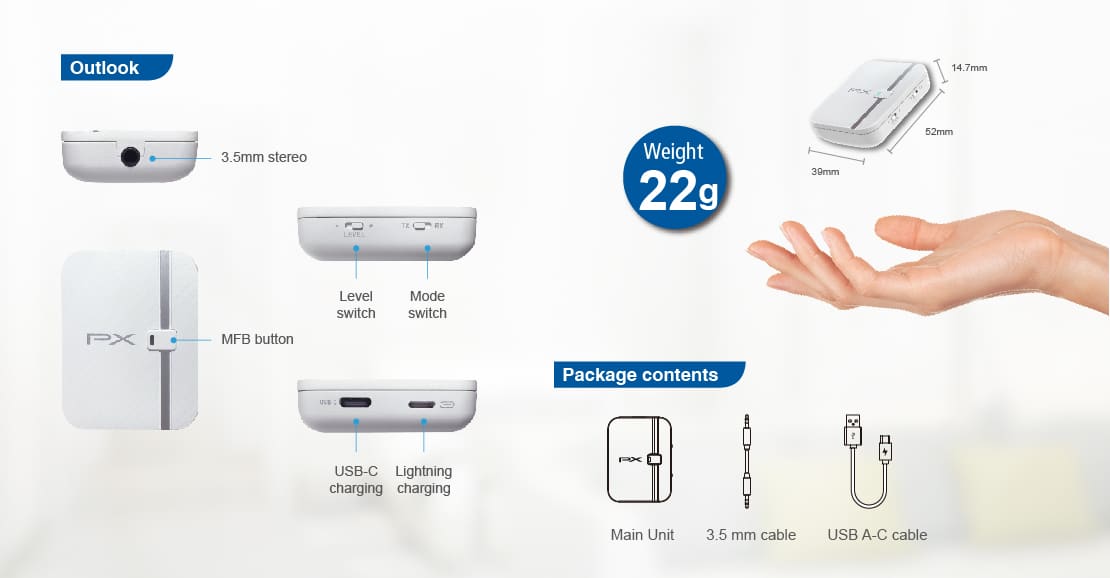

Outlook & Weight & Package contents
-

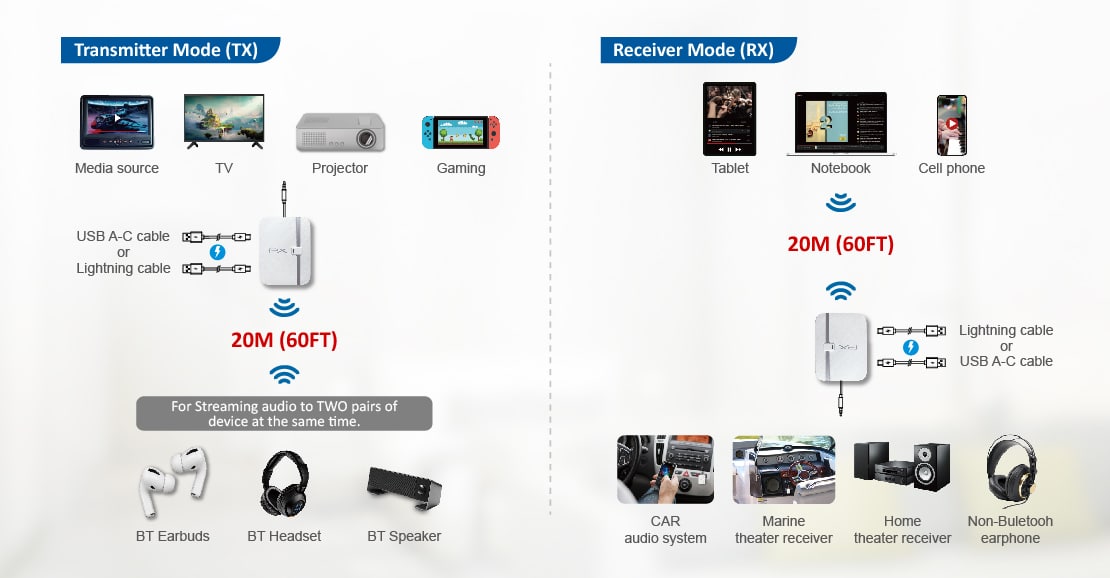

Transmitter Mode & Receiver Mode
- Transmitter mode : for streaming audio to two pairs of device at the same time.
- Stream audio from your phone / tablet to non-bluetooth home theater receiver / car audio system / marine theater receiver.
-

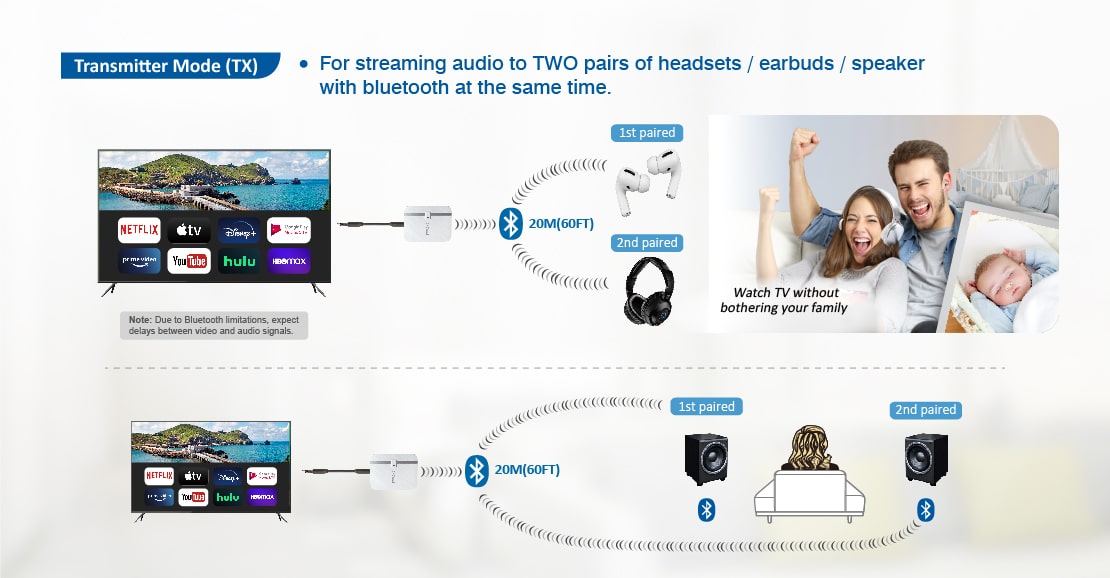

Application of Transmitter Mode
For streaming audio to two pairs of headsets / earbuds / speaker with bluetooth at the same time.
-

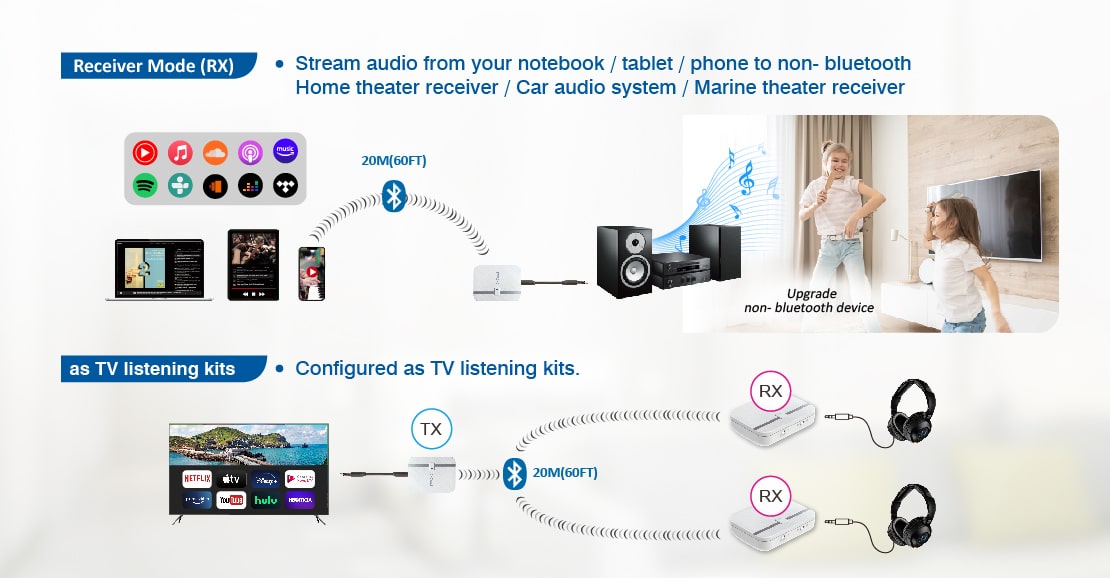

Application of Receiver Mode
Stream audio from your notebook / tablet / phone to non- bluetooth home theater receiver / car audio system / marine theater receiver.
Features
Feature of Bluetooth audio transmitter and receiver
• Dual modes: Transmitter and receiver
• Supports up two headphones / speakers simultaneously
• Built-in rechargeable 280mAH battery
– TX mode: 16 hours operation, suitable for long flight or high speed train.
– RX mode: 12 hours operation, suitable for long distance driving.
• 3 powering modes: Battery, Type C, Lightning. For operation, it can be used while charging at the same time.
• H/L switch for TX mode: Users can select the proper audio listening experience.
• Power Class 1: Longer connection distance up to 20-30m. (66-100 ft.)
• Holds up to 2 paired devices in memory for both TX & RX mode. The original pairing memory will not be cleared after a mode switching.
Specification
Specification of Bluetooth audio transmitter and receiver
• Bluetooth® version: 5.3
• Bluetooth® power: Class 1
• Input connector: 3.5mm stereo, type C female, lightning female
• SNR > 80dB
• THD < 1%
• Channel separation > 70dB
• Analogue input level: 1.8 / 0.9V switchable
• Analogue output level: 0.9Vrms
• Batteries power, type C, lightning powering
Diagram
Diagram of Bluetooth audio transmitter and receiver
