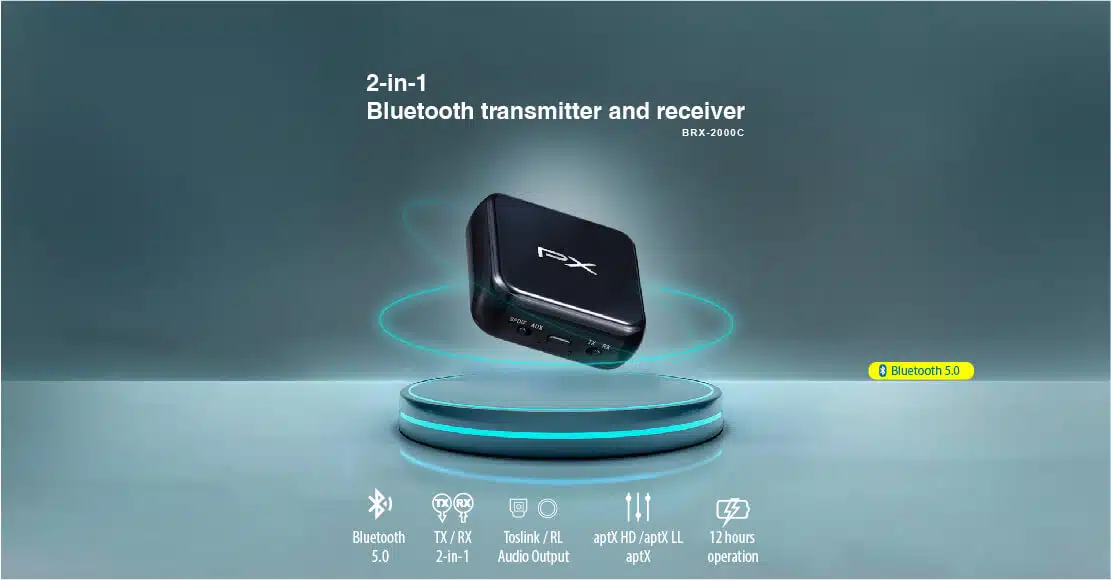

BRX-2000C | Bluetooth transmitter and receiver. aptXHD & aptX LL

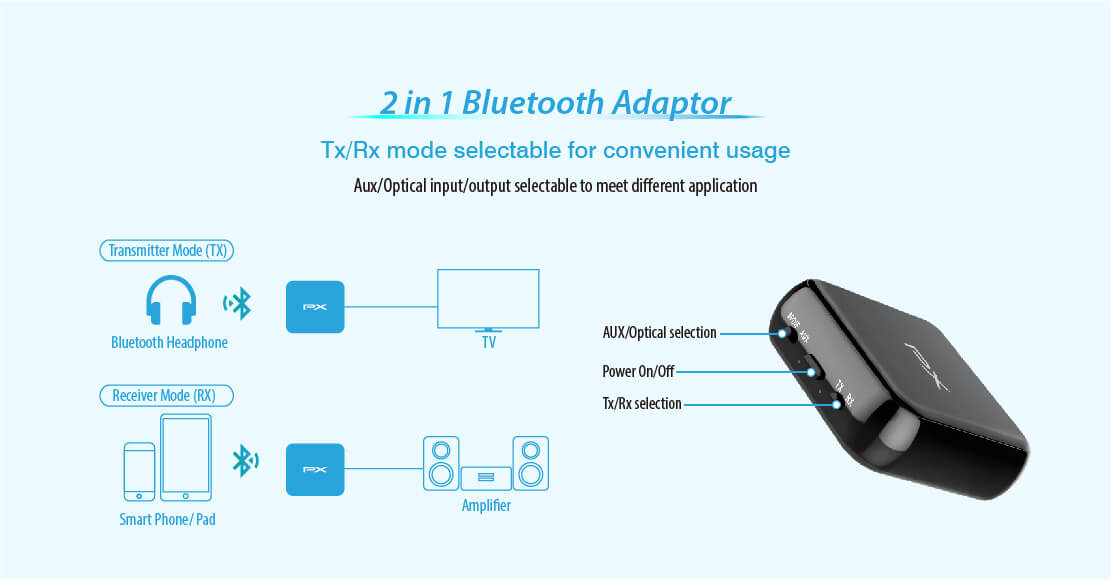

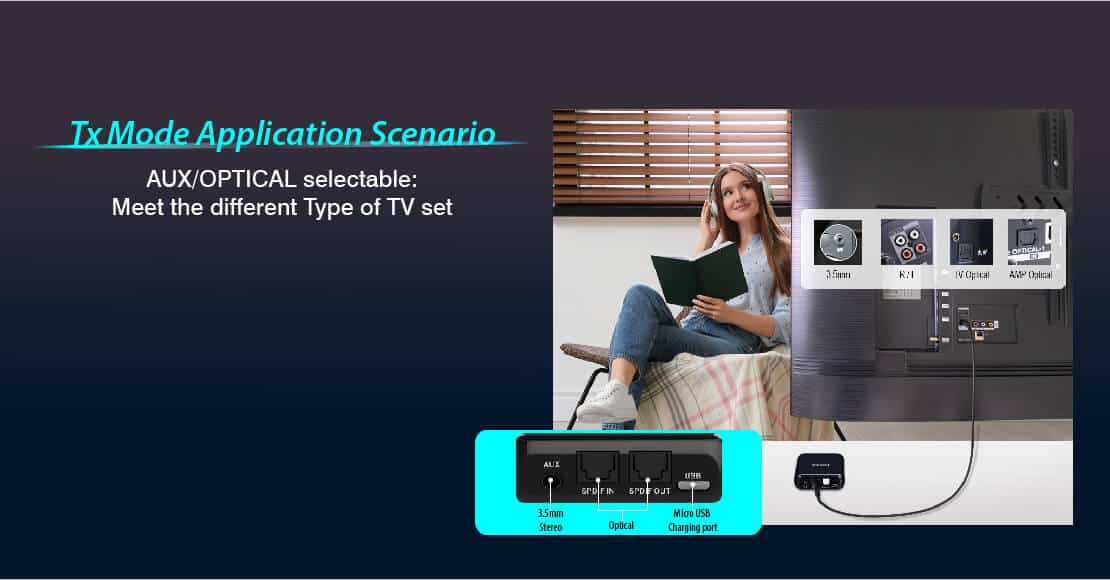

• Supports dual modes: TX mode for TV audio sender; RX mode for music receiver
• TX mode: 1→ 2 connection can stream the same audio to 2 Bluetooth® headsets.
• Wide supported for multiple audio input and output devices. Optical audio and 3.5mm Aux
• aptXHD provides high resolution of 48KHz@24bits audio.
• aptX LL: Low latency < 42ms delivers sound in sync
• SNR > 80 dB
• 33 ft. (10 m.) working range
• Lithium batteries: 240mAH (operation hours: 12 hours)

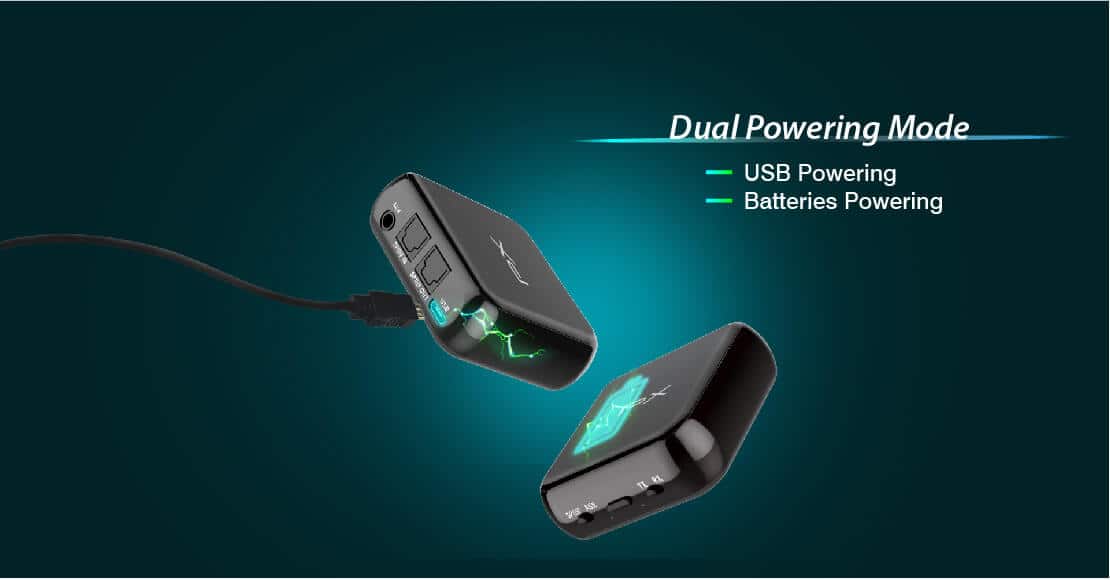

• USB powering supported
Overview
| Description | Bluetooth® transmitter and receiver with aptXHD / aptX LL |

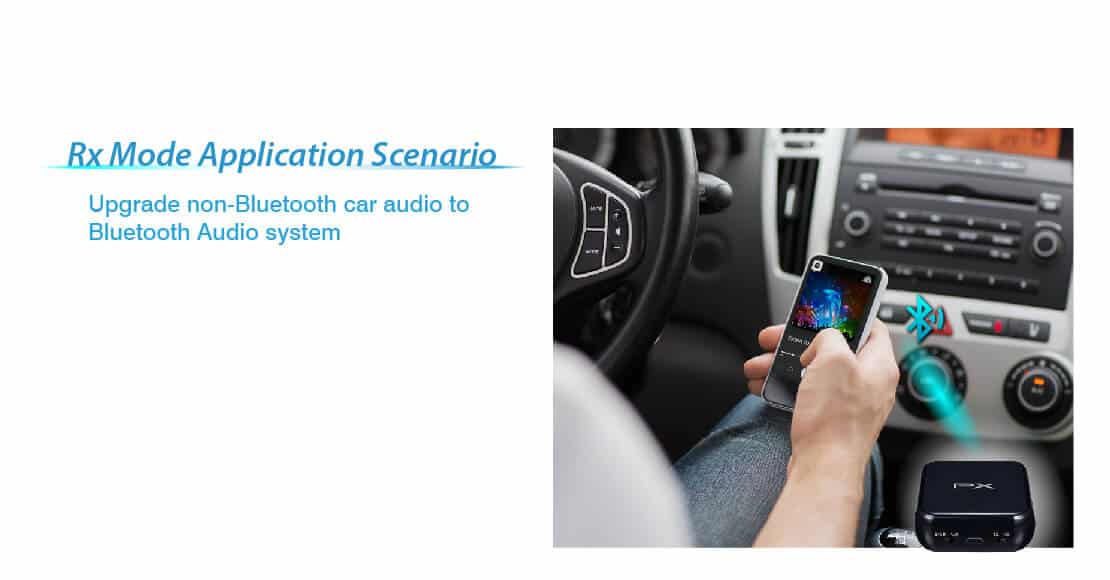

BRX-2000C is a receiver and transmitter 2 in 1 Bluetooth® device with built-in lithium batteries. It can be used as a portable receiver while camping and driving. As for transmitter mode, you can connect BRX-2000C to your iPod, MP3 player to share the music on those devices.
Features
• Supports dual modes: TX mode for TV audio sender; RX mode for music receiver
• TX mode: 1→ 2 connection can stream the same audio to 2 Bluetooth® headsets.
• Wide supported for multiple audio input and output devices. Optical audio and 3.5mm Aux
• aptXHD provides high resolution of 48KHz@24bits audio.
• aptX LL: Low latency < 42ms delivers sound in sync
• SNR > 80 dB
• 33 ft. (10 m.) working range
• Lithium batteries: 240mAH (operation hours: 12 hours)
• USB powering supported

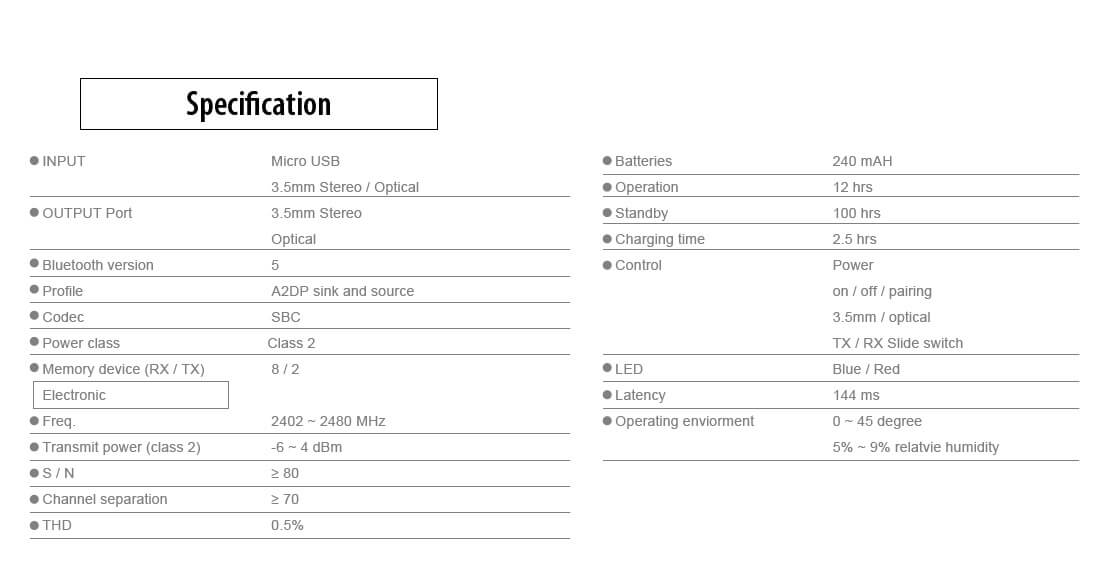

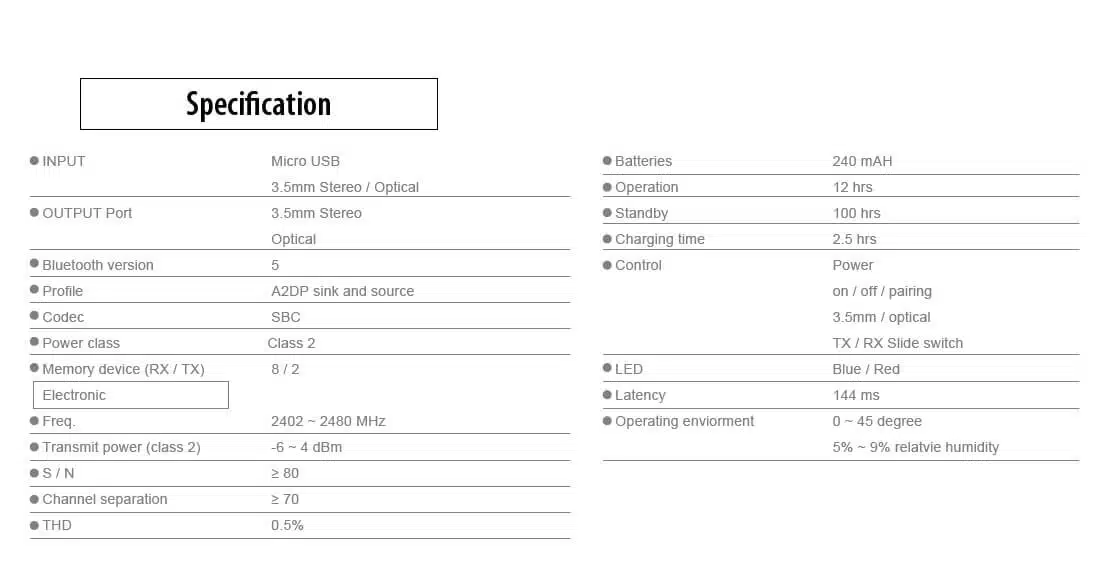

Specification
• Bluetooth® version: 5.0
• Bluetooth® power: Class 2
• Output connector: 3.5mm stereo, optical
• Input connector: 3.5mm stereo, optical, USB female
• SNR > 80dB
• THD < 0.5%
• Channel separation > 75dB
• Analogue ouput level: 0.4V
• Analogue input level: 0.4V
• 240mAH lithium polymer batteries

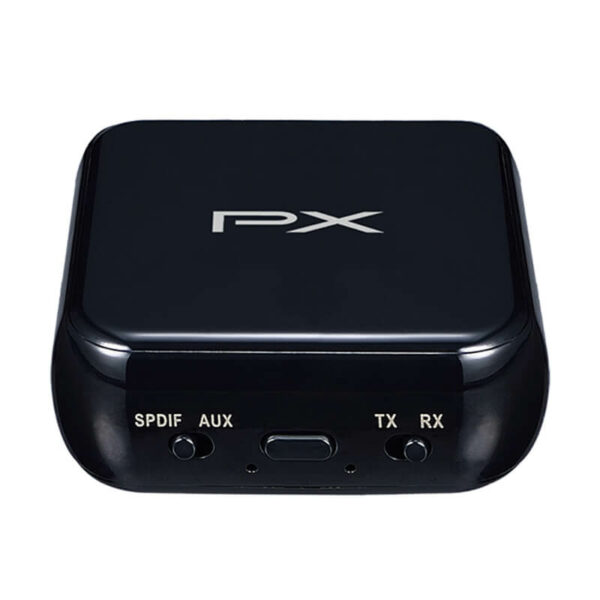

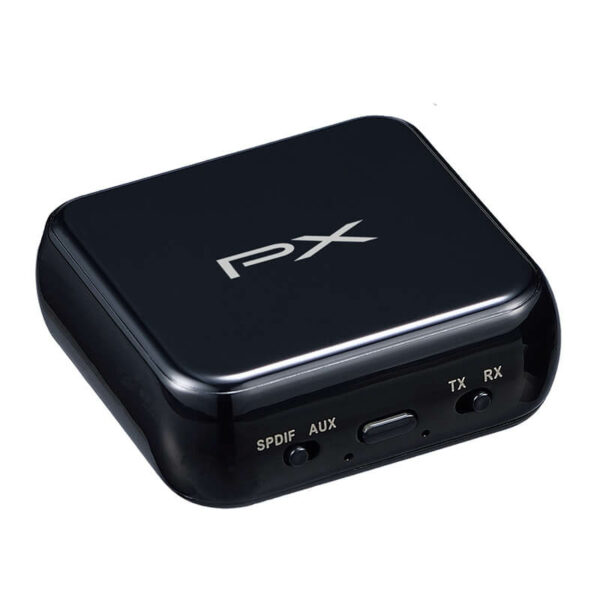

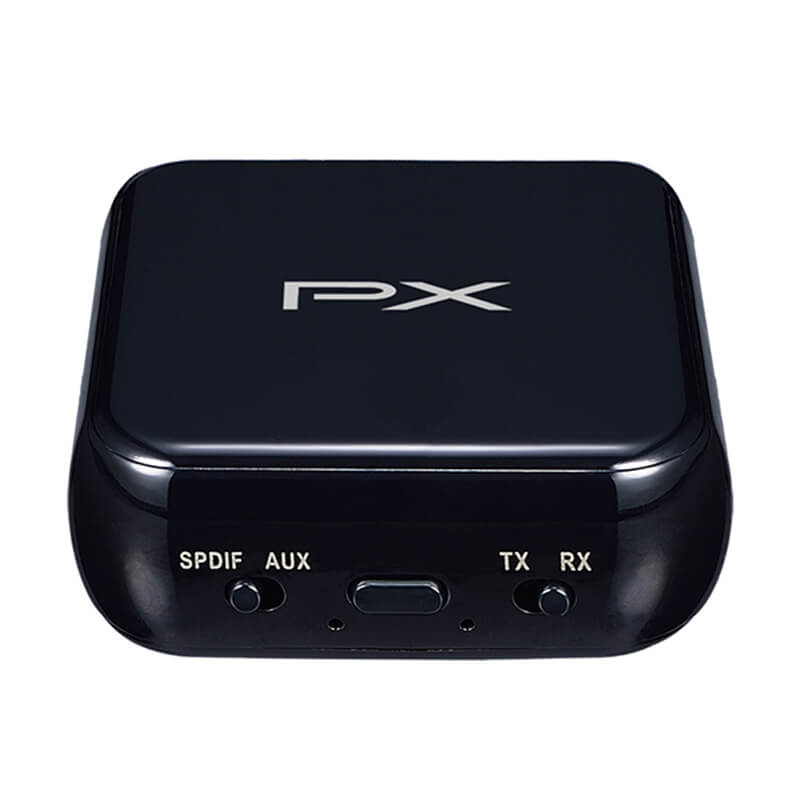

• TX / RX switch
• 3.5 / optical switch

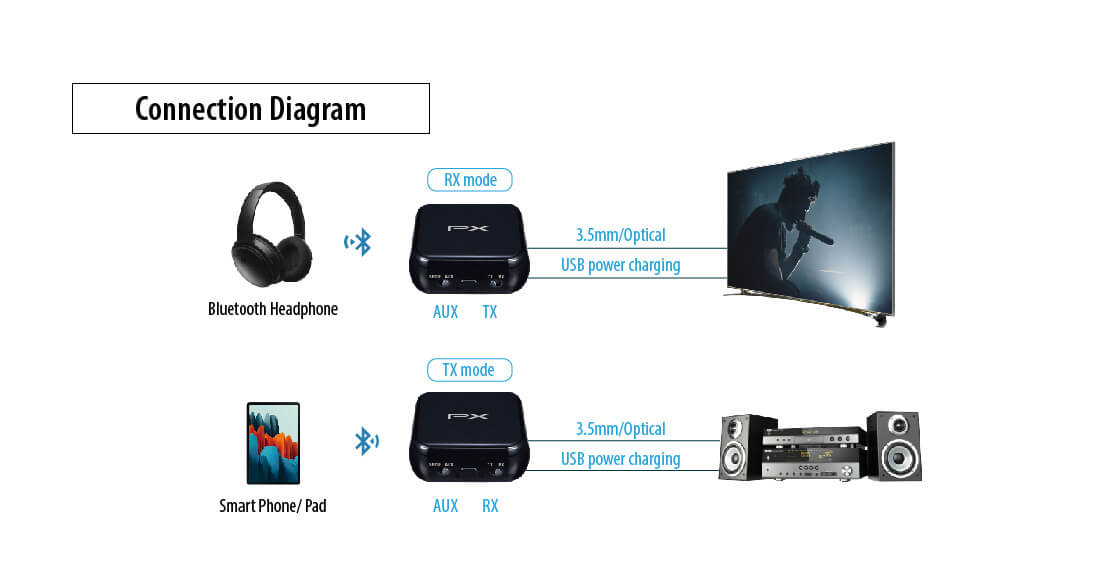

Diagram
